B19

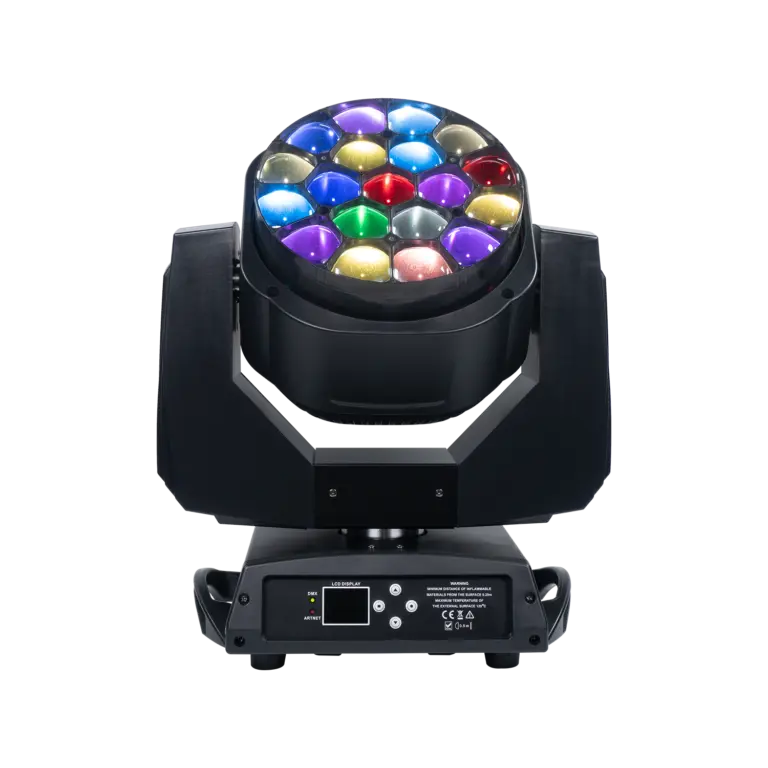

19 x 15W bee eye moving head

B19 is a hybrid moving head stage light with beam, wash and kaleido effects. Its zoomable range from 4° to 60°, from narrow beam to wide wash effect. The fixture is designed for for concerts, TV shows, auto shows, theatre, sport venues.

Key Features

  • 19 x 15Watt RGBW LED source
  • Individual control of each LEDs, unique honeycomb designed lens
  • Rotating front lens without limitation for vortex effects
  • Operating modes: wash, beam, FX effects
  • Motorized zoom range from 4° - 60°
  • Accurate positioning
  • LCD display, user friendly operation menu
  • DMX512, auto program, sound control
  • Display reverse 180°
  • Powercon in & out connection
Datasheet

Specifications


PHYSICAL
Length: 415 mm (16.3 in.)
Width: 275 mm (10.8 in.)
Height: 425 mm (16.7 in.)
Net Weight: 15 kg (33 lb.)

DYNAMIC EFFECTS
Color mixing: RGBW
Zoom: motorized zoom
Individual control of each LEDs
Pan: 540°
Tilt: 270°
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and
action, random strobe

CONTROL AND PROGRAMMING
Control options: DMX, auto, sound, mas-ter-slave
DMX channels: 21/23/35/78/92/97/99
DMX address setting: Control panel with LCD display
DMX compliance: USITT DMX512-A

OPTICS
Light source: 19 x 15Watt LEDs
Color temperature: adjustable
Zoom: 4° - 60° motorized zoom
LED lifetime: 50,000 hours avg.*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming

CONSTRUCTION
Housing: Engineering grade plastic
Color: Black
Environment: IP20 indoor use

INSTALLATION
Mounting: 2 x Omega brackets
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.3 m (1.0 ft.)
Minimum distance to illuminated surfaces: 3m (9.8 ft.)

CONNECTIONS
AC power in, thru: PowerCon in & out
DMX data in/thru: 3-Pin XLR in & out(5-Pin optional)

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz: 285 Watt max.
Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40°C (104° F)
Minimum ambient temperature (Ta min.): 5° C(41° F)

SHIPPING INFORMATION
In carton:
Carton dimensions: 470 x 370 x 510 mm (18.5 x 14.6 x 30 in.)
Gross weight: 19 kg (41.8 lbs.)

In flightcase(2-way):
Case dimensions: 940 x 440 x 710 mm (37 x 17.3 x 27.9 in.)
Gross weight: 60 kg (132.2 lbs.)

*Specifications subject to change without notice.*
