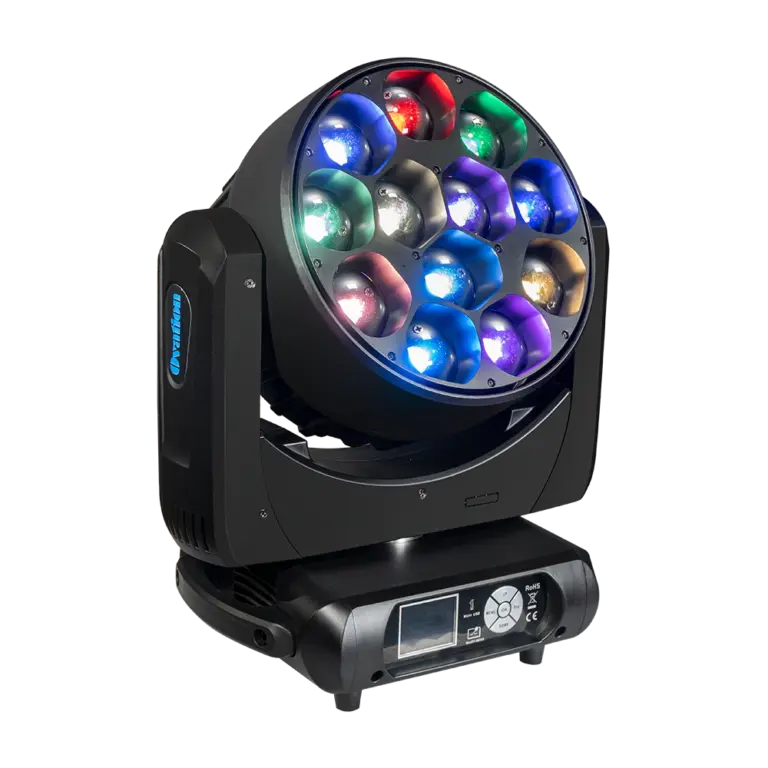

Mainforce 1240

12 x 40W moving head beam & wash

Mainforce 1240 is a moving head light with zoom function researched and developed basing on 12 x 40W LED RGBW moving head of the present market. Features very quick response speed, zoom range 8° – 50°, color macros makes the color mixing very even, it can turn on a single flow dynamic effect during the same time.

Key features

  • 12 x 40W RGBW 4-in-1 LED
  • Color macros function
  • Studio mode(fan mode) for quiet operation
  • High efficient optical lens
  • LED rainbow effect
  • Strong beam effect, flat and nice wash effect
  • Individual control of each LED
  • 8° - 50° motorized zoom
  • Super fast head moving
  • Accurate positioning
  • LCD color display
  • Position auto correction
  • Overheating protection
Datasheet
Order code: Categories: Moving heads, Professional stage

Specifications

Physical

  • Length: 390 mm (15.3 in.)
  • Width: 270 mm (10.6 in.)
  • Height: 460 mm (18.1 in.)
  • Net Weight: 14.2 kg (31.2 lb.)

Dynamic effects

  • Color mixing: RGBW
  • Zoom: motorized zoom
  • Individual control of each LED
  • Pan: 540°
  • Tilt: 270°
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, Auto, master-slave
  • DMX channels: 11/17/18/58
  • DMX address setting: Control panel with LCD display
  • DMX compliance: USITT DMX512-A

Optics

  • Light source: 12 x 40Watt LEDs
  • Color temperature: 2800K – 8500K
  • Zoom: 8° – 50° motorized zoom
  • LED lifetime: 50,000 hours avg.*
  • *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming

Construction

  • Housing: Engineering grade plastic
  • Color: Black
  • Environment: IP20 indoor use

Installation

  • Mounting: 2 x Omega brackets
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 2 m (6.6 ft.)

Connections

  • AC power in, thru: PowerCon in & out
  • DMX data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 360 W
  • Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air
  • Studio mode: available for silent operation
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)

Included parts

  • Two omega brackets with 1/4 turn fasteners
  • Safety cable
  • User manual

Optional parts

  • Clamp

*Specifications subject to change without notice.*
