C19

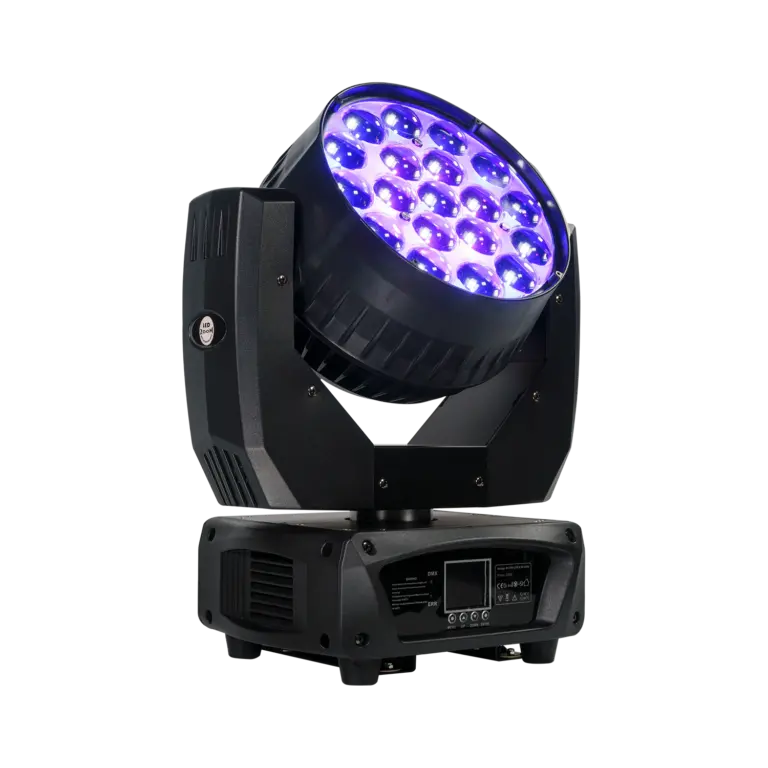

19 x 15W LED aura moving head zoom wash

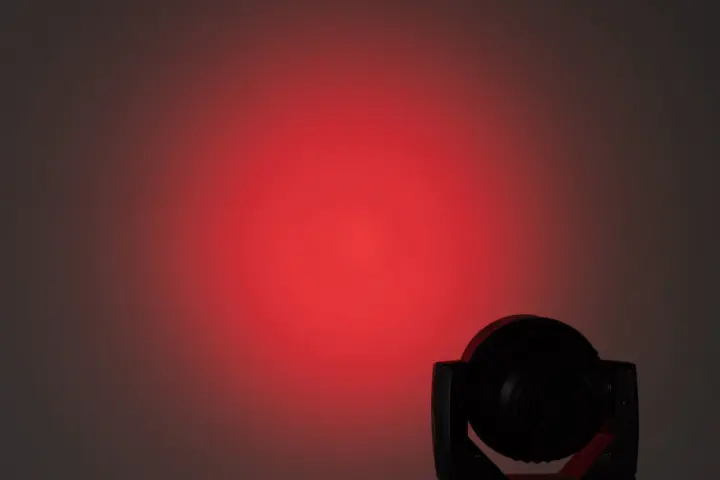

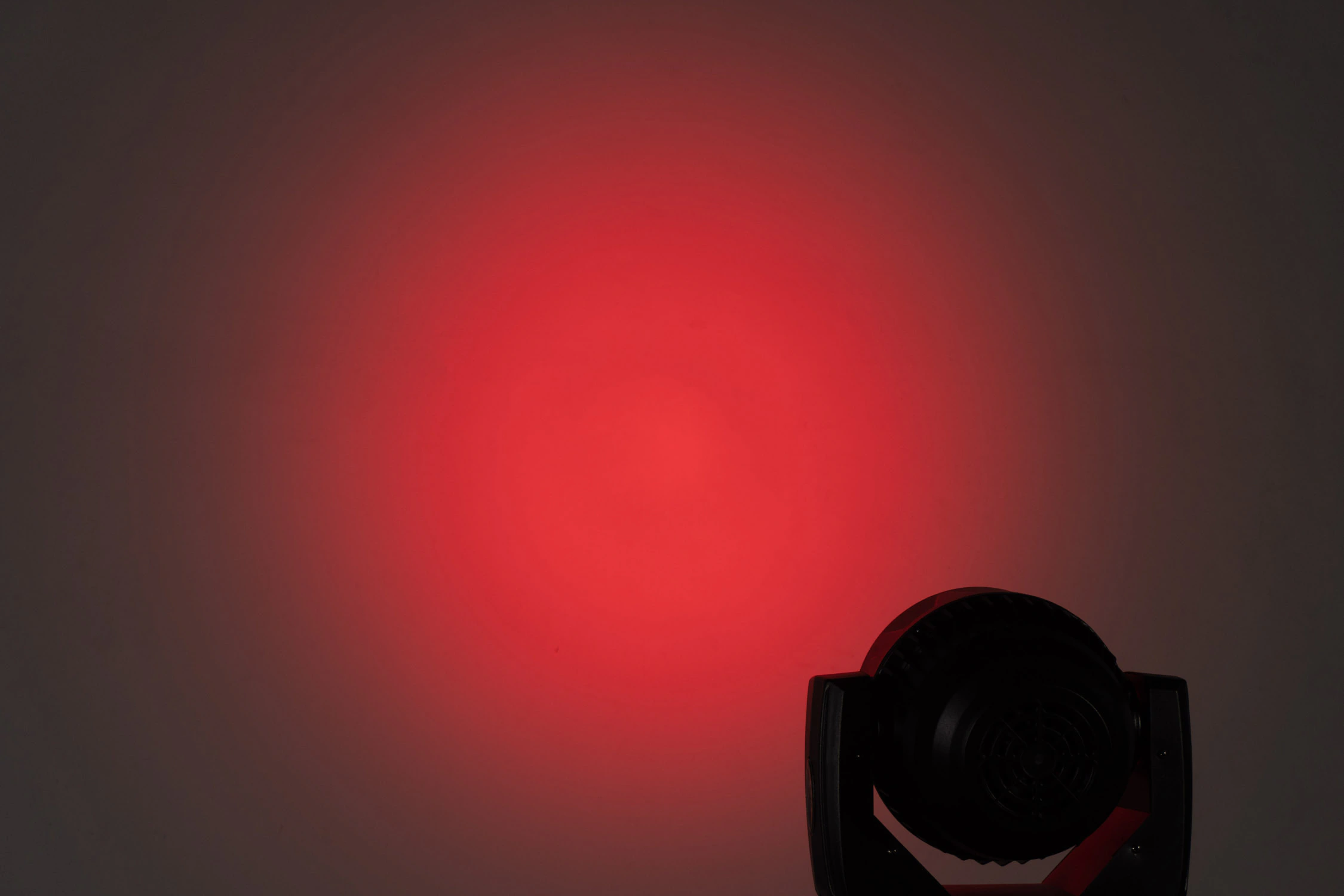

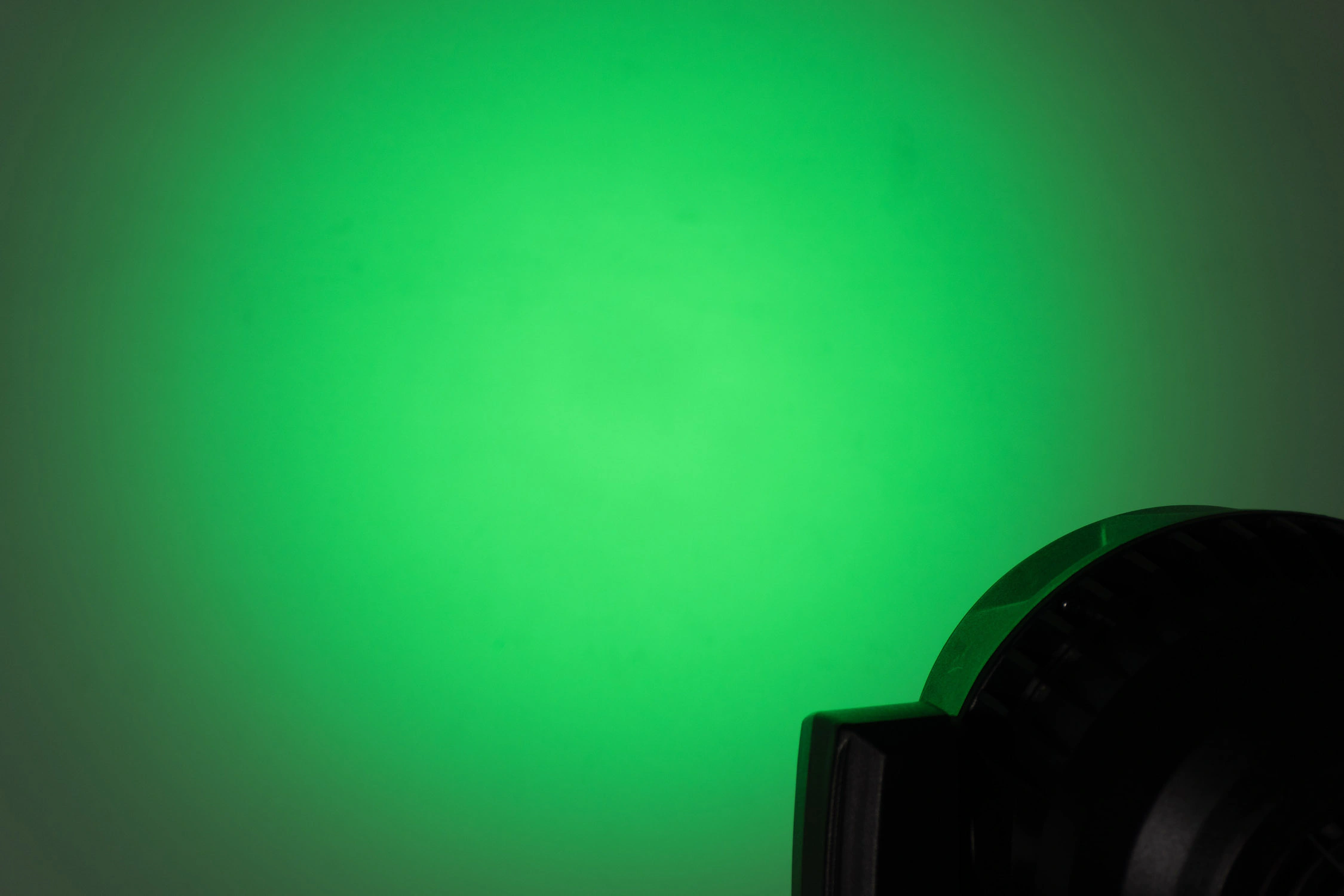

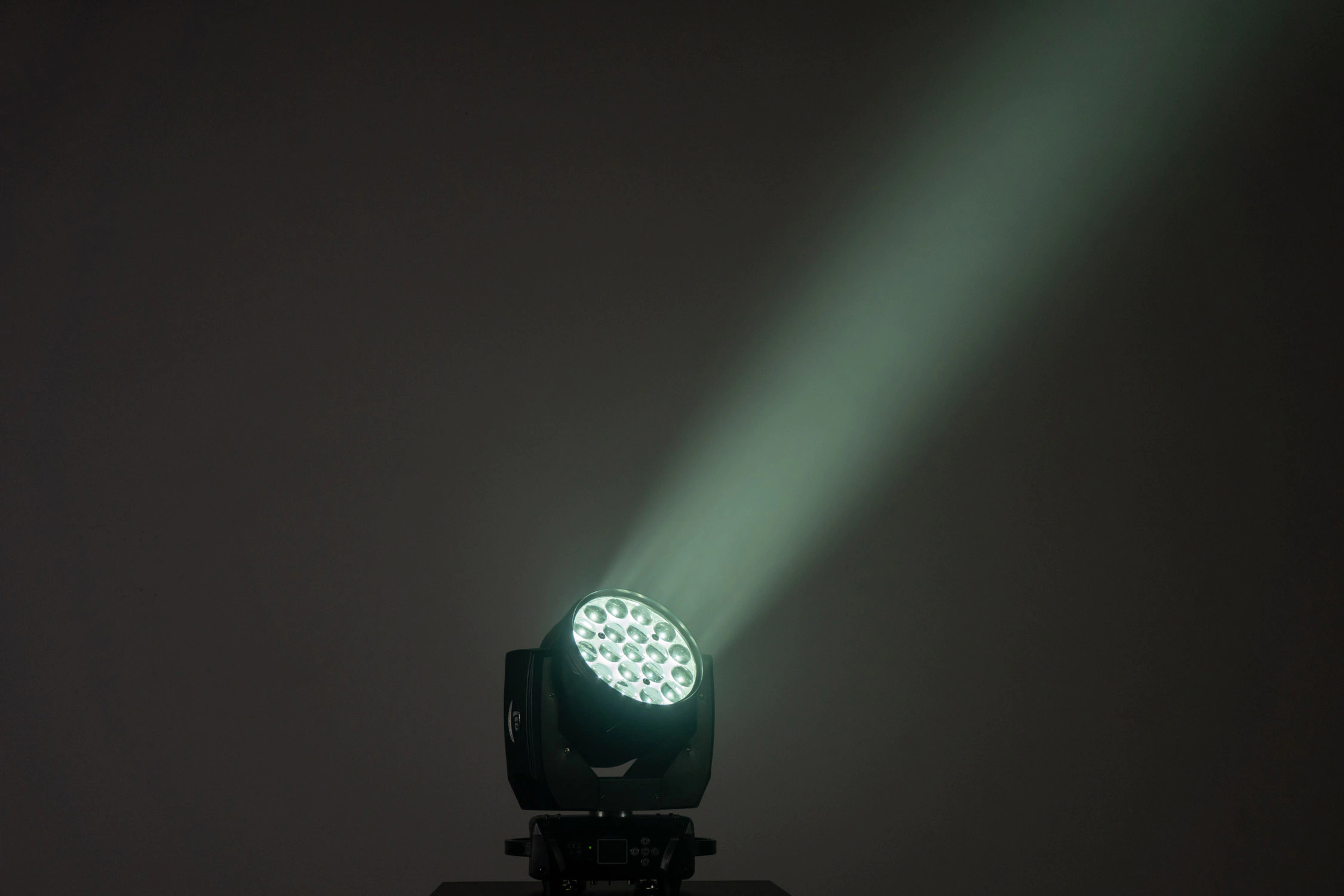

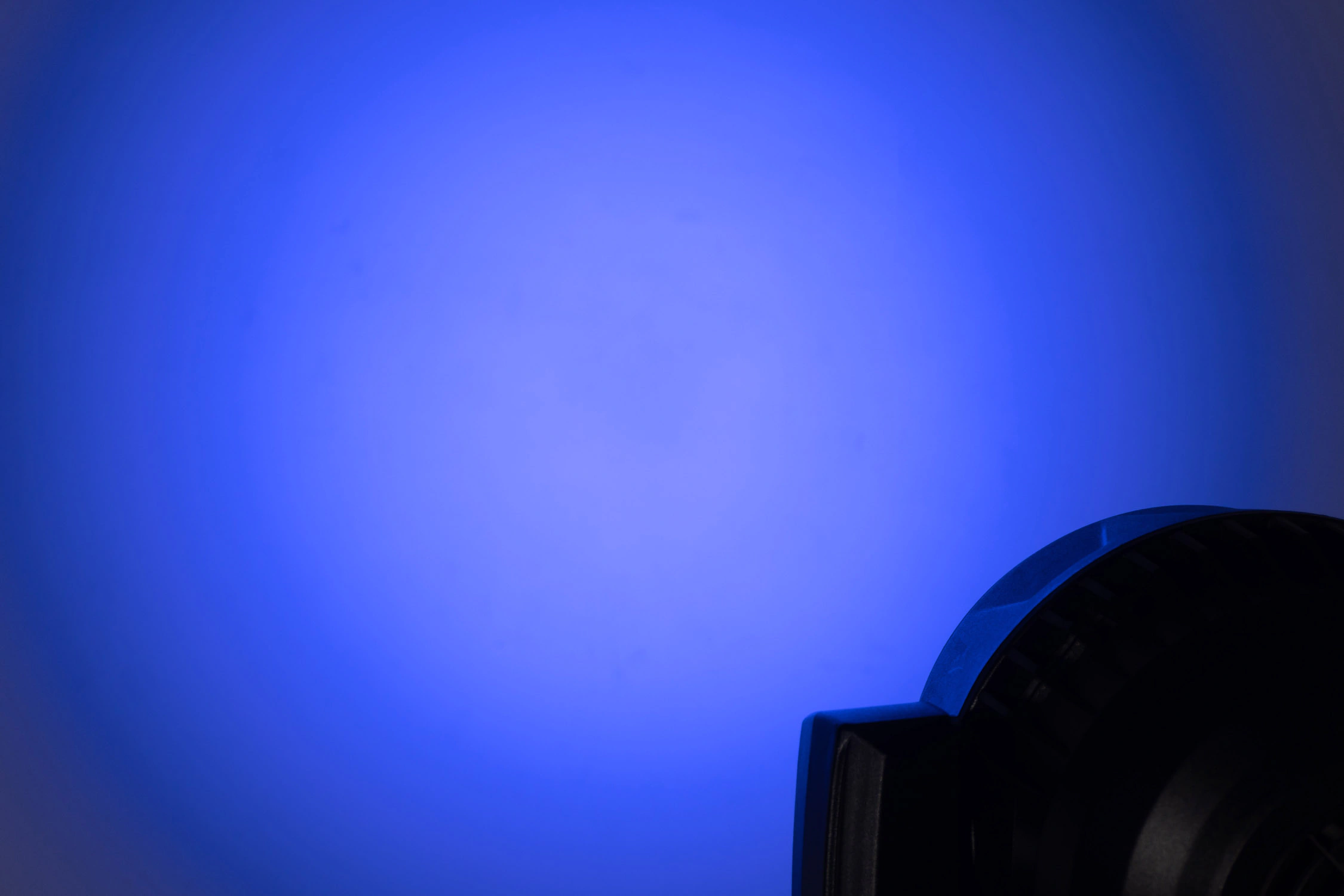

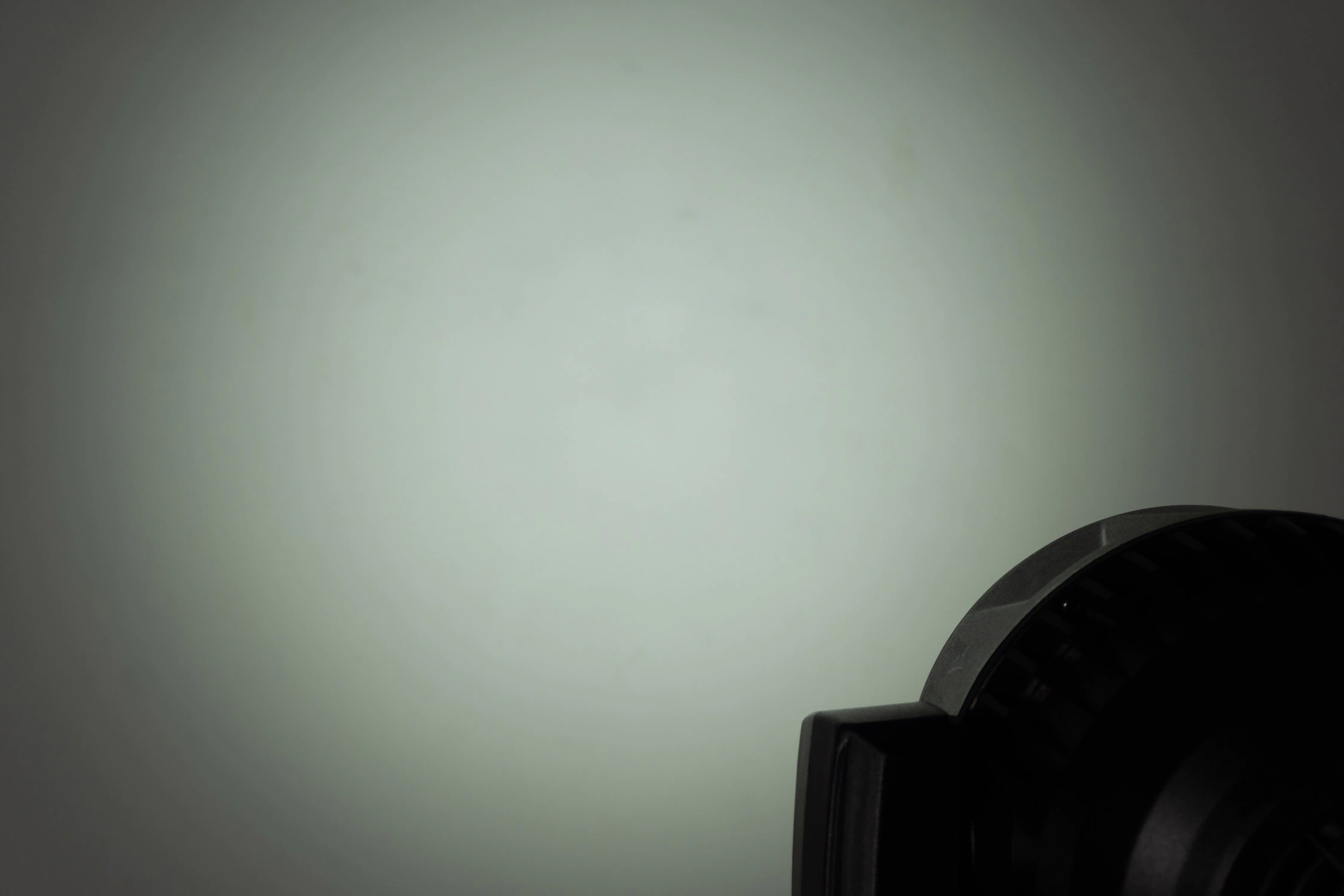

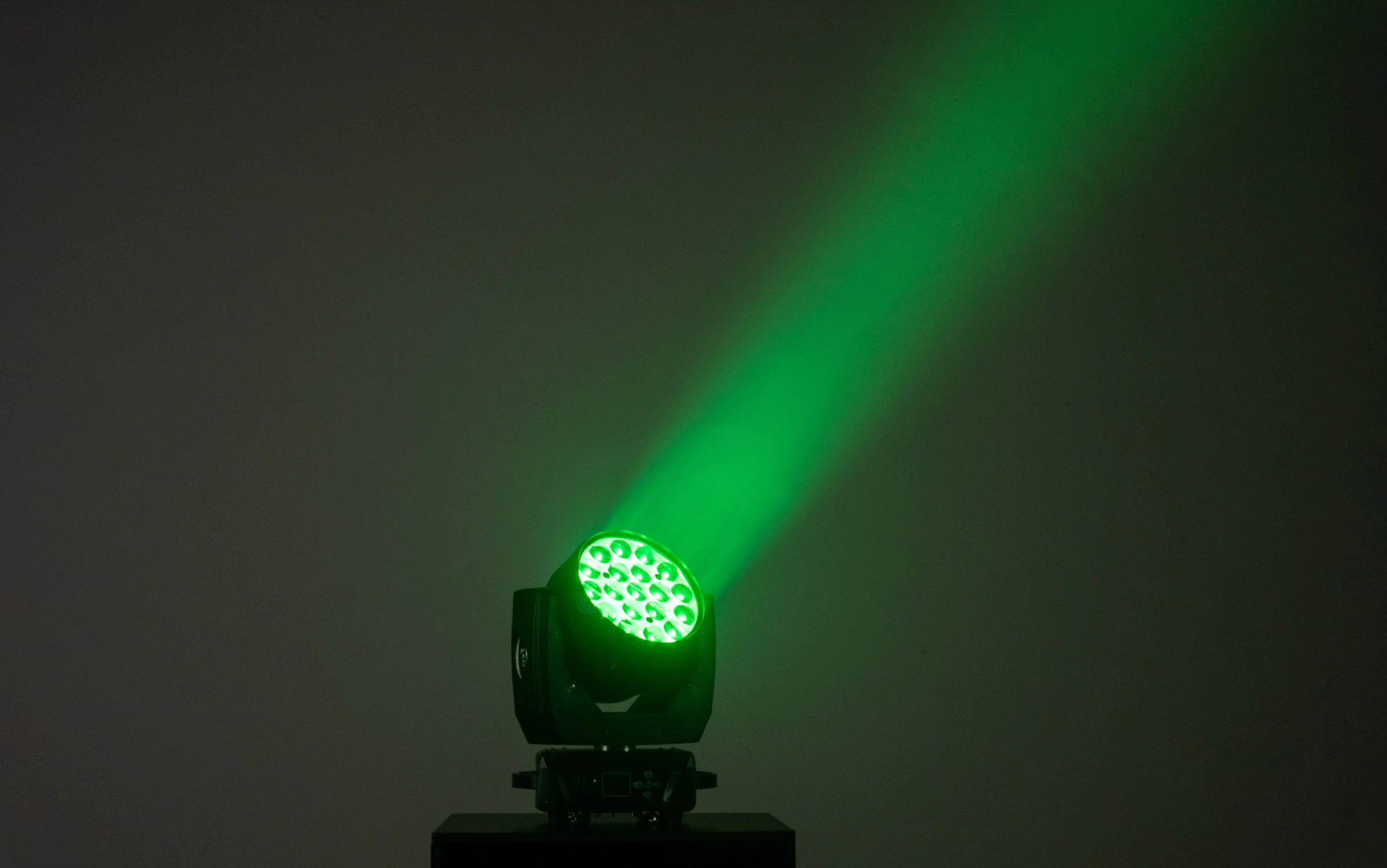

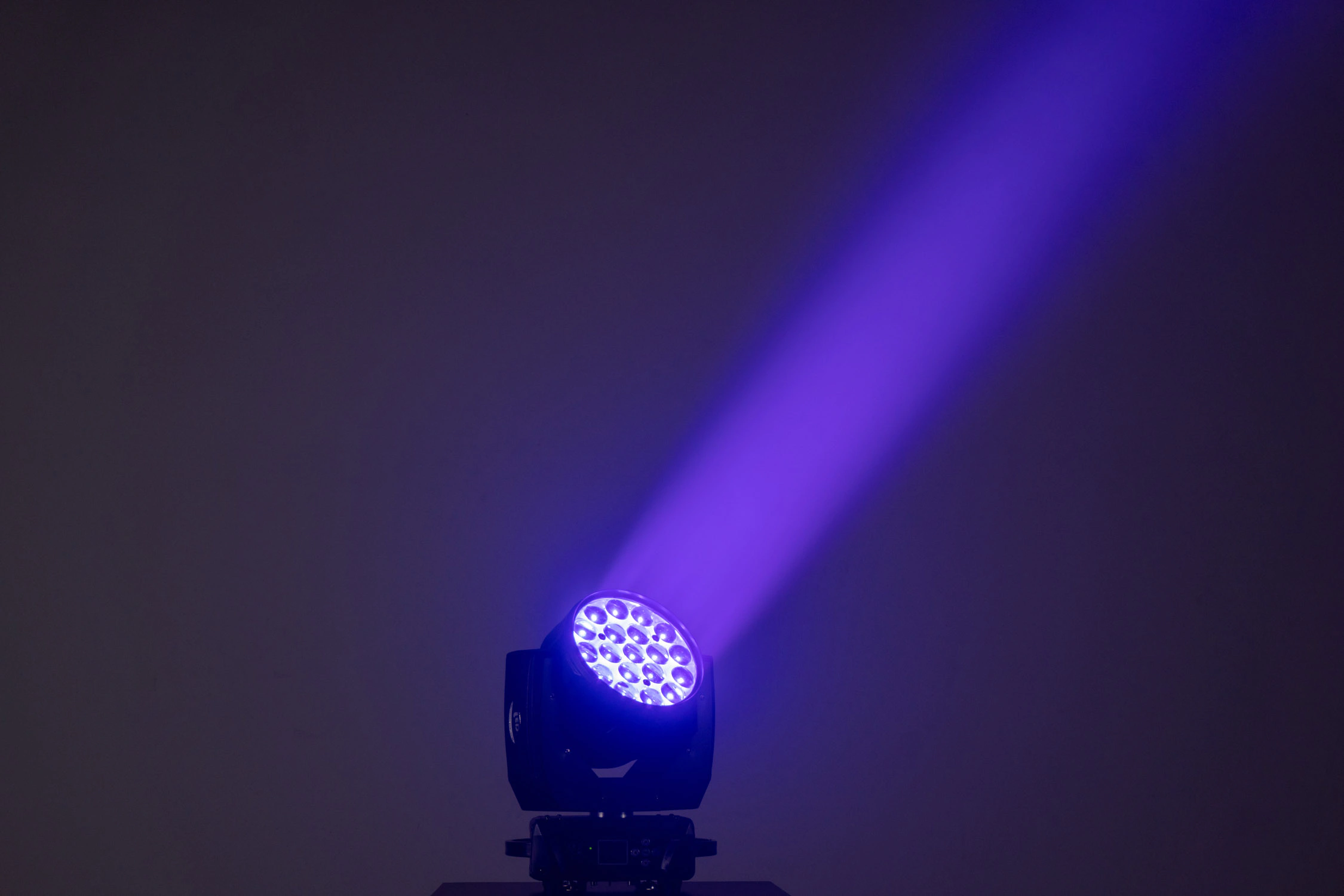

C19 is a high brightness LED moving head wash light powered by 19pcs and 15Watt LED chip. RGBW even color mixing. Motorized zoom range 8° – 50°. With DMX, Master-slave, Sound, Auto control available.

Key Features

  • 19 x 15Watt RGBW 4-in-1 LED
  • Flat and even RGBW color mixing
  • Motorized zoom 8° – 50°
  • DMX, Auto, Master-slave, Sound control
  • Pan 540°, Tilt 270°, accurate positioning
  • Rapid pan & tilt movement
  • User friendly LCD display14
  • 10/15/21/37 DMX channels
Datasheet

Specifications


Electrical
Power supply: Electronic auto-ranging
Input voltage range: AC100-240V, 50/60Hz
Power consumption: 230W max. @230V

Lamp
Light source: 19 x 15Watt RGBW LED
Color mixing: RGBW 4-in-1
LED lifetime: 50,000 hours avg.
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Dynamic Effects
Dimming: 0 – 100% continuous dimming
Pan: 540°(8 bit/16 bit)
Tilt: 270°(8 bit/16 bit)
Zoom range: 8° – 50° motorized zoom
Strobe: 20 times/sec, variable & random strobe

Control and Programming
Control mode: DMX, Auto program, Master-slave, Sound activate
DMX channels: 10/15/21/37
Addressing and setting: Control panel with LCD display and control buttons

Connection
Power connection: PowerCon in
Signal connection: 3-pin XLR in & out

Construction
Housing: Engineering grade plastic
Colour: Black
Environment: IP20

Thermal
Cooling: Forced ventilation with fans
Maximum ambient temperature: 40° C (104° F)
Minimum ambient temperature: 5° C (41° F)

Physical
Size: 300 x 200 x 380mm(11.8 x 7.9 x 14.9in)
Package size: 550 x 390 x 490mm(21.6 x 15.4 x 19.3in)
N.W.: 8.3kg(18.3lb)
G.W.: 9.5kg(20.9lb)

Accessories
Included: PowerCon cable, Omega bracket, Safety rope, Manual
Optional: Clamp

*Specifications subject to change without notice.*

Download


ItemTypeFileLanguageDownloadVersionUpdated
Leaflet - C19DatasheetpdfENDownload1.0Oct 8, 2022
Manual - C19ManualpdfENDownload1.0Oct 8, 2022
