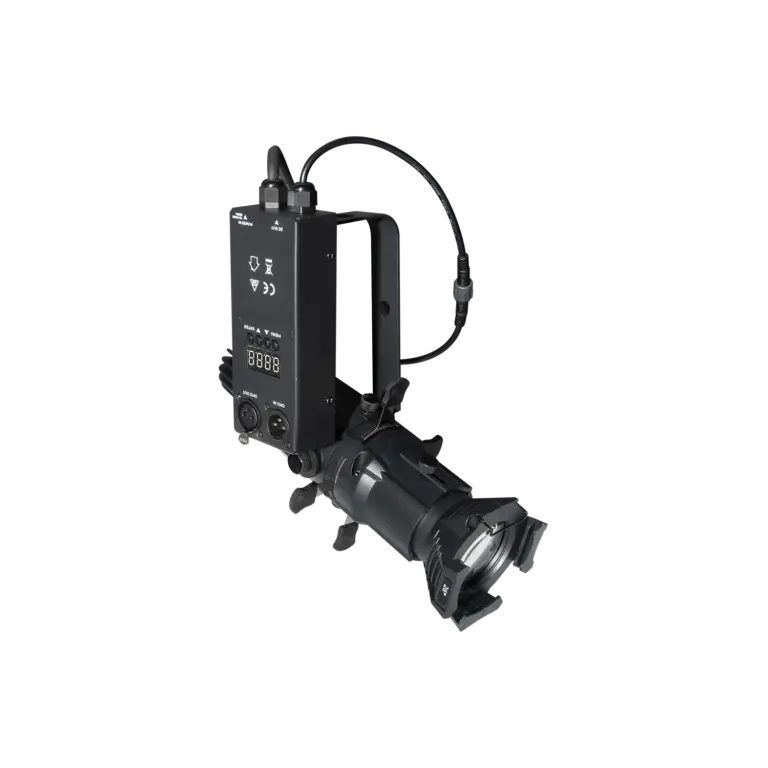

Mini Leko 20

20Watt LED ellipsoidal fixed lens for church, exhibition, art gallery

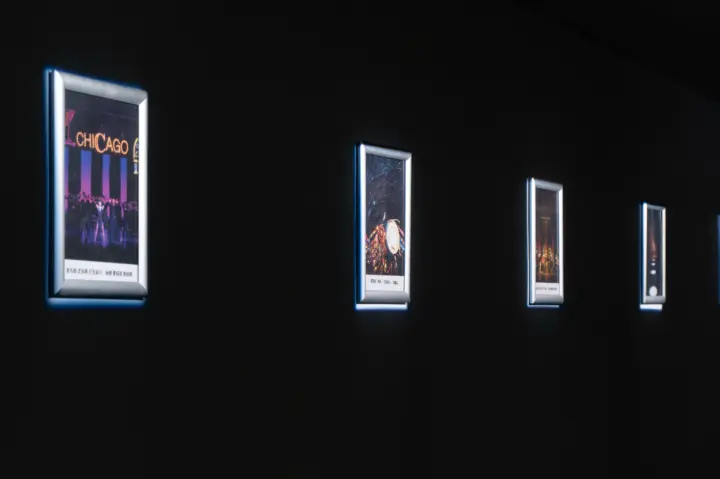

Mini Leko 20 is a tiny 20W COB LED profile spot. Die-casting housing, fan-free design. With 19°, 26°, 36°, 50° lens optional, and portable, track mount version selectable. It’s an idea product for art gallery, Museum, Shopping mall.

Compact design: Mini Leko 20 is super compact in size, and weight only 1.5kg.

Bright output: Thanks to its 20Watt COB LED, the fixture come with very efficient, even and bright output.

Color temperature: Fixture comes with a selectable color temperature of 3200K, 4000K or 5600K. Meet all your requirement for different applications.

Accurate color reproduction: High CRI over 92 and high TLCI, CQS assures perfect color reproduction. Best for art galleries, museums, restaurants, shops.

Smooth dimming: Mini Leko 20 comes with 1 channel mode and is smooth in dimming.

Durable body: The item is bult with die-casting aluminum. Good built quality and durable.

Key features

  • 20W COB LED, high lumen
  • 3200K, 4000K or 5600K color temperature
  • High CRI of 92
  • Die-casting aluminum housing, fan-free
  • 19°, 26°, 36°, 50° lens selectable
  • Smooth dimming, flicker free
  • Compact body, easy to set up
  • Track mount version selectable
  • Fresnel version selectable
Datasheet
Order code: Categories: LED ellipsoidal, Theatre lightsTags: Gallery light

Product performance

Specifications

Physical

  • Length: 309 mm (12.2 in.)
  • Width: 143 mm (5.6 in.)
  • Height: 105 mm (4.2 in.)
  • Net Weight: 1.5 kg (3.3 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 20W COB LED
  • Color temperature: 3,200K, 4,000K or 5,600K optional
  • Minimum LED lifetime: 50,000 hours
  • Fixed lens option: 18°, 26°, 36°, 50°

Photometric data

  • 3,200K 317lux @5m 26°
  • CRI (Color Rendering Index) : >92
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >94
  • TM-30 Rg (IES TM-30-15 Gamut Index): >102
  • TLCI (Television Lighting Consistency Index): >97
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black or white

Gobos & color frame

  • Gobo size: E size, OD 37.5mm, image area 28mm
  • Color frame size: 60 x 60mm (2.4 in. x 2.4 in.)

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in/thru: Dedicated power in
  • DMX & RDM data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 20 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Color frame
  • User manual

Optional parts

  • Mounting bracket
  • Gobo holder

*Specifications subject to change without notice.*

Accessories

  • Gel frame for Mini Profile 20 series

    Color frame Mini Profile 20

  • Gobo Holder for Mini Profile 20(optional)

    E sized gobo holder

Documents

Get a quote

Frequently asked questions

Yes, every unit have plug, and we’ll prepare according which type of plug you need.

Yes, you can. The Mini Leko 20 consist of LED engine, barrel, lens. The difference of degree is in the lens. If you need to replace, just purchase a different lens degree.

Yes, color frame is standard part, included in every delivery.

Gobo holder is optional part. If you need, please contact us for purchase.

Yes, we do have zoom version. Check Mini Profile 40Z.

Yes, we do have tunable version, our model name S20T.

Yes, the Mini Leko 20 is available in both black and white body.

Yes sure. Checkout our 40Watt version – X40. It’s just a little bit bigger but even brighter. They share same lens, barrel, colro frame, gobo holder.

Yes, it support DMX 512. Freely control the dimming via your DMX console.
