Mainforce 740

7 x 40W moving head beam & wash

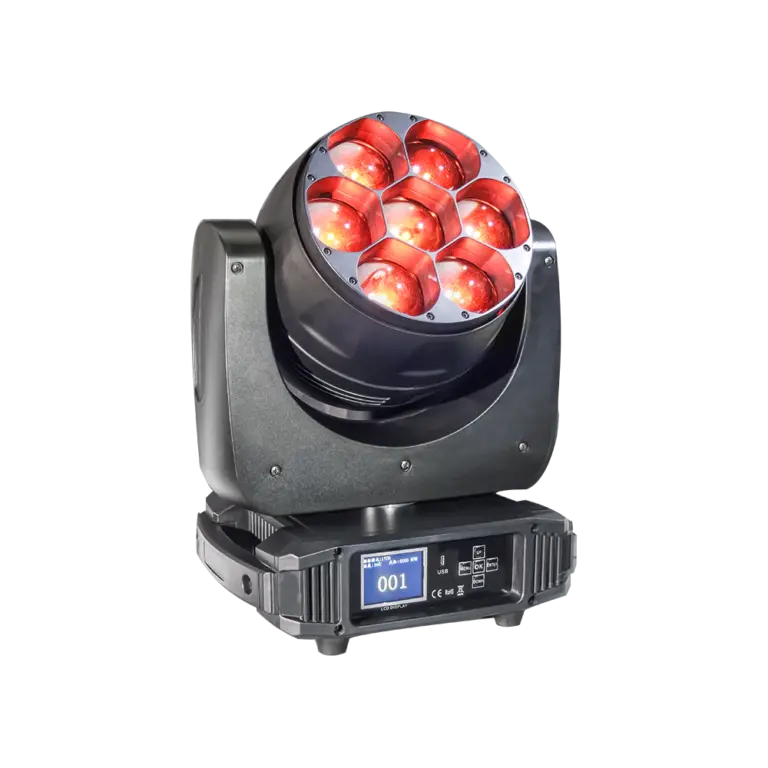

Mainforce 740 is a 7 x 40Watt powered LED moving head zoom light with RGBW color mixing. It features very quick response speed, narrow beam and even wash effect, 5-50° motorzied zoom. The light weight body makes it ideal for small to medium size venues. The fixture available in both pixel and non-pixel version.

Key Features

  • 7*40W RGBW 4-in-1 LED
  • Even color mixing
  • Narrow beam effect
  • 5° - 50° motorzied zoom
  • Super fast head moving
  • Accurate positioning
  • Video flicker free
  • Position auto correction
  • Compact body, light weight
  • PowerCon in & out connection
  • Overheating protection
  • Available in pixel control and non pixel control version
Datasheet

Video


* Can't watch the video? Please enable JavaScript in your browser.
Or CLICK HERE to watch on youtube

Specifications


PHYSICAL
Length: 390 mm (15.3 in.)
Width: 225 mm (8.8 in.)
Height: 305 mm (12 in.)
Net Weight: 9 kg (19.8 lb.)

DYNAMIC EFFECTS
Color mixing: RGBW
Color presets: 52 color presets plus full white
Zoom: motorized zoom
Pan: 540°
Tilt: 270°
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and action, random strobe

CONTROL AND PROGRAMMING
Control options: DMX, Auto, master-slave
DMX channels: 12 / 17 (non-pixel)
DMX channels: 11 / 17 / 18 / 38 (pixel control)
DMX address setting: Control panel with LCD display
DMX compliance: USITT DMX512-A

OPTICS
Light source: 7 x 40Watt LEDs
Color temperature: adjustable
Zoom: 5° - 50° motorized zoom
LED lifetime: 50,000 hours avg.*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming

CONSTRUCTION
Housing: Engineering grade plastic
Color: Black
Environment: IP20 indoor use

INSTALLATION
Mounting: 2 x Omega brackets
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 2 m (6.6 ft.)

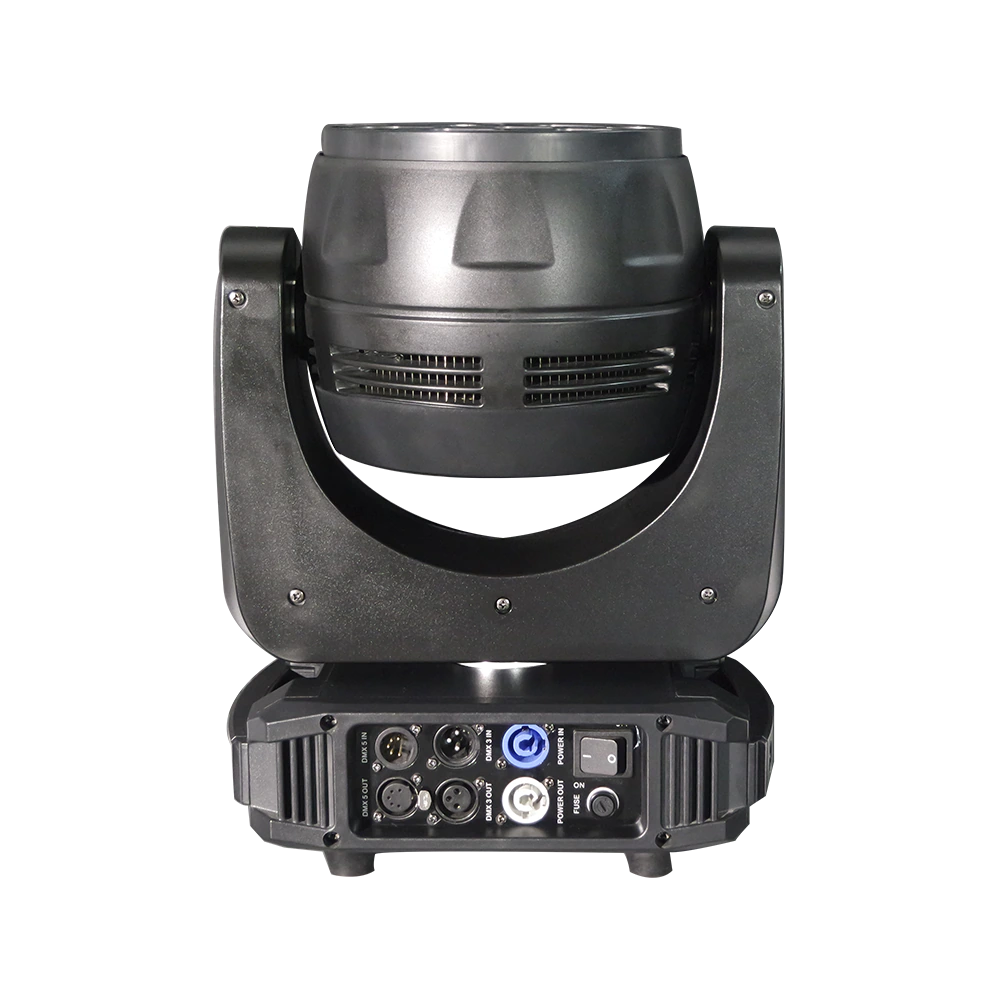

CONNECTIONS
AC power in, thru: PowerCon in & out
DMX data in/thru: 3-Pin XLR in & out, 3-Pin XLR in & out

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz: 290 Watt max.
Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)

APPROVALS
Pending

INCLUDED PARTS
Two omega brackets with 1/4 turn fasteners
Safety cable
User manual

OPTIONAL PARTS
Clamp

*Specifications subject to change without notice.*

Download


ItemTypeFileLanguageDownloadVersionUpdated
Leaflet - Mainforce 740DatasheetpdfENDownload1.0Sep 3, 2022
