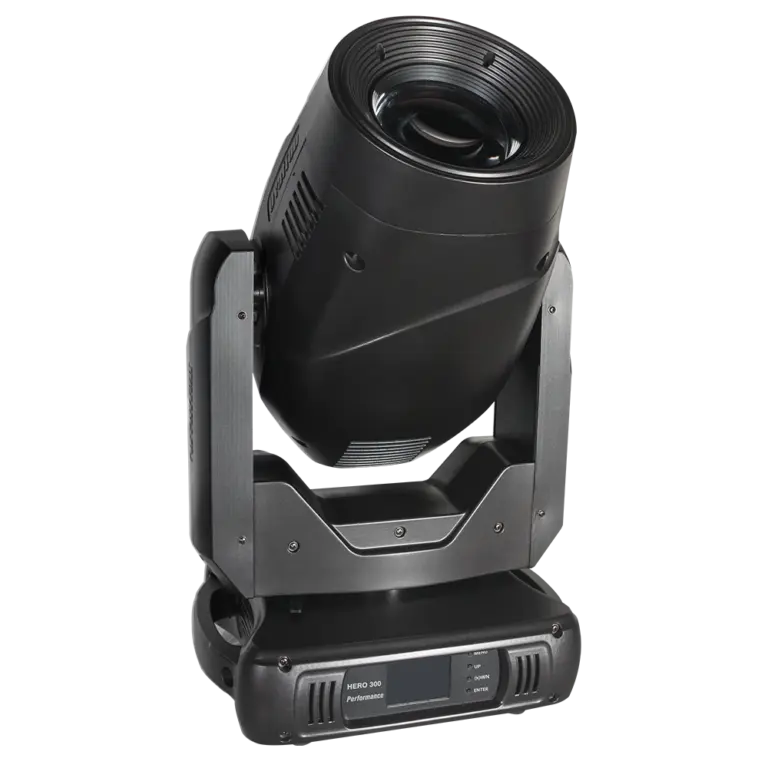

Hero 300 Performance

300Watt LED moving head performance

The Hero 300 Performance is a hybrid moving head with spot, wash, animation effect, and powered by a great output 300W white LED. Featuring RDM DMX control, 2 gobo wheels, 1 animation wheel, 1 color wheel with 7 colors, 3 facet prism, motorized focus, zoom and frost effect.

Key features

  • 300W super brightness LED
  • Spot, Wash Animation effect all-in-one
  • 1 Animation wheel with continuous bi-directional rotation
  • 1 Color wheel with 7 colors+open
  • 1 Gobo wheel with 8 fixed gobo+open
  • 1 Gobo wheel with 7 rotating gobo+open
  • Focus, Zoom, Frost, Dynamic effect
  • 3 - facet prism
  • 19/24 channel mode
  • RDM-DMX control
Datasheet
Datasheet
Categories: Moving heads, Professional stage light

Specifications

Physical

  • Length: 370 mm (14.5 in.)
  • Width: 285 mm (11.2 in.)
  • Height: 605 mm (23.8 in.)
  • Net Weight: 18.6 kg (41 lb.)

Dynamic effects

  • Color wheel: 7 colors + open
  • Static Gobo wheel: 8 static gobos + open
  • Rotating Gobo wheel: 7 rotating gobos + open
  • Prism: 3 facet circular rotating indexable prism
  • Focus: motorized
  • Dimmer/shutter: 0 – 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
  • Pan: 540°
  • Tilt: 270°
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, Auto, master-slave
  • DMX channels: 19/24
  • DMX address setting: Control panel with LCD display
  • DMX compliance: USITT DMX512-A

Optics

  • Light source: 300W white LED
  • Color temperature: 6600 K
  • Minimum LED lifetime: 50,000 hours
  • Zoom: 13° – 44° motorized zoom

Photometric data

  • CRI (Color Rendering Index): >70
  • For more information, please refer to the datasheet

Construction

  • Housing: Engineering grade flame-retardant plastic
  • Color: Black
  • Environment: IP20 indoor use

Installation

  • Mounting: 2 x Omega brackets
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 2 m (6.6 ft.)

Connections

  • AC power in, thru: PowerCon in
  • DMX data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 480 W
  • Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)

Approvals

  • Pending

Included parts

  • Two omega brackets with 1/4 turn fasteners
  • Safety cable
  • User manual

Optional parts

  • Clamp

*Specifications subject to change without notice.*
