Theatrical & Studio

Order Code:
71002

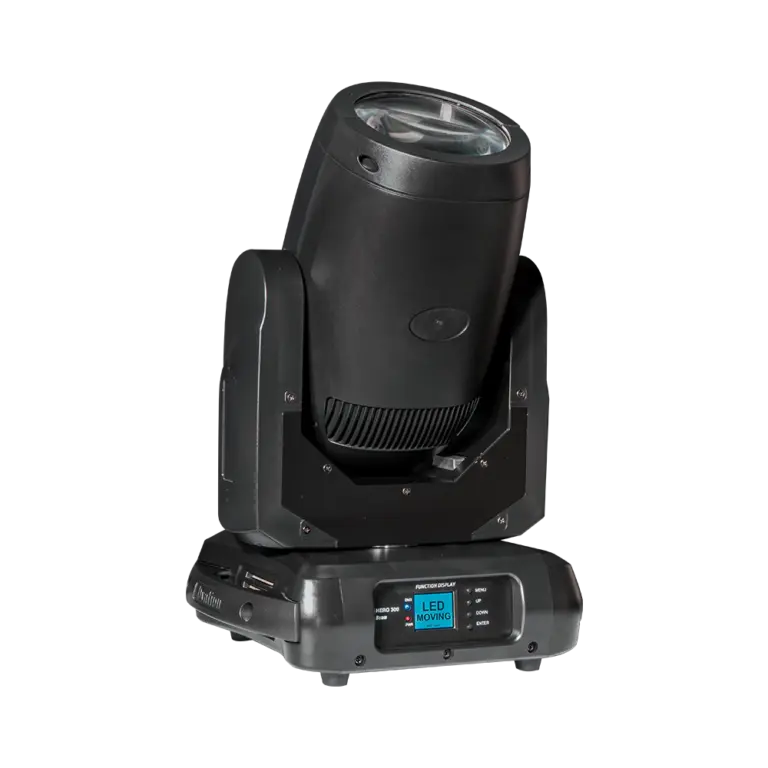

Hero 300 Super Beam

The Hero 300 Super Beam is a 80W super efficient LED moving head beam basing on Hero 300 Beam. It uses more advanced optical system and projects brighter and more crisp beam effect.

Key Features
  • 80W white LED
  • 2 degree beam angle
  • Brighter than Hero 300 Beam
  • 1 Color wheel with 10 colors+open
  • 1 Gobo wheel with 13 fixed gobo+open
  • 1 effect color wheel with 7-color colorwheel
  • Small size body
  • 16-facet prism
  • 16 channel mode
SKU: 71002 Categories: , Tag:
Share to:

Video

SPECIFICATIONS

PHYSICAL
Length: 323 mm (12.7 in.)
Width: 269 mm (10.6 in.)
Height: 468 mm (18.4 in.)
Net Weight: 12.76 kg (28 lb.)

DYNAMIC EFFECTS
Color wheel: 10 colors + open
Effect color wheel: 6-colors color wheel
Static Gobo wheel: 13 static gobos+open
Prism: 16 facet circular rotating indexable prism
Focus: motorized
Frost: Variable 0 - 100%
Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Pan: 540°
Tilt: 270°
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and action, random strobe

CONTROL AND PROGRAMMING
Control options: DMX, Auto, master-slave
DMX channels: 16
DMX address setting: Control panel with LCD display
DMX compliance: USITT DMX512-A

OPTICS
Light source: 100W white LED
Color temperature: 6000 K
Minimum LED lifetime: 50,000 hours
Beam angle: 2°

PHOTOMETRIC DATA
105000lux @5m
CRI (Color Rendering Index): >73
For more information, please refer to the datasheet

CONSTRUCTION
Housing: Engineering grade flame-retardant plastic
Color: Black
Enviroment: IP20 indoor use

INSTALLATION
Mounting: 2 x Omega brackets
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 2 m (6.6 ft.)

CONNECTIONS
AC power in, thru: PowerCon in
DMX data in/thru: 3-Pin XLR in & out

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz: 100 W
Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)

APPROVALS
Pending

INCLUDED PARTS
Two omega brackets with 1/4 turn fasteners
Safety cable
User manual

OPTIONAL PARTS
Clamp

*Specifications subject to change without notice.*

ACCESSORIES

DOWNLOAD

ItemTypeFileLanguageDownloadVersionUpdated
Leaflet - Herp 300 Super BeamDatasheetpdfENDownload1.0June 8, 2020
Manual - Hero 300 Super BeamManualpdfENDownload1.0June 8, 2020
