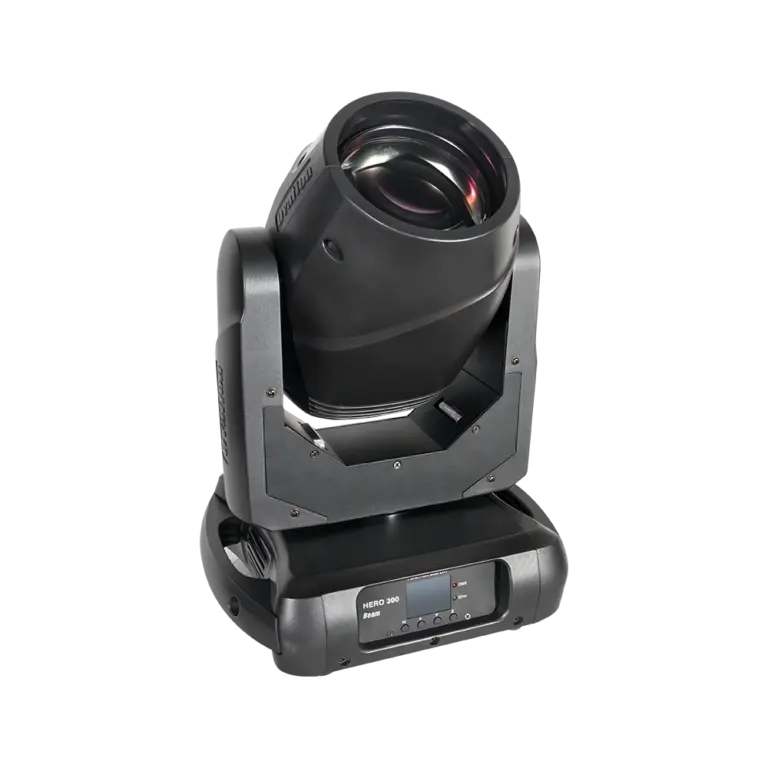

Hero 300 Beam

100W LED beam moving head

The Hero 300 Beam is 100W LED moving head beam light. Features high light output, small size body, extremely narrow beam angle, long LED life. It’s a perfect replacement for the traditional lamp based beam light.

Key features

Datasheet
Categories: Uncategorized

Specifications

Physical

  • Length: 333 mm (13.1 in.)
  • Width: 269 mm (10.6 in.)
  • Height: 424 mm (16.7 in.)
  • Net Weight: 12.7 kg (28 lb.)

Dynamic effects

  • Color wheel: 10 colors + open
  • Effect color wheel: 6-colors color wheel
  • Static Gobo wheel: 13 static gobos+open
  • Prism: 16 facet circular rotating indexable prism
  • Focus: motorized
  • Frost: Variable 0 – 100%
  • Dimmer/shutter: 0 – 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
  • Pan: 540°
  • Tilt: 270°
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, Auto, master-slave
  • DMX channels: 16
  • DMX address setting: Control panel with LCD display
  • DMX compliance: USITT DMX512-A

Optics

  • Light source: 100W white LED
  • Color temperature: 6000 K
  • Minimum LED lifetime: 50,000 hours
  • Beam angle: 3°

Photometric data

  • 11590lux @10m
  • CRI (Color Rendering Index): >73
  • For more information, please refer to the datasheet

Construction

  • Housing: Engineering grade flame-retardant plastic
  • Color: Black
  • Environment: IP20 indoor use

Installation

  • Mounting: 2 x Omega brackets
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 2 m (6.6 ft.)

Connections

  • AC power in, thru: PowerCon in
  • DMX data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 100 W
  • Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)

Approvals

  • CE

Included parts

  • Two omega brackets with 1/4 turn fasteners
  • Safety cable
  • User manual

Optional parts

  • Clamp

*Specifications subject to change without notice.*
