Solar Panel 300C

300Watt RGBWW LED studio panel

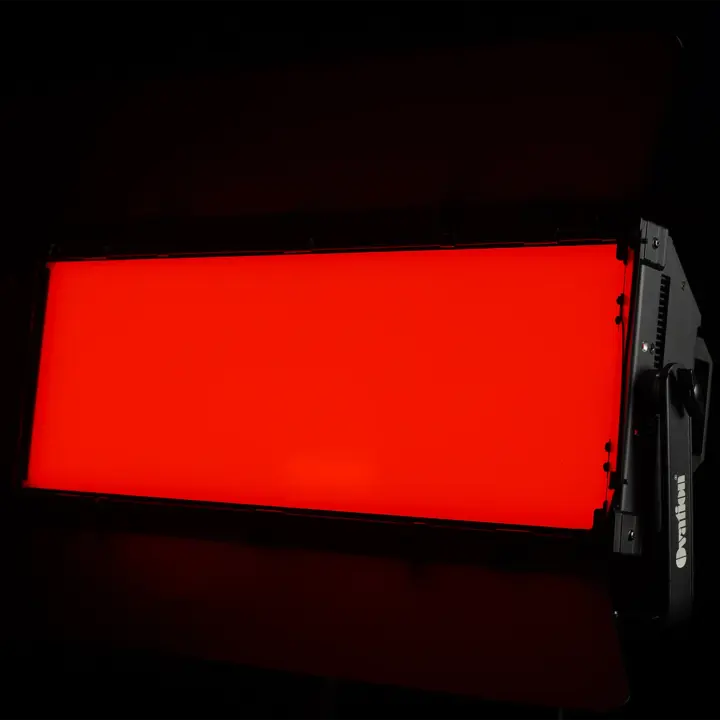

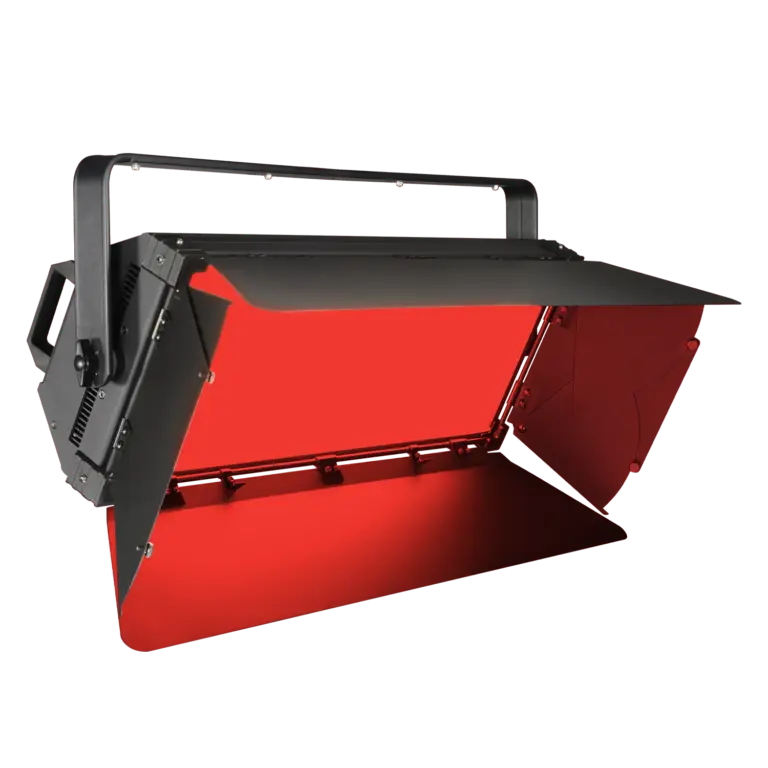

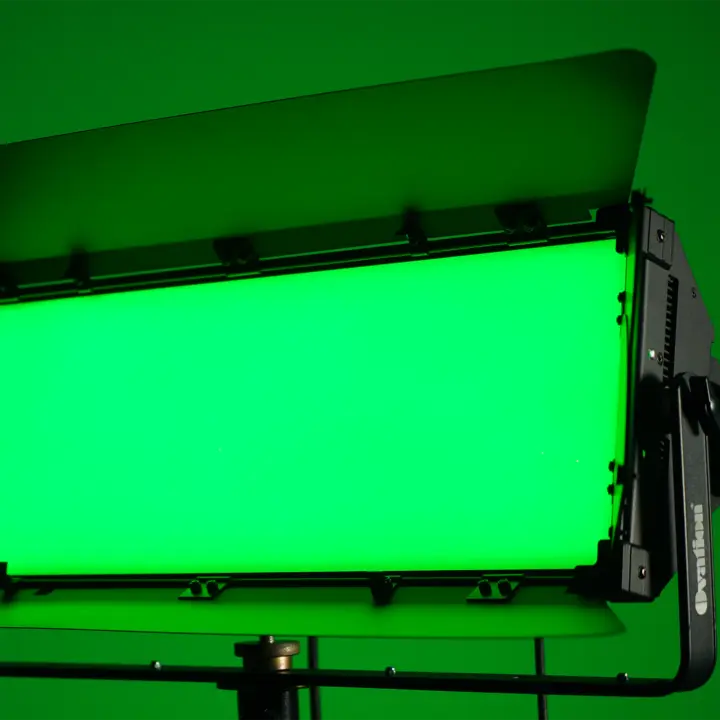

Solar Panel 300C is a 300Watt RGBWW colored LED studio panel light. WW stand for warm white and cold white. With the RGB LEDs, this fixture just come with versatile color mixing, even and wide wash effect, perfect control lighting area through eight leaf barndoor. Moreover, CRI 95, 98 TLCI brings perfect light quality. It is specially designed for theatres, TV studios, video shootings.

Key features

  • RGBW(warm white)W(cold white) LED
  • 2800K - 8000K color temperature adjustable
  • Even and flat color mixing
  • Bright output, uniform coverage
  • Super silent operation for all circumstances
  • High CRI 95, TLCI 98(avg.)
  • Trubo mode for high performance output
  • Dimmer curves selectable
  • Smooth dimming, flicker free operation
  • Rotary control of dimmer
  • Dimmer frequency 1.2 - 24.0 KHz
  • 8 - leaf barn door
Datasheet
Categories: LED panels, Theatre lights

Product performance

Specifications

Physical

  • Length: 651 mm (25.6 in.)
  • Width: 150 mm (5.9 in.)
  • Height: 299 mm (11.8 in.)
  • Net Weight: 9.2 kg (20.3 lb.)

Dynamic effects

  • Electronic dimming: 0 – 100%

Control and programming

  • Control options: DMX, RDM, Rotary
  • DMX channels: 2/7/11
  • Dimmer frequency: 1.2 – 20.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 4320pcs SMD RGBWW LED
  • Beam angle: 120°
  • Color temperature: 2,800K – 0,000K tunable
  • Minimum LED lifetime: 50,000 hours

Photometric data

  • Full on 1000lux @2m
  • CRI (Color Rendering Index) : >95(average)
  • TLCI (Television Lighting Consistency Index): >98(average)
  • For more information, please refer to the datasheet

Construction

  • Housing: Aluminum
  • Color: Black

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in/thru: PowerCon in & out
  • DMX & RDM data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 300W max(turbo mode), PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • Pending

Included parts

  • Power cable
  • 8-leaf barndoor
  • Safety cable

Optional parts

  • Beehive diffuser

*Specifications subject to change without notice.*

Documents

Get a quote

Frequently asked questions

  • Yes, we do have white version and tunable white verison – Solar Panel 300T.

  • Yes, we have 150Watt panel light, it is half size. Model name – Solar Panel 150T.

  • Yes, barndoor is included in delivery.

  • Yes, our fixture support wide range voltage which is 100 – 240V.

  • Yes, every unit have plug, and we’ll prepare according which type of plug you need.
