Theatrical & Studio

Order Code:
60811

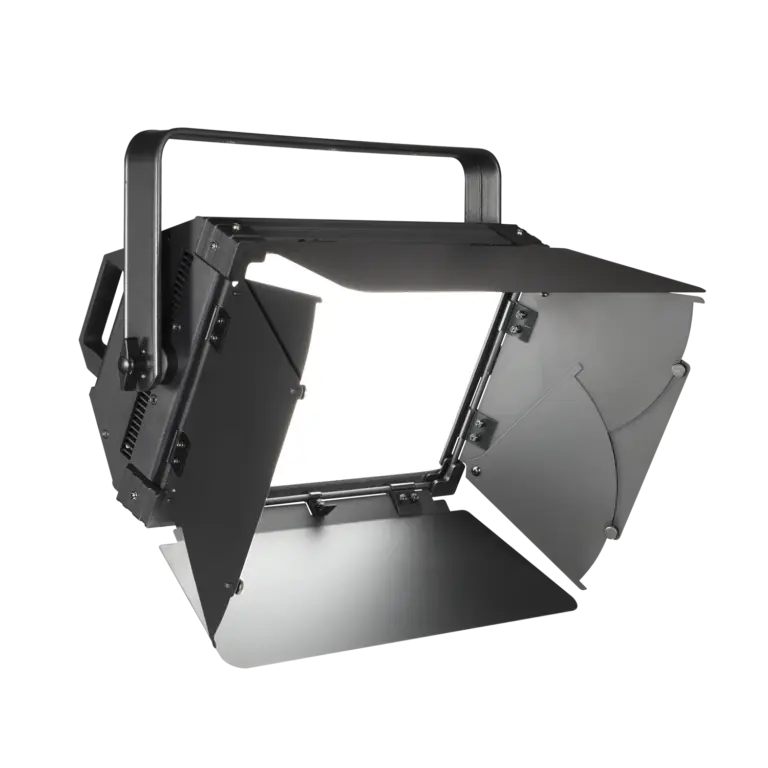

Solar Panel 150T

Solar Panel 150T is a 150Watt tunable white LED studio panel light. It comes with even and wide wash effect, perfect control lighting area through eight leaf barndoor. Moreover, equiped with 150Watt warm white + 150Watt cool white high output LEDs, CRI 98, 98 TLCI brings perfect light quality. It is specially designed for TV studios, video shootings.

Key Features
  • 150Watt ww+ 150Watt cw tunable white LED
  • 3200K - 5600K tunable
  • Super bright, uniform coverage
  • Super silent operation for all circumstances
  • High CRI 98, TLCI 98
  • Trubo mode for high performance output
  • Dimmer curves selectable
  • Smooth dimming, flicker free operation
  • Rotary control of dimmer and color temperature
  • Dimmer frequency 1.2 - 20.0 KHz
  • 8 - leaf barn door
Categories: , Tag:
Share to:

LED technology

Video flicker free

Silent operation

PowerCon connection

8 leaf barndoor

Video

SPECIFICATIONS

PHYSICAL
Length: 398 mm (15.7 in.)
Width: 150 mm (5.9 in.)
Height: 299 mm (11.8 in.)
Net Weight: 5.5 kg (12 lb.)

DYNAMIC EFFECTS
Electronic dimming: 0 – 100%

CONTROL AND PROGRAMMING
Control options: DMX, RDM
DMX channels: 2/5
Dimmer frequency: 1.2 – 20.0 KHz
DMX address setting: Control panel with LED display or via RDM
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
RDM function available for addressing and settings

OPTICS
Light source: 1440pcs SMD LED
Beam angle: 120°
Color temperature: 3,200K - 5,600K tunable
Minimum LED lifetime: 50,000 hours

PHOTOMETRIC DATA
Full on 1300lux @2m
CRI (Color Rendering Index) : >98(average)
TM-30 Rf (IES TM-30-15 Fidelity Index): >97(5,600K)
TM-30 Rg (IES TM-30-15 Gamut Index): >104(5,600K)
TLCI (Television Lighting Consistency Index): >98(average)
For more information, please refer to the datasheet

CONSTRUCTION
Housing: Aluminum
Color: Black

INSTALLATION
Mounting: Adjustable bracket
Enviroment: IP20 indoor use
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

CONNECTIONS
AC power in/thru: PowerCon in & out
DMX & RDM data in/thru: 3-Pin XLR in & out

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz: 100 W, PF 0.96
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)

APPROVALS
Pending

INCLUDED PARTS
Power cable
8-leaf barndoor
Safety cable

OPTIONAL PARTS
Beehive diffuser

*Specifications subject to change without notice.*

ACCESSORIES

DOWNLOAD

ItemTypeFileLanguageDownloadVersionUpdated
Leaflet - Solar Panel 150TDatasheetpdfENDownload1.0Aug 07, 2021
2D Dimensions - Solar Panel 150 SeriesIllustrationspdfENDownload1.0Aug 7, 2021
