X40

40W COB LED ellipsoidal spotlight for church, exhibition, art gallery

X40 is a upgraded version of mini leko 20, brightness surprisingly increased by 50%. Die-casting housing, fan-free design. With 19°, 26°, 36°, 50° lens optional, track mount version selectable. Accurate color reproduction, smooth dimming makes the X40 an idea product for art gallery, museum, shoping mall.

Key features

  • 40W COB LED, high lumen
  • 3200K, 4000K or 5600K color temperature optional
  • Bright output in such small body
  • High CRI over 92, accurate color reproduction
  • Die-casting aluminum housing, fan-free design
  • 19°, 26°, 36°, 50° lens selectable
  • Smooth dimming, flicker free
  • Compact body, easy to set up
  • Track mount version selectable

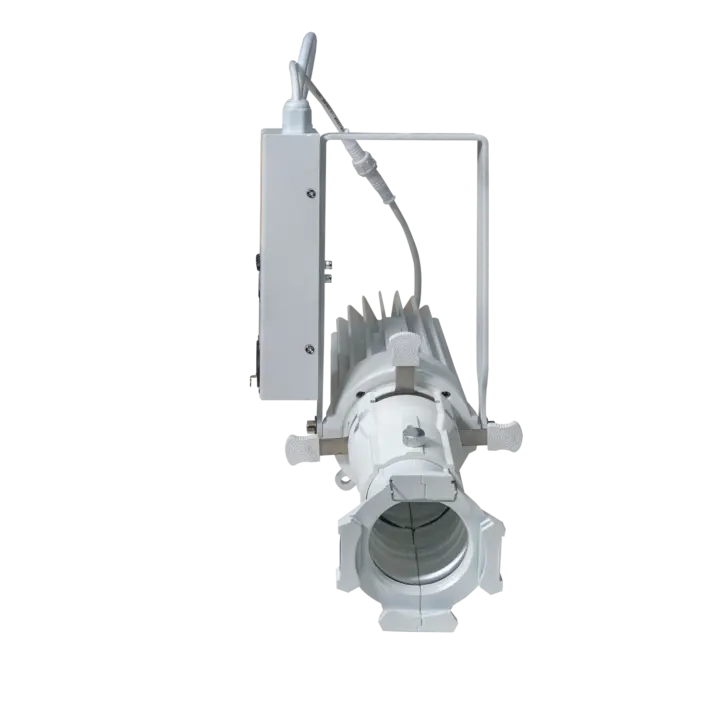

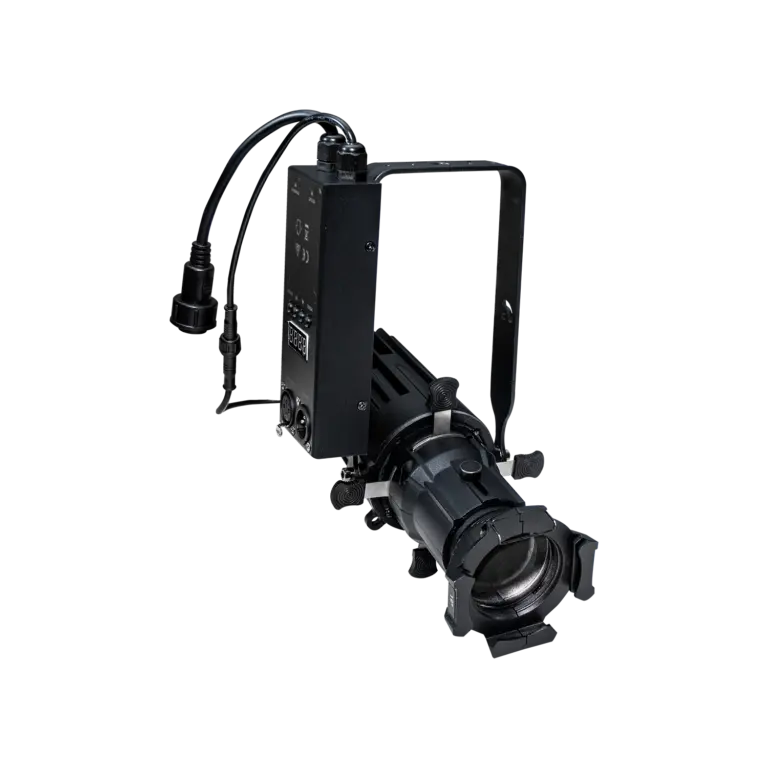

  • Available in black and white body
Datasheet
Order code: Categories: LED ellipsoidal, Theatre lightsTags: Gallery light

Product performance

Specifications

Physical

  • Length: 275 mm (10.8 in.)
  • Width: 135 mm (5.3 in.)
  • Height: 110 mm (4.3 in.)
  • Net Weight: 1.5 kg (3.3 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 40W COB LED
  • Color temperature: 3,200K, 4,000K or 5,600K optional
  • Minimum LED lifetime: 50,000 hours
  • Fixed lens option: 18°, 26°, 36°, 50° optional

Photometric data

  • 5,600K 373lux @5m 19°
  • CRI (Color Rendering Index) : >92
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >94
  • TM-30 Rg (IES TM-30-15 Gamut Index): >102
  • TLCI (Television Lighting Consistency Index): >97
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black or white

Gobos & color frame

  • Gobo size: E size, OD 37.5mm, image area 28mm
  • Color frame size: 60 x 60mm (2.4 in. x 2.4 in.)

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in/thru: Dedicated power in
  • DMX & RDM data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 38 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Color frame
  • User manual

Optional parts

  • Mounting bracket
  • Gobo holder

*Specifications subject to change without notice.*

Accessories

  • Gel frame for Mini Profile 20 series

    Color frame Mini Profile 20
  • Power cable

    power-cable-reborn-200
  • Gobo Holder(optional)

    E sized gobo holder

Documents

Get a quote

Frequently asked questions

Yes, every unit have plug, and we’ll prepare according which type of plug you need.

Yes, you can. The X40 consist of LED engine, barrel, lens. The difference of degree is in the lens. If you need to replace, just purchase a different lens degree.

Yes, color frame is standard part, included in every delivery.

Gobo holder is optional part. If you need, please contact us for purchase.

Yes, we do have zoom version. Check Mini Profile 40Z.

Yes, the fixture is available in both black and white body.
