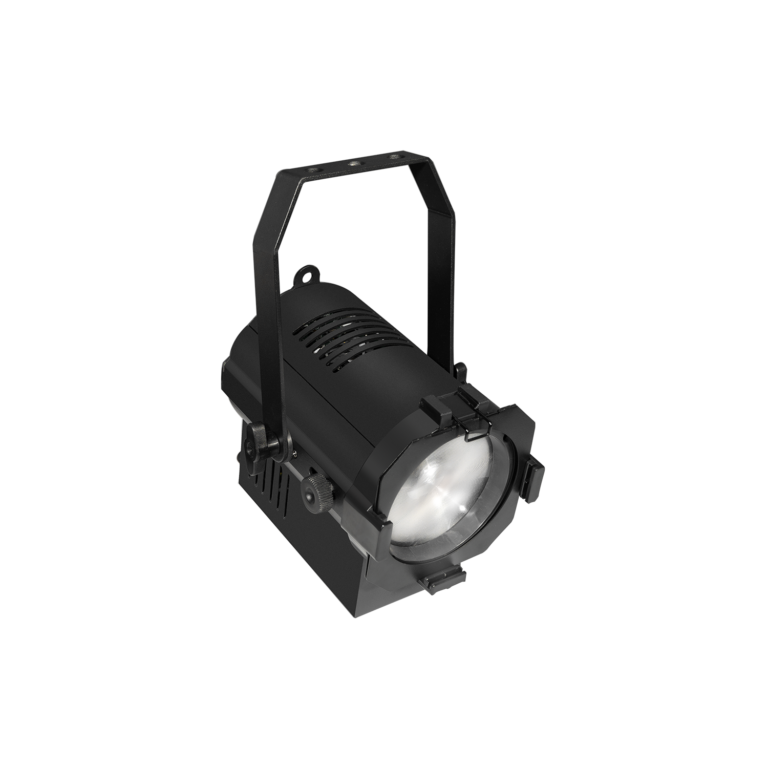

Mini fresnel 40Z

40Watt white LED fresnel

Designed for short distance wash. The mini Fresnel 40Z is a compact LED fresnel and powered by 40W 3200K tungsten or 5600K daylight LED. Featuring 25° – 80° zoom, 95CRI, 90 R9, rotary control of dimmer. It deliver a smooth, soft flat field of light. Barn door included for the shape of the light. The Mini Fresnel 40Z is also available in line dimmed version(AC dimmer).

Key features

  • 40W COB white LED
  • CRI 95, R9≥90, TLCI 98, CQS 94
  • 25° - 80° manual zoom
  • Smooth dimming, flicker free
  • Super compact, easy for set up
  • Rotary, key, DMX control of dimmer
  • DMX-RDM compliant

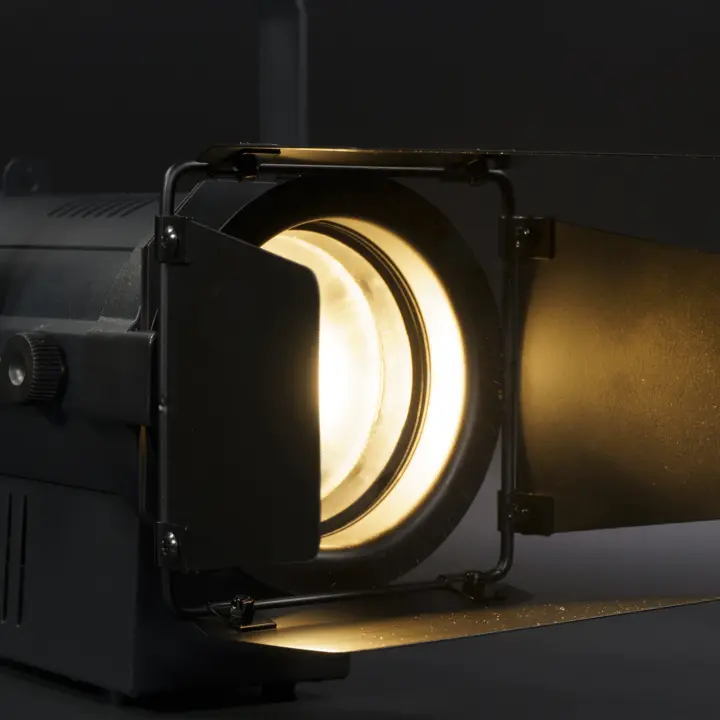

  • 4-leaf rotatable barndoor included
  • Track mount version selectable
  • Available in line dimmed version
Datasheet
Categories: LED fresnels, Theatre lights

Product performance

Specifications

Physical

  • Length: 230 mm (9.1 in.)
  • Width: 156 mm (6.1 in.)
  • Height: 279 mm (10.9 in.)
  • Net Weight: 2.2 kg (4.8 lb.) barndoor included

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1/2/3/4
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings
  • Stand-alone programming: Control panel with LED display, preset, color marco available

Optics

  • Light source: 40W COB LED
  • Color temperature: 3,200K or 5,600K optional
  • Minimum LED lifetime: 50 000 hours
  • Zoom Range: 25°- 80° manual

Photometric data

  • 3200K 2160lux @3m 25°
  • CRI (Color Rendering Index) : >95 R9>90
  • CQS (Color Quality Scale): >96
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >92
  • TM-30 Rg (IES TM-30-15 Gamut Index): >98
  • TLCI (Television Lighting Consistency Index): >98
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black or white variant

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in, thru: PowerCon in
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 1.2 A, 38 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Rotating barndoor
  • Color frame
  • User manual

Optional parts

  • Mounting bracket
  • Safety cable

*Specifications subject to change without notice.*

Accessories

  • 4-leaf rotating barndoor

    Barndoor Mini Fresnel Series

  • Color frame

    Color Frame Mini Fresnels

  • Safety cable

    Safety Cable

  • Power cable, 1.2m

    Powercon Schuko Cable
