Theatrical & Studio

Order Code:
60009

MINI FRESNEL 50TZ

The Mini Fresnel 50TZ is a compact LED fresnel and powered by 50W warm white and 50W cold white tunable LED. 25° ~ 80° zoom, 95CRI, 90 R9, rotary control of dimmer. It deliver a smooth, soft flat field of light. Barn door included for the shape of the light.

Key Features
  • 50W warm white + 50W cool white
  • 2700K ~ 6500K tunable
  • CRI 95, R9≥90, TLCI 98, CQS 96
  • 25° - 80° manual zoom
  • Smooth dimming, flicker free
  • Super compact, easy for set up
  • Rotary, key, DMX control of dimmer
  • DMX-RDM compliant
  • 4-leaf rotatable barndoor included
  • Track mount version selectable
Categories: , Tag:
Share to:

Video

SPECIFICATIONS

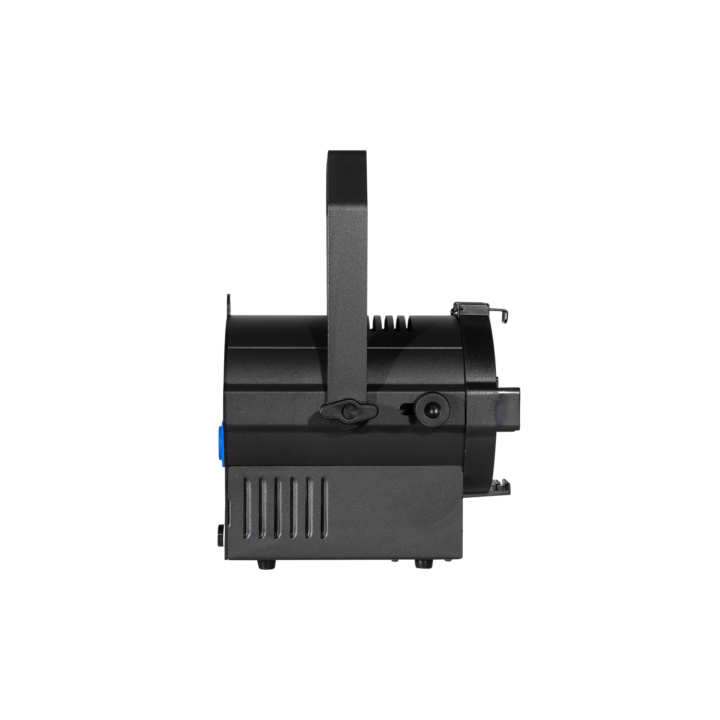

PHYSICAL
Length: 230 mm (9.1 in.)
Width: 156 mm (6.1 in.)
Height: 279 mm (10.9 in.)
Net Weight: 2.2 kg (4.8 lb.) barndoor included

DYNAMIC EFFECTS
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and action, random strobe

CONTROL AND PROGRAMMING
Control options: DMX, RDM, stand-alone
16-bit control: Intensity
DMX channels: 1/2/3/5
Dimmer frequency: 1.2 – 24.0 KHz
DMX address setting: Control panel with LED display or via RDM
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
RDM function available for addressing and settings
Stand-alone programming: Control panel with LED display, preset, color marco available

OPTICS
Light source: 50W WW + 50W CW COB LED
Color temperature: 2,700K - 6,500K optional
Minimum LED lifetime: 50 000 hours
Zoom Range: 25°- 80° mnual

PHOTOMETRIC DATA
2700K 946lux @3m 25°
6500K 1312lux @3m 25°
Full on 1069lux @3m 25°
CRI (Color Rendering Index) : >95, R9>90
CQS (Color Quality Scale): >96
TM-30 Rf (IES TM-30-15 Fidelity Index): >92
TM-30 Rg (IES TM-30-15 Gamut Index): >98
TLCI (Television Lighting Consistency Index): >98
For more information, please refer to the datasheet

CONSTRUCTION
Housing: Stretch aluminum, engineering grade flame-retardant plastic
Color: Black or white variant

INSTALLATION
Mounting: Adjustable bracket
Enviroment: IP20 indoor use
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

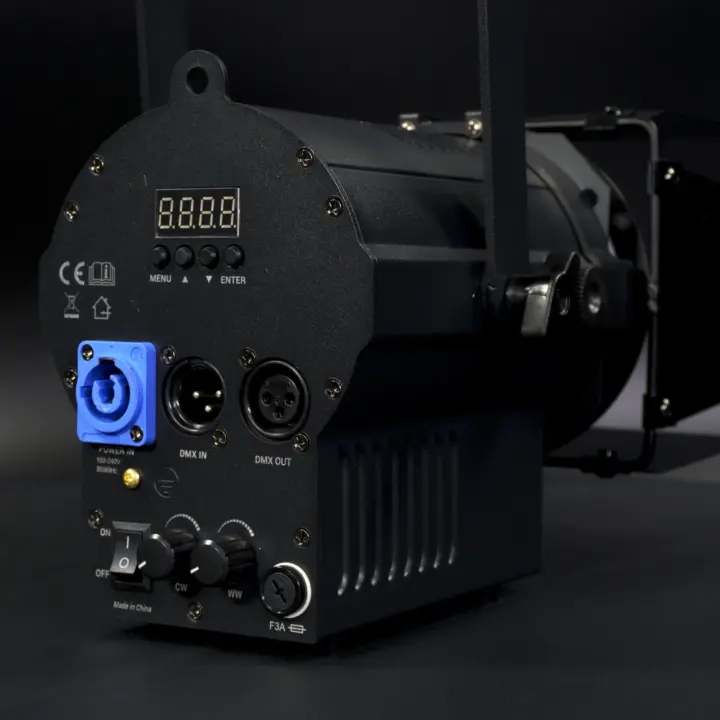

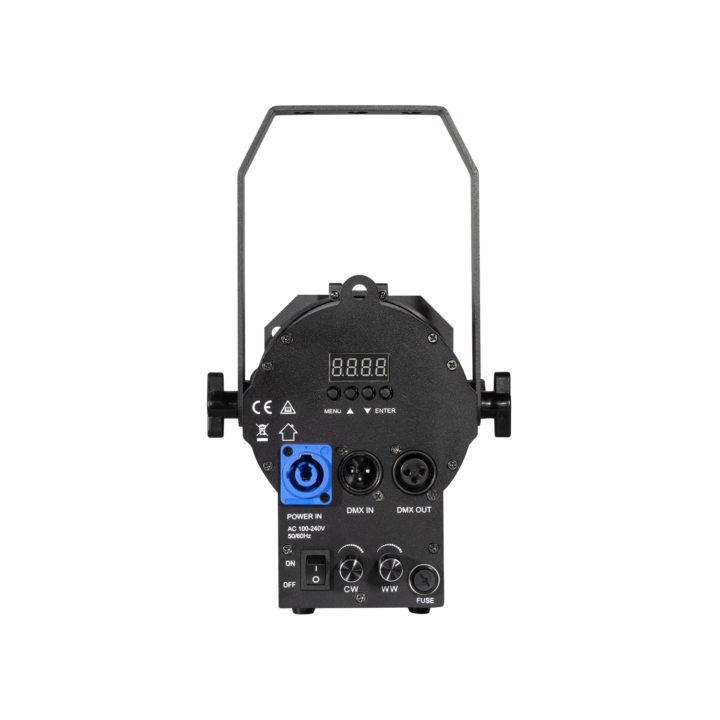

CONNECTIONS
AC power in, thru: PowerCon in
DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz: 1.2 A, 38 W, PF 0.96
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)

APPROVALS
EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

INCLUDED PARTS
Rotating barndoor
Color frame
User manual

OPTIONAL PARTS
Mounting bracket
Safety cable

*Specifications subject to change without notice.*
