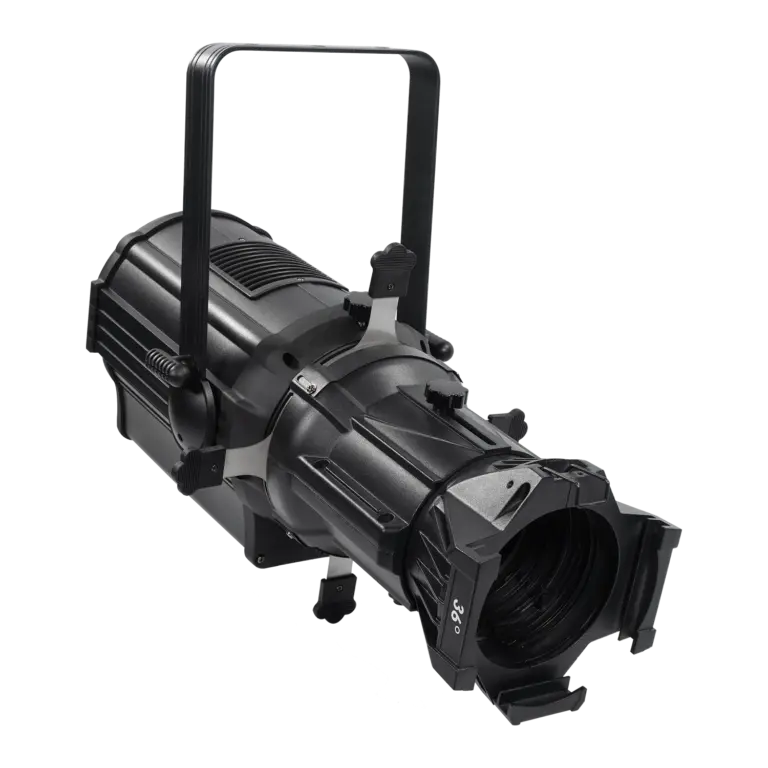

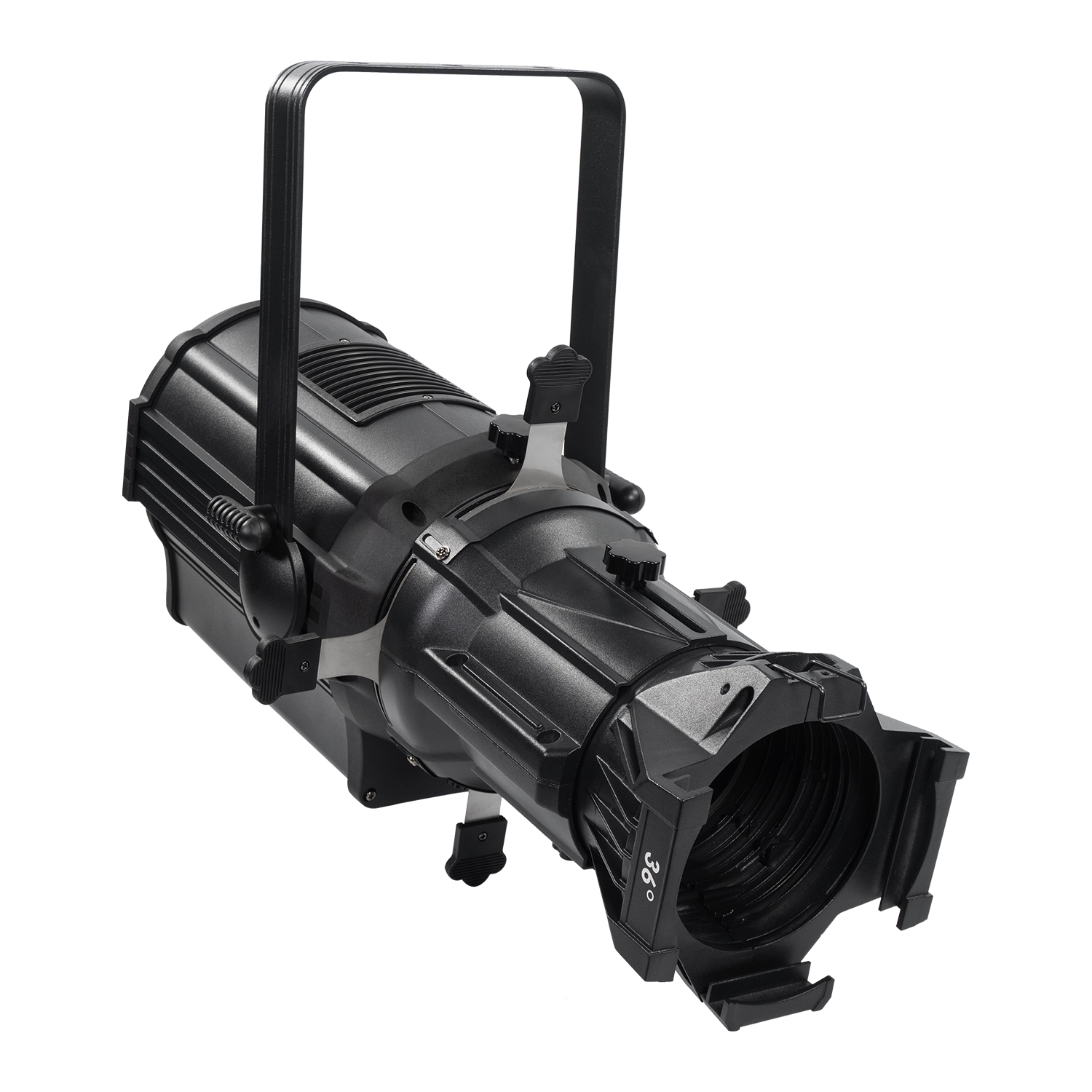

Profile S300

300W LED profile with fixed lens

Profile S300 is a 300W 3200K or 5600K powered LED ellipsoidal light fixture. Lens available at 19°, 26°, 36°, 50°. HD optics and four shutters to control the shape of the light. Fixture also equipped with powercon in & out connector.

Key Features

  • 300W COB white LED
  • CRI 97, R9≥90, TLCI up to 98

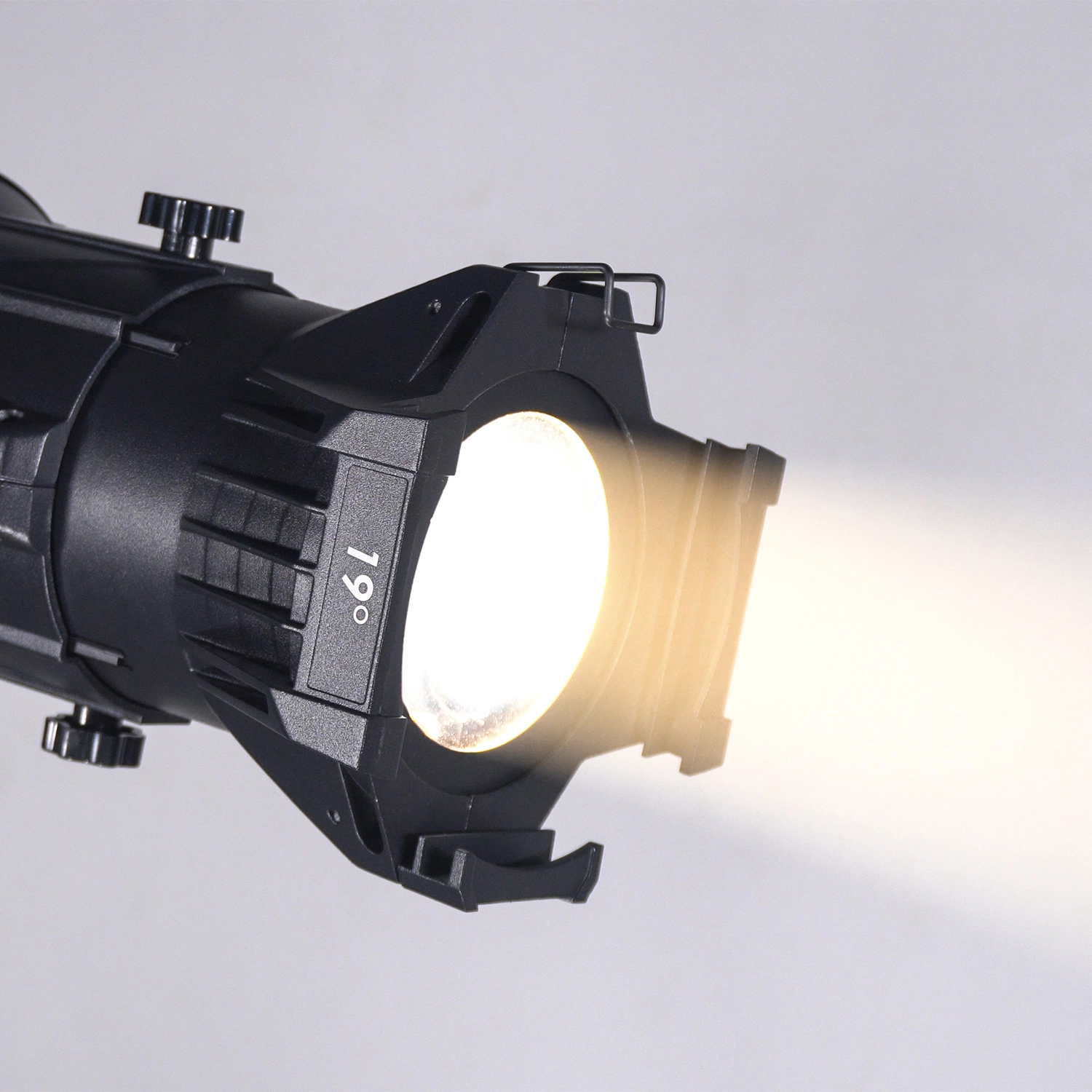

  • HD optical system, clean shutter cuts beam
  • 19°, 26°, 36°, 50° lens optional
  • Smooth dimming, flicker free operation
  • Flicker free with selectable PWM
  • Rotary, key, DMX control of dimmer
  • Silent operation for studio and theatre use
  • Aluminum housing, robust construction
Datasheet

Specifications


PHYSICAL
Length: 700 mm (27.6 in.)
Width: 270 mm (10.6 in.)
Height: 263 mm (10.4 in.)
Net Weight: 9.2 kg (20.2 lb.)

DYNAMIC EFFECTS
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and action, random strobe

CONTROL AND PROGRAMMING
Control options: DMX, RDM, stand-alone
DMX channels: 1/2/3
Dimmer frequency: 1.2 – 24.0 KHz
Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
Fan mode: studio mode for super silent operation(reduced power, even lower fan speed)
DMX address setting: Control panel with LCD display or via RDM
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
RDM function available for addressing and settings

OPTICS
Light source: 300W COB LED
Color temperature: 3,200K or 5,600K optional

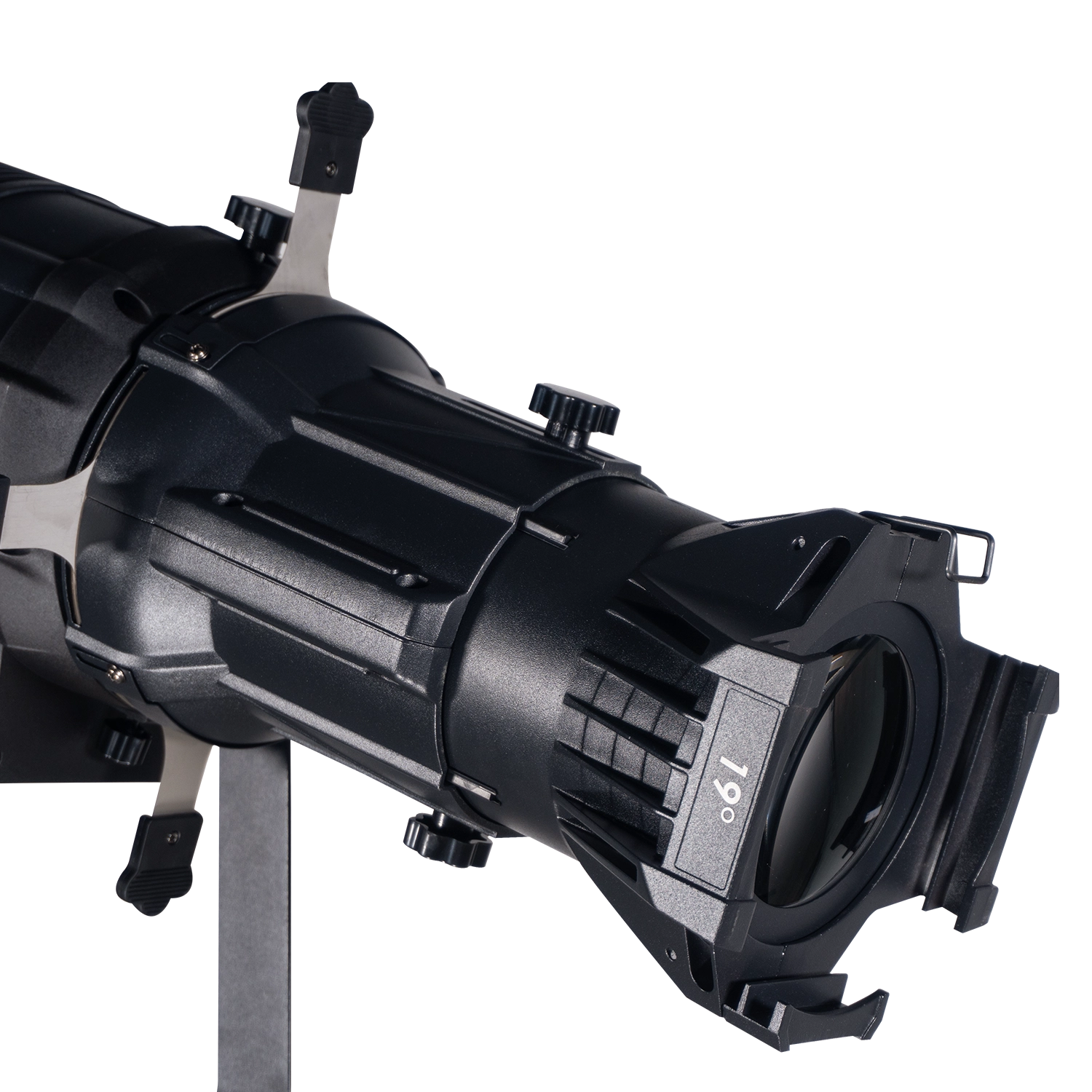

Lens tube options: 19°, 26°, 36°, 50°
Minimum LED lifetime: 50,000 hours
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
5600K 5742lux @5m 19°
CRI (Color Rendering Index) : >97, R9>90
TM-30 Rf (IES TM-30-15 Fidelity Index): >91
TM-30 Rg (IES TM-30-15 Gamut Index): >100
TLCI (Television Lighting Consistency Index): >97
For more information, please refer to the datasheet

CONSTRUCTION
Housing: Die-casting aluminum
Color: Black

INSTALLATION
Mounting: Adjustable bracket
Enviroment: IP20 indoor use
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

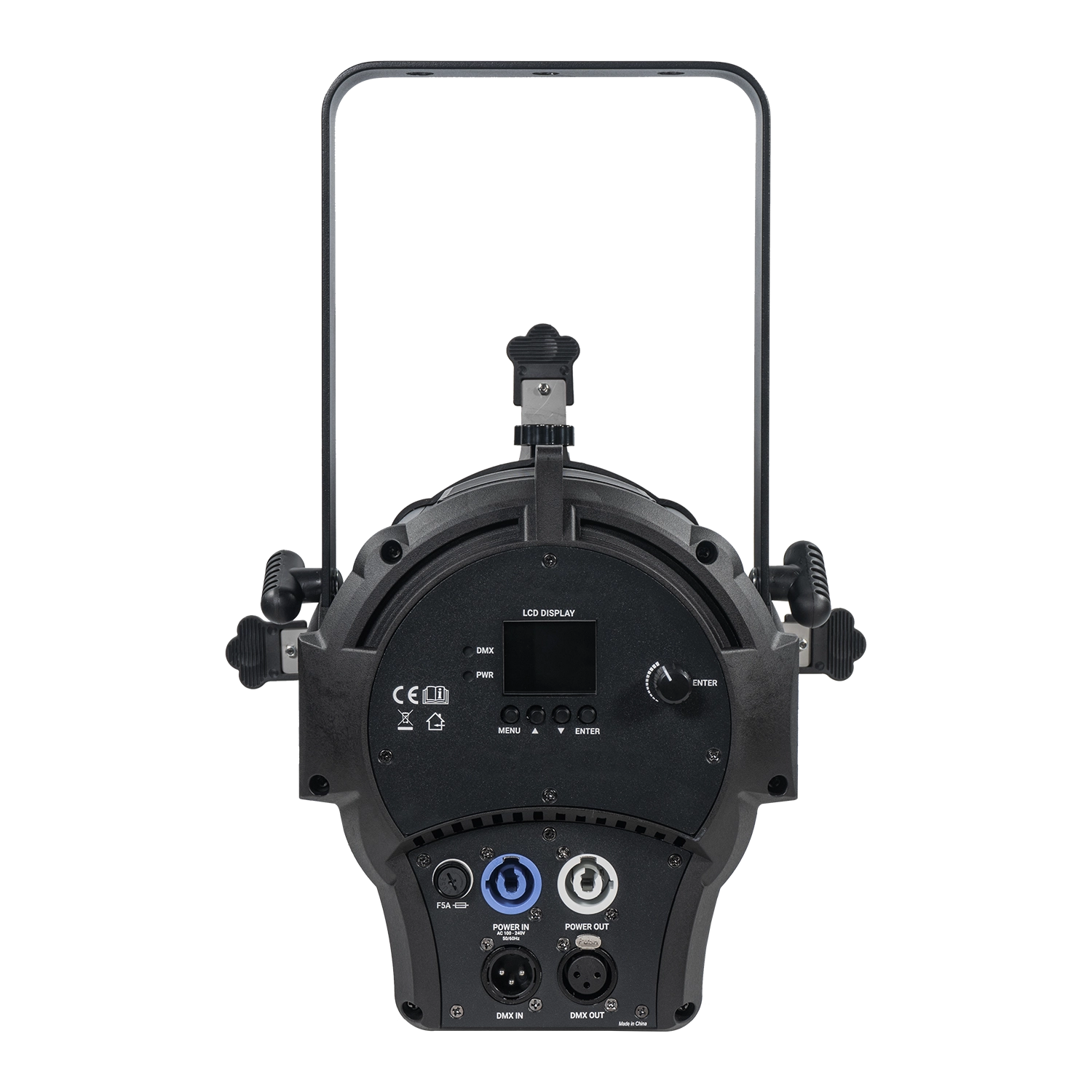

CONNECTIONS
AC power in/thru: PowerCon in & out
DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz: 300 W
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)

INCLUDED PARTS
Color frame
Safety cable
User manual

OPTIONAL PARTS
Mounting bracket
Gobo holder

*Specifications subject to change without notice.*
