Pioneer 350C Zoom

350Watt RGBALC six color LED fresnel auto zoom

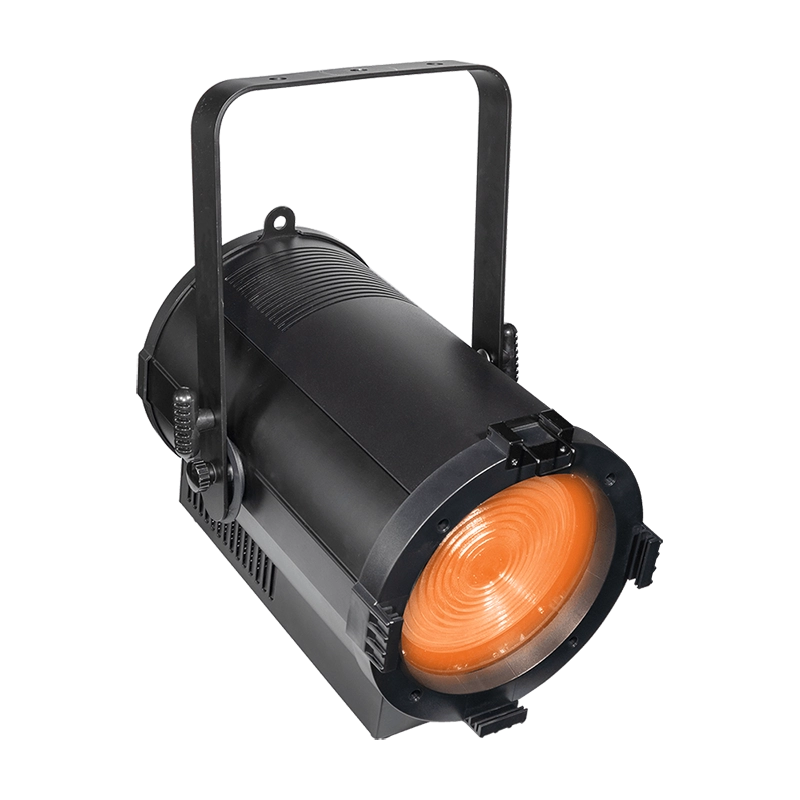

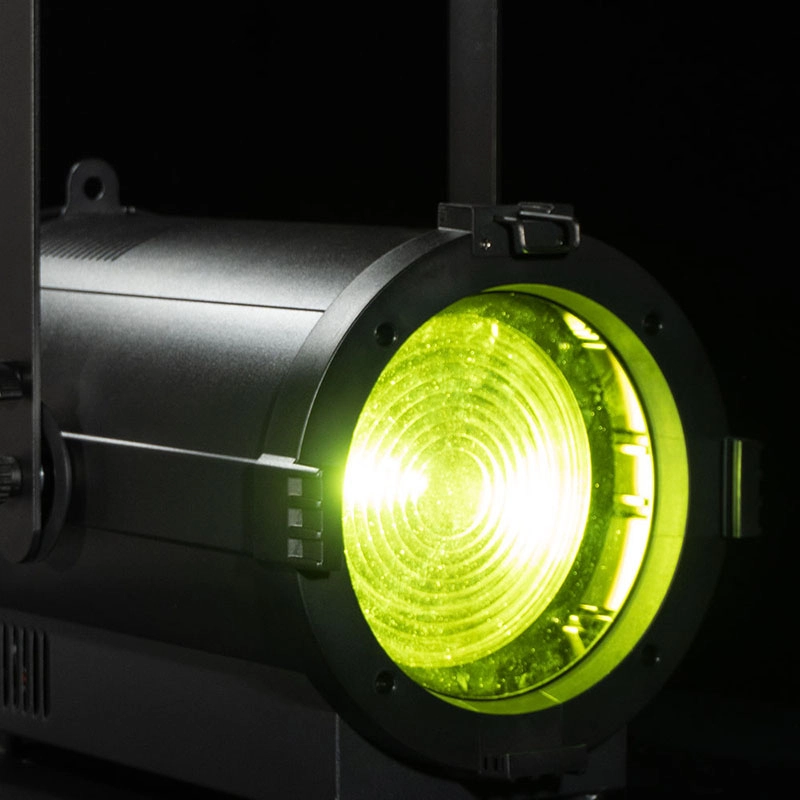

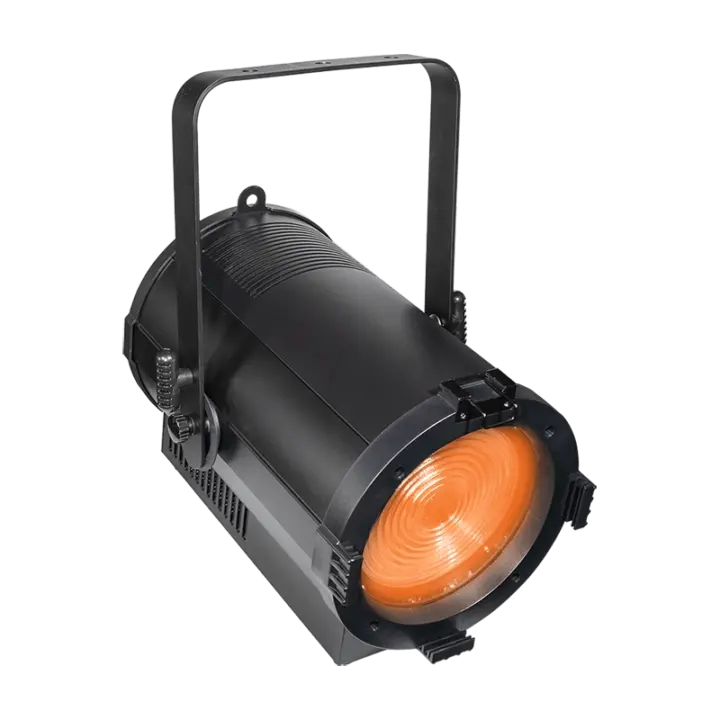

The Pioneer 350C Zoom is a 350W RGBALC six color powered LED fresnel with auto zoom function. The RDM-DMX compliant, 20 – 55 degree motorized zoom along with it’s superior color mixing make this fixture a good replacement for the traditional fresnels.

With the additional color ALC(amber, lime, cyan), the fixture is available to mix very high CRI in color temperature channel which can be over 95, and above 85 when full output.

Key features

  • 350W high power LED
  • RGBALC(Red, Green, Blue, Amber, Lime, Cyan) 6 color mixing
  • Soft and even wash effect
  • High CRI of 95(CT channel)
  • 20° - 55° motorized zoom
  • 16 bit dimming via DMX
  • Video flicker free
  • DMX, RDM control
  • 3-pin + 5-pin DMX
  • Dimmer modes selectable
  • Dimmer frequency 1.2 - 24.0KHz adjustable
  • Intelligent temperature control
Datasheet
Categories: LED fresnels, Theatre lights

Product performance

Specifications

Physical

  • Length: 460 mm (18.1 in.)
  • Width: 320 mm (12.6 in.)
  • Height: 440 mm (17.3 in.)
  • Net Weight: 11 kg (24.2 lb.) barndoor included

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, ArtNet, stand-alone
  • DMX channels: 2/8/13
  • Dimmer frequency: 1.2 – 20.0 KHz
  • Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
  • DMX address setting: Control panel with LCD display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 350W LED
  • LED color: RGBALC
  • Color temperature: 3000K – 8000K
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 20° – 55° motorized zoom

Photometric data

  • Red 256lux @5m 25°
  • Green 434lux @5m 25°
  • Blue 124lux @5m 25°
  • Amber 905lux @5m 25°
  • Lime 1430lux @5m 25°
  • Cyan 278lux @5m 25°
  • Full on 3220lux @5m 25°
  • CRI (Color Rendering Index) : >95(CT channel)
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >93
  • TM-30 Rg (IES TM-30-15 Gamut Index): >100
  • TLCI (Television Lighting Consistency Index): >95
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in, thru: PowerCon in
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 1.2 A, 325 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Rotating barndoor
  • Color frame
  • User manual

Optional parts

  • Mounting bracket
  • Safety cable

*Specifications subject to change without notice.*

Accessories

  • Barndoor for Pioneer 200 & 300 series

    Barndoor pioneer 200 + 300

  • Gel frame for Pioneer 200 & 300 series

    Color frame pioneer 200 + 300

  • Safety cable silver 3x700

    Safety Cable silver

  • Powercon cable 1.2m

    Powercon schuko cable

Documents

Get a quote

Frequently asked questions

  • Yes, as it is a high power LED sourced fresnel light, it does have two fans inside. However, it is controlled intelligently by the software and run at a low speed.

  • Yes it is. It does have two fans inside. However, it is controlled intelligently by the software and run at a low speed. Furthermore, we have built-in studio mode which the fan runs at even lower speed(and less power).

  • Yes, we can install Seetronic IP rated connector. The cost will be little bit more.

  • Yes, barndoor is included in delivery.

  • Yes, color frame is standard part, included in every delivery.

  • Yes, our fixture support wide range voltage which is 100 – 240V.

  • Yes, every unit have plug, and we’ll prepare according which type of plug you need.
