Pioneer 100 Zoom

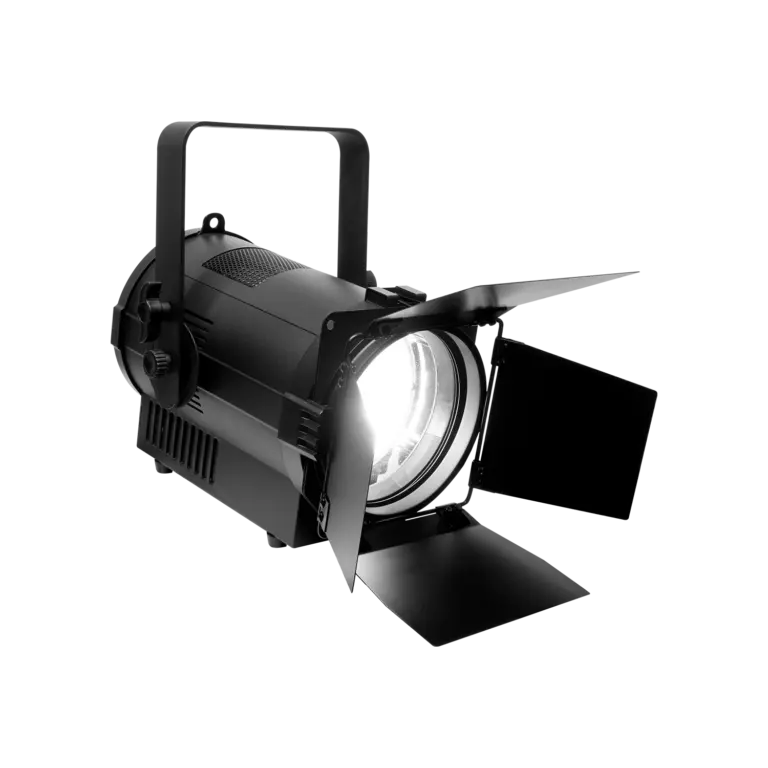

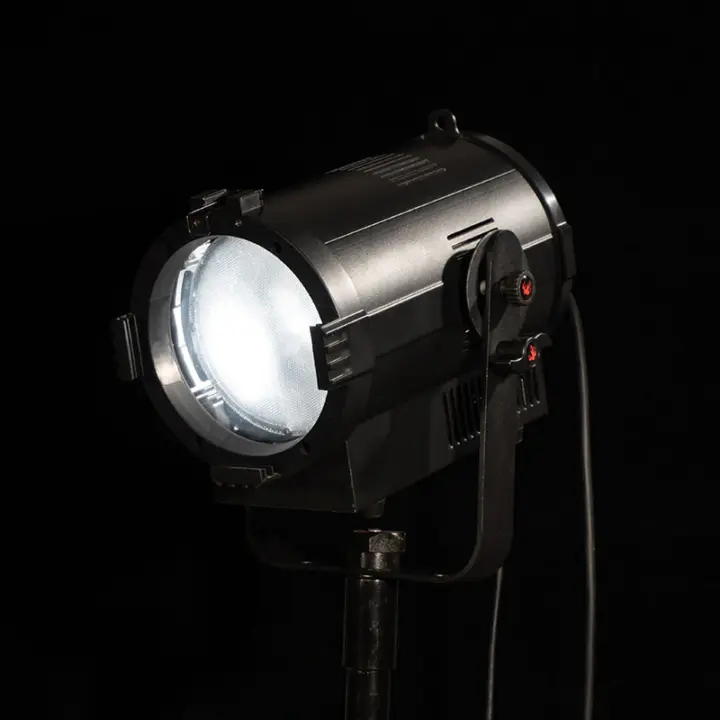

The Pioneer 100 Zoom is a 100W 3200K or 5600K powered LED fresnel with zoom function. The RDM-DMX compliant, 25-65 degree motorized zoom along with it’s superior 97 CRI make this fixture a good replacement for the traditional fresnels.

Key Features
  • 100W COB white LED
  • 3200K or 5600K color temperature
  • CRI 97, R9≥90, TLCI 98, CQS 94
  • Soft and even wash effect
  • 25-65° motorized zoom
  • Smooth dimming, flicker free
  • DMX, RDM control
  • Dimmer curves selectable
  • Silent operation for studio and theatre
Categories: , Tag:
Share to:

Video

SPECIFICATIONS

PHYSICAL
Length: 331 mm (13.0 in.)
Width: 210 mm (8.3 in.)
Height: 345.5 mm (13.6 in.)
Net Weight: 6.6 kg (14.6 lb.) barndoor included

DYNAMIC EFFECTS
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and action, random strobe

CONTROL AND PROGRAMMING
Control options: DMX, RDM, stand-alone
DMX channels: 2/3/4/5
Dimmer frequency: 1.2 – 24.0 KHz
DMX address setting: Control panel with LED display or via RDM
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
RDM function available for addressing and settings

OPTICS
Light source: 100W COB LED
Color temperature: 3,200K or 5,600K optional
Minimum LED lifetime: 50,000 hours
Zoom Range: 25° - 65° motorized zoom

PHOTOMETRIC DATA
5600K 1452lux @5m 25°
CRI (Color Rendering Index) : >97 R9>90
CQS (Color Quality Scale): >95
TM-30 Rf (IES TM-30-15 Fidelity Index): >92
TM-30 Rg (IES TM-30-15 Gamut Index): >98
TLCI (Television Lighting Consistency Index): >98
For more information, please refer to the datasheet

CONSTRUCTION
Housing: Stretch aluminum, , engineering grade flame-retardant plastic
Color: Black or white variant

INSTALLATION
Mounting: Adjustable bracket
Enviroment:: IP20 indoor use
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

CONNECTIONS
AC power in, thru: PowerCon in
DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz: 1.2 A, 100 W, PF 0.96
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)

APPROVALS
EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

INCLUDED PARTS
Rotating barndoor
Color frame
User manual

OPTIONAL PARTS
Mounting bracket
Safety cable

*Specifications subject to change without notice.*
