Honor 300 Zoom

300Watt white LED ellipsoidal, 1KW tungsten equivalent

Powered by 300W 3200K or 5600K LED, the Honor 300 Zoom is designed to replace the 1K Tungsten Halogen profile light. The 18° – 38° “all-in-one” zoom range covers the most regular 19°, 26°, 36° lens. It creates a flat and even field of light and crisp pattern projection.

  • 300W COB white LED
  • CRI 97, R9≥90, TLCI up to 98
  • HD optical system, clean shutter cuts beam
  • 18° – 38° “all-in-one” zoom range
  • Barrel rotatable
  • 16 bit dimming via DMX
  • Flicker free with selectable PWM
  • Rotary, key, DMX control of dimmer
  • Silent operation for studio and theatre use
  • Engine and lens compatible with industry standard
Instand quoteDatasheet

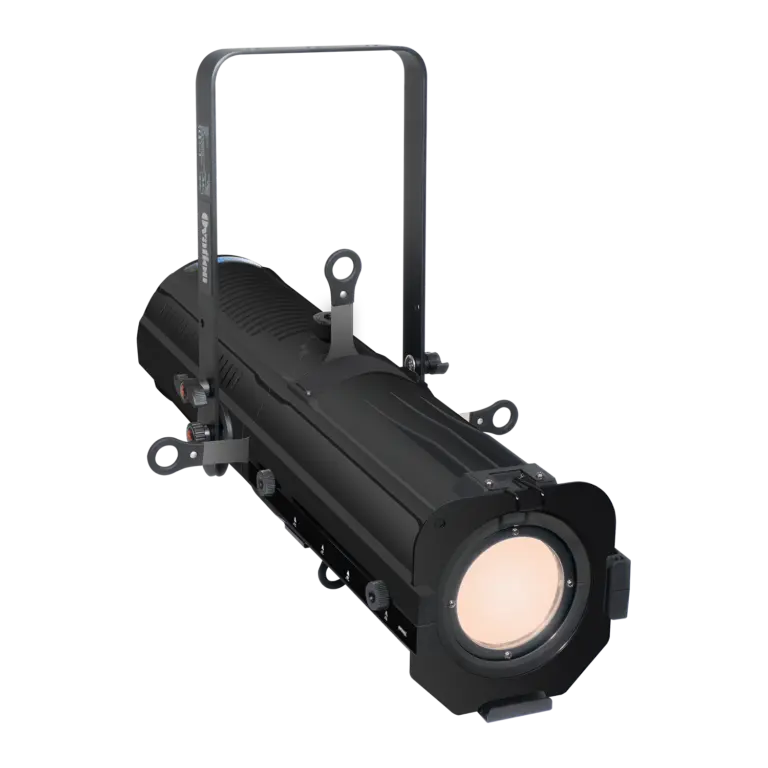

Honor 300 Zoom main view

Product Gallery

Video

Specifications

Physical

  • Length: 745 mm (29.3 in.)
  • Width: 294 mm (11.6 in.)
  • Height: 294 mm (11.6 in.)
  • Net Weight: 8.7 kg (19.2 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1/2/3
  • Dimmer frequency: 1.2 – 24.0 KHz
  • Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
  • Fan mode: studio mode for super silent operation(reduced power, even lower fan speed)
  • DMX address setting: Control panel with LCD display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 300W COB LED
  • Color temperature: 3,200K or 5,600K optional
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 18° – 38° manual zoom

Photometric data

  • 5600K 5061lux @5m 18°
  • CRI (Color Rendering Index) : >97, R9>90
  • CQS (Color Quality Scale): >93
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >91
  • TM-30 Rg (IES TM-30-15 Gamut Index): >100
  • TLCI (Television Lighting Consistency Index): >97
  • For more information, please refer to the datasheet

Construction

  • Housing: Engineering grade flame-retardant plastic
  • Color: Black

Gobos & color frame

  • Gobo size: D size, OD 53.3mm, image area 43mm
  • Color frame size: 140 x 140mm (5.5 in. x 5.5 in.)

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in/thru: PowerCon in & out
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 275 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Color frame
  • Safety cable
  • User manual

Optional parts

  • Mounting bracket
  • Gobo holder
  • Iris
Download PDF datasheet*Specifications subject to change without notice.*

Accessories

Documents

Get a Quote

Frequently asked questions

  • Do you have fixed lens version?

    Yes, we do have fixed lens version profile. It is metal body. Model name – Profile S300.

  • Can you install the powerCon from inside?

    No, unfortunately as the space limit from the body, we cannot install from inside.

  • Do you have tunable white version?

    Yes, please check our CTC 300 Profile.

  • Can you change the powercon to true 1 connector?

    Yes, we can install Seetronic IP rated connector. The cost will be little bit more.

  • Do you have white body version?

    Yes, we do have white body version for this model.

  • Is gobo holder included?

    Gobo holder is optional part. If you need, please contact us for purchase.

  • Is color frame included?

    Yes, color frame is standard part, included in every delivery.

  • Does it work in 110V?

    Yes, our fixture support wide range voltage which is 100 – 240V.

  • Does the power cable have plug?

    Yes, every unit have plug, and we’ll prepare according which type of plug you need.

  • Can you print our logo on products?

    Yes, we can print your brand logo on the products, with a bit MOQ required.
