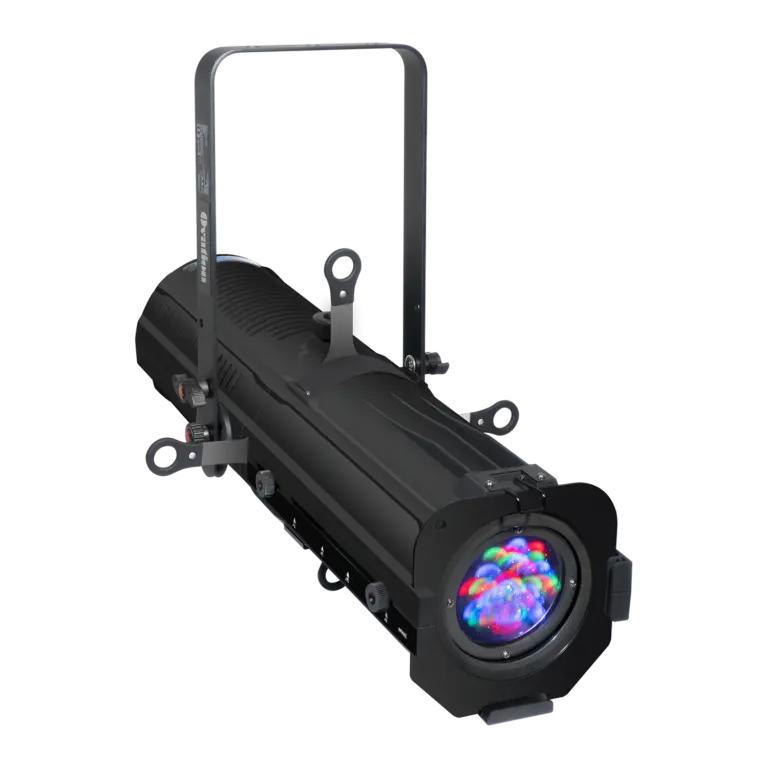

Honor 250C Zoom

250Watt RGBW LED ellipsoidal with zoom

The Honor 250C Zoom is a 250W LED profile spot with RGBW color mixing. A good replacement of the tungsten source. The 18° – 38° all-in-one zoom range covers the most regular 19°, 26°, 36° lens.

Key features

Datasheet

Product performance

Specifications

Physical

  • Length: 745 mm (29.3 in.)
  • Width: 294 mm (11.6 in.)
  • Height: 294 mm (11.6 in.)
  • Net Weight: 8.7 kg (19.2 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM
  • DMX channels: 1/4/6/10
  • Dimmer frequency: 1.2 – 20.0 KHz
  • Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
  • Fan mode: studio mode for super silent operation(reduced power, even lower fan speed)
  • DMX address setting: Control panel with LCD display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 250W LED
  • Color mixing: RGBW
  • Color temperature: 3,000K – 8,000K
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 18° – 38° manual zoom

Photometric data

  • Red 680lux @5m 18°
  • Green 119lux @5m 18°
  • Blue 282lux @5m 18°
  • White 1940lux @5m 18°
  • Full on 3840lux @5m 18°
  • For more information, please refer to the datasheet

Construction

  • Housing: Engineering grade flame-retardant plastic
  • Color: Black

Gobos & color frame

  • Gobo size: D size, OD 53.3mm, image area 43mm
  • Color frame size: 140 x 140mm (5.5 in. x 5.5 in.)

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in/thru: PowerCon in & out
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 230 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Color frame
  • Safety cable
  • User manual

Optional parts

  • Mounting bracket
  • Gobo holder
  • Iris

*Specifications subject to change without notice.*

Accessories

  • Gel frame for Honor Profiles series

    Color Frame Honor Profiles
  • Safety cable silver 3x700

    Safety Cable silver
  • Powercon cable 1.2m

    Powercon Schuko Cable
  • Iris for Honor Profiles

    Iris for Ovation Honor Profile spots
  • Gobo Holder for Honor Profiles

    D Size Gobo Holder Honor Profiles
