Honor 100 Zoom

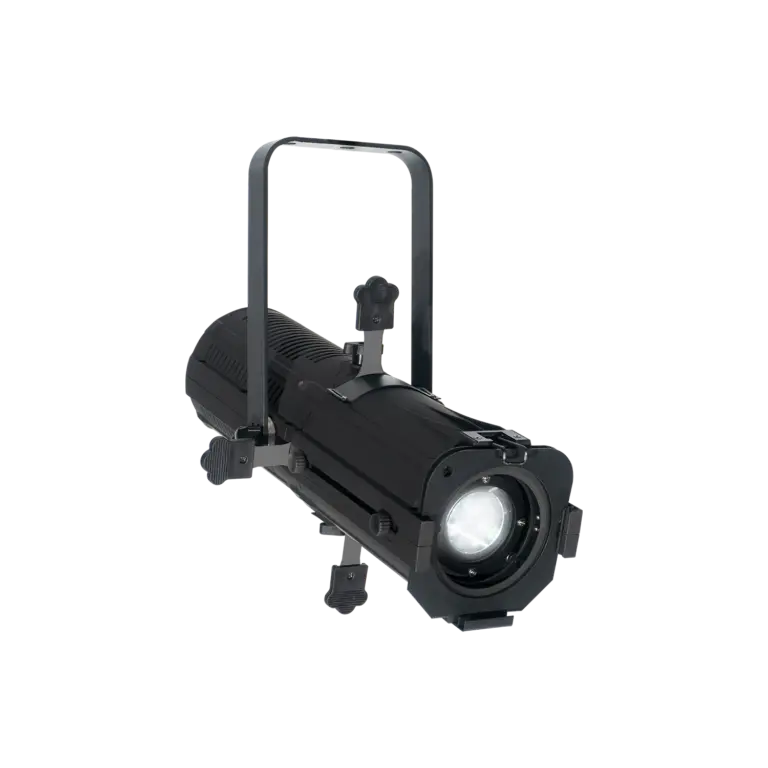

100Watt single white LED ellipsoidal with zoom

Honor 100 Zoom is a new member of the Honor profile family. It’s powered by an 100W 3200K or 5600K LED source with HD optics and bright output. Zoom lens available in 15° – 30°. The fixture comes with high CRI over 94, CQS over 91.

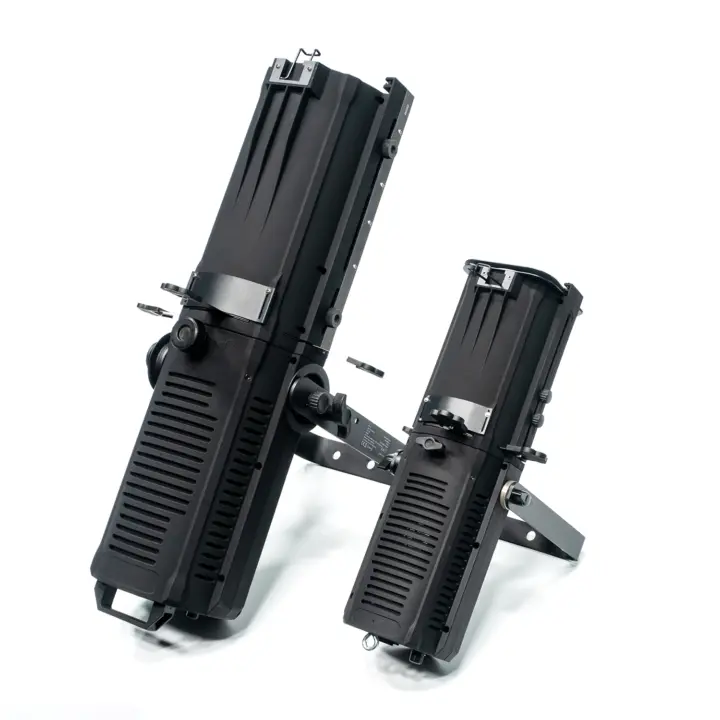

Super compact body: The Honor 100 Zoom is only half size compare to Honor 300 Zoom. Weight only 3.5kgs. It is super convenient to install and setup.

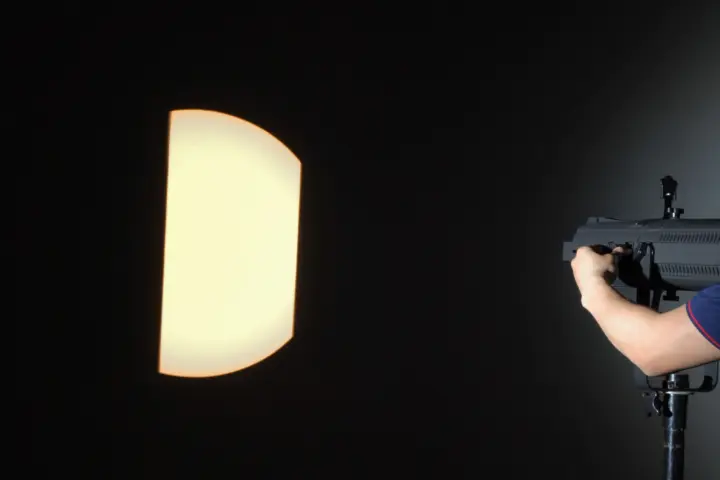

HD optics: Honor 100 Zoom come with HD optics, which create clean shut beam.

Single side zoom: Improvement made for the new version. With the Honor 100 Zoom, you can adjust it’s zoom from only one side.

PowerCon TR1: The Honor 100 Zoom is so small that we do not have enough space to install powercon in out connector. However, a powercon tr1 connector is installed, this makes possible to power daisy chain via a Y split power cable if needed.

E-size gobo: Honor 100 Zoom support gobo holder of E-size(37.5mm diameter).

Key features

  • 100W COB white LED
  • 3200K or 5600K color temperature
  • CRI 94, CQS over 91
  • HD optical system, clean shutter cuts beam
  • 15° - 30° zoom lens, single side zoom
  • Flicker free with selectable PWM
  • Rotary, key, DMX control of dimmer
  • Intelligent fan, silent operation for studio and theatre use
  • Super compact body, only 3.5 kg, easy to install and setup
  • Powercon T1 in, DMX in & out
Datasheet
Categories: LED ellipsoidal, Theatre lights

Specifications

Physical

  • Length: 459 mm (18 in.)
  • Width: 221 mm (8.7 in.)
  • Height: 342 mm (13.5 in.)
  • Net Weight: 3.5 kg (7.7 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1/2/3
  • Dimmer frequency: 1.2 – 24.0 KHz
  • Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
  • Fan mode: studio mode for super silent operation(reduced power, even lower fan speed)

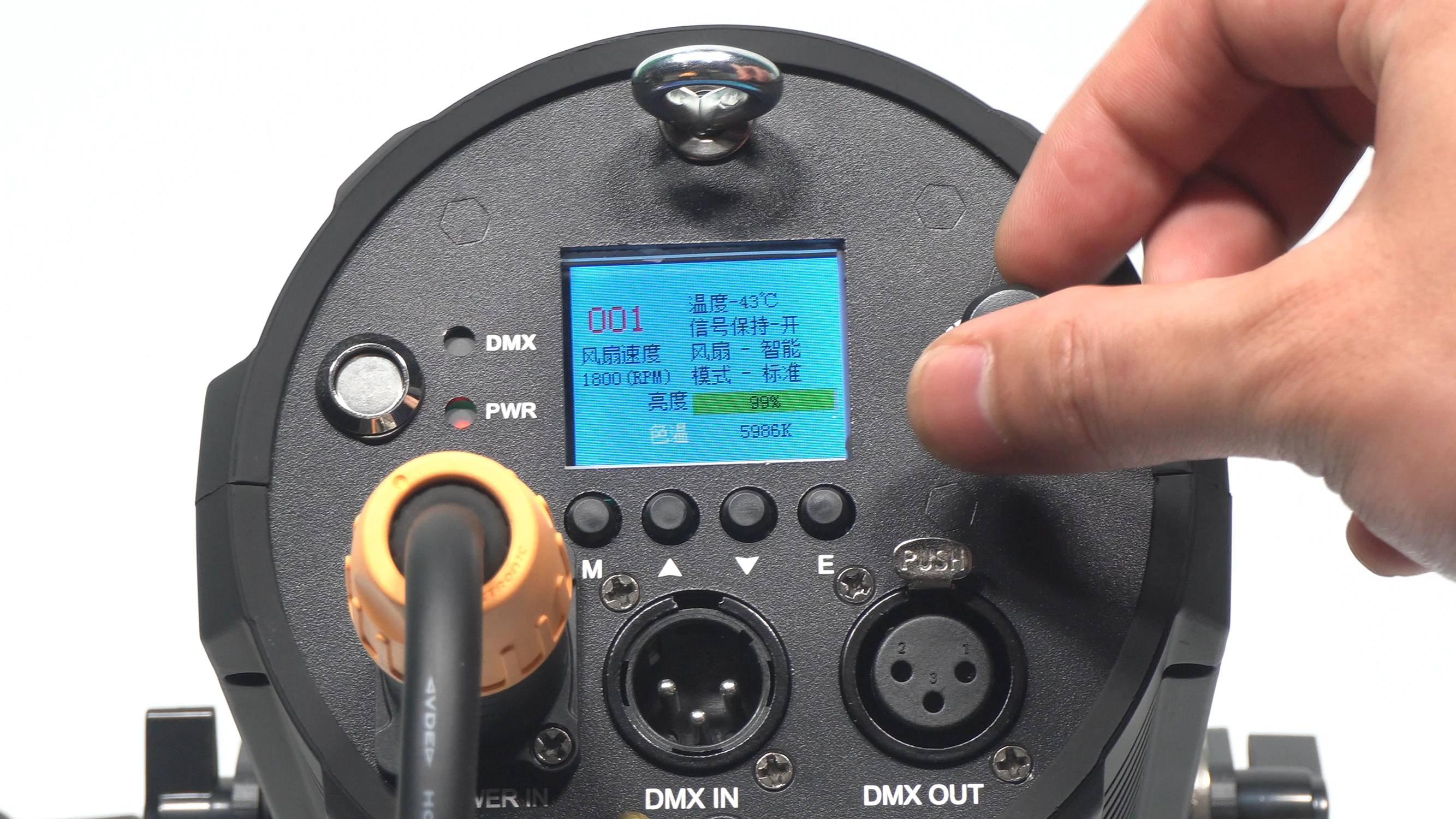

  • DMX address setting: Control panel with LCD display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 100W COB LED
  • Color temperature: 3,200K or 5,600K optional
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 15° – 30° manual zoom

Photometric data

  • 5600K 1,100lux @5m 15°
  • CRI (Color Rendering Index) : >94 (5,600K)
  • CQS (Color Quality Scale): >91 (5,600K)
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >92 (5,600K)
  • TM-30 Rg (IES TM-30-15 Gamut Index): >99 (5,600K)
  • TLCI (Television Lighting Consistency Index): >97 (5,600K)
  • For more information, please refer to the datasheet

Construction

  • Housing: Engineering grade flame-retardant plastic
  • Color: Black

Gobos & color frame

  • Gobo size: OD 38mm
  • Color frame size: 100 x 100mm (3.9 in. x 3.9 in.)

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in/thru: PowerCon TR1 in
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 100 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • Pending

Included parts

  • Color frame
  • Safety cable
  • User manual

Optional parts

  • Mounting bracket
  • Gobo holder

*Specifications subject to change without notice.*

Accessories

  • Color frame

    Color Frame Honor Profiles

  • Power cable

    Seetronic Ip Rated Power In

  • Safety cable

    Safety Cable silver

Documents

Get a quote

Frequently asked questions

  • Yes, we do have tunable white version – CTC 100 Profile.

  • Gobo holder is optional part. If you need, please contact us for purchase.

  • Yes, color frame is standard part, included in every delivery.

  • Yes, our fixture support wide range voltage which is 100 – 240V.

  • Yes, every unit have plug, and we’ll prepare according which type of plug you need.
