Theatrical & Studio

Order Code:
62901

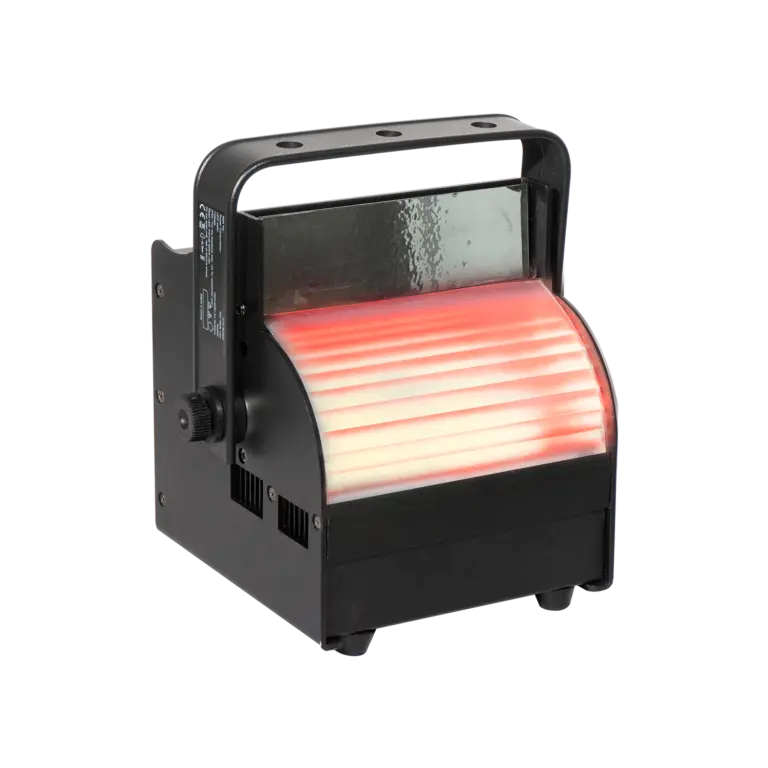

CYC RGBW

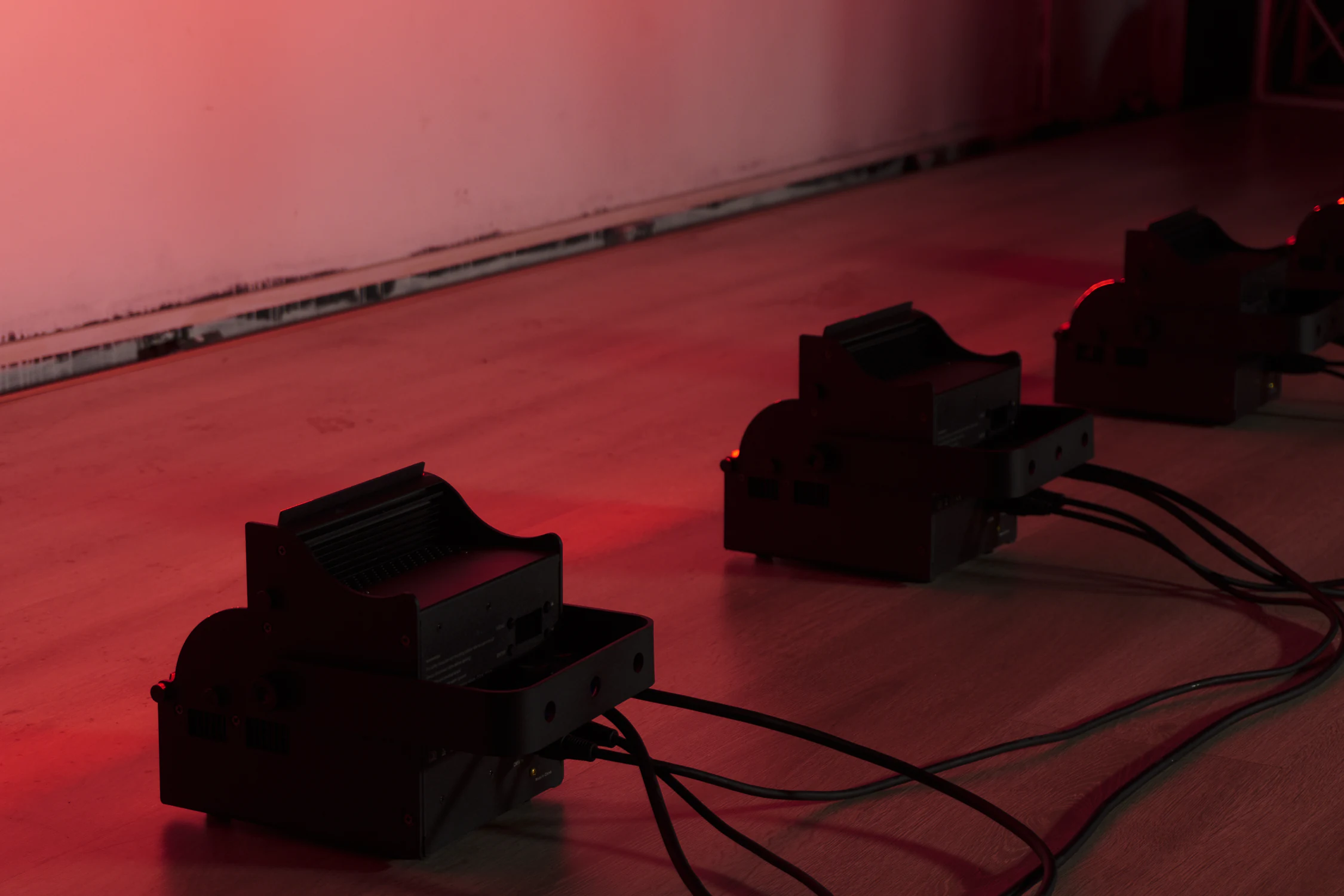

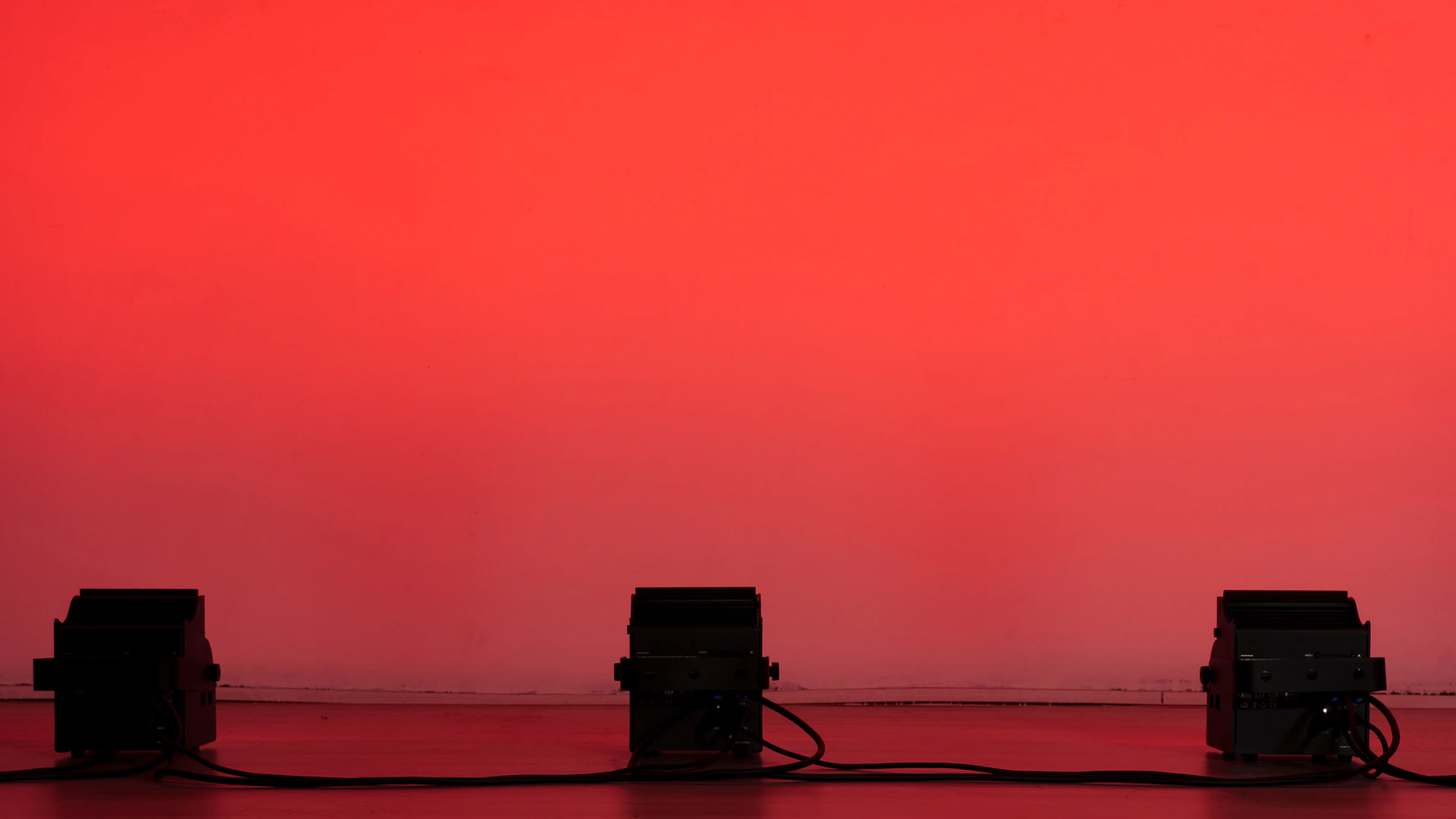

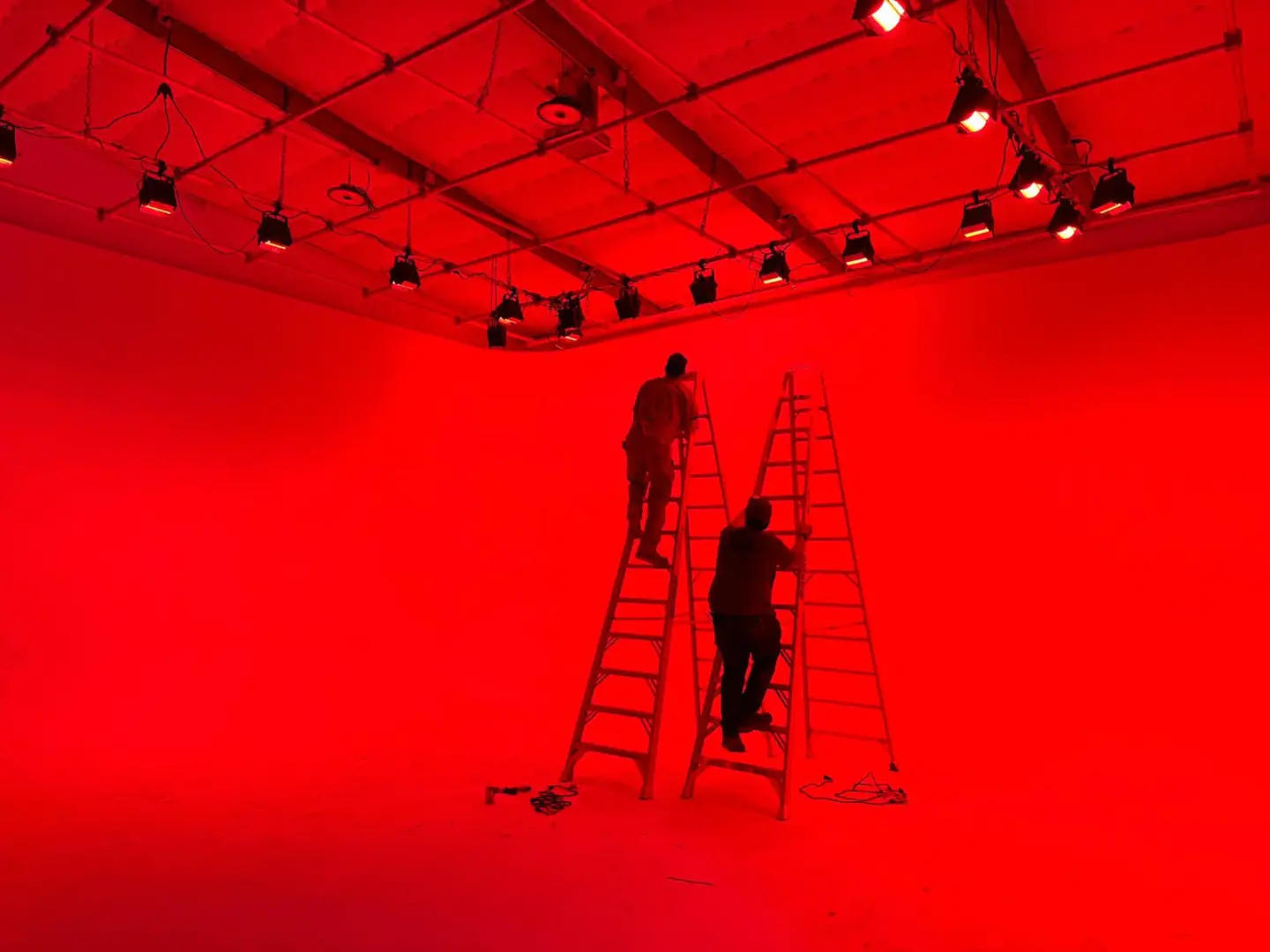

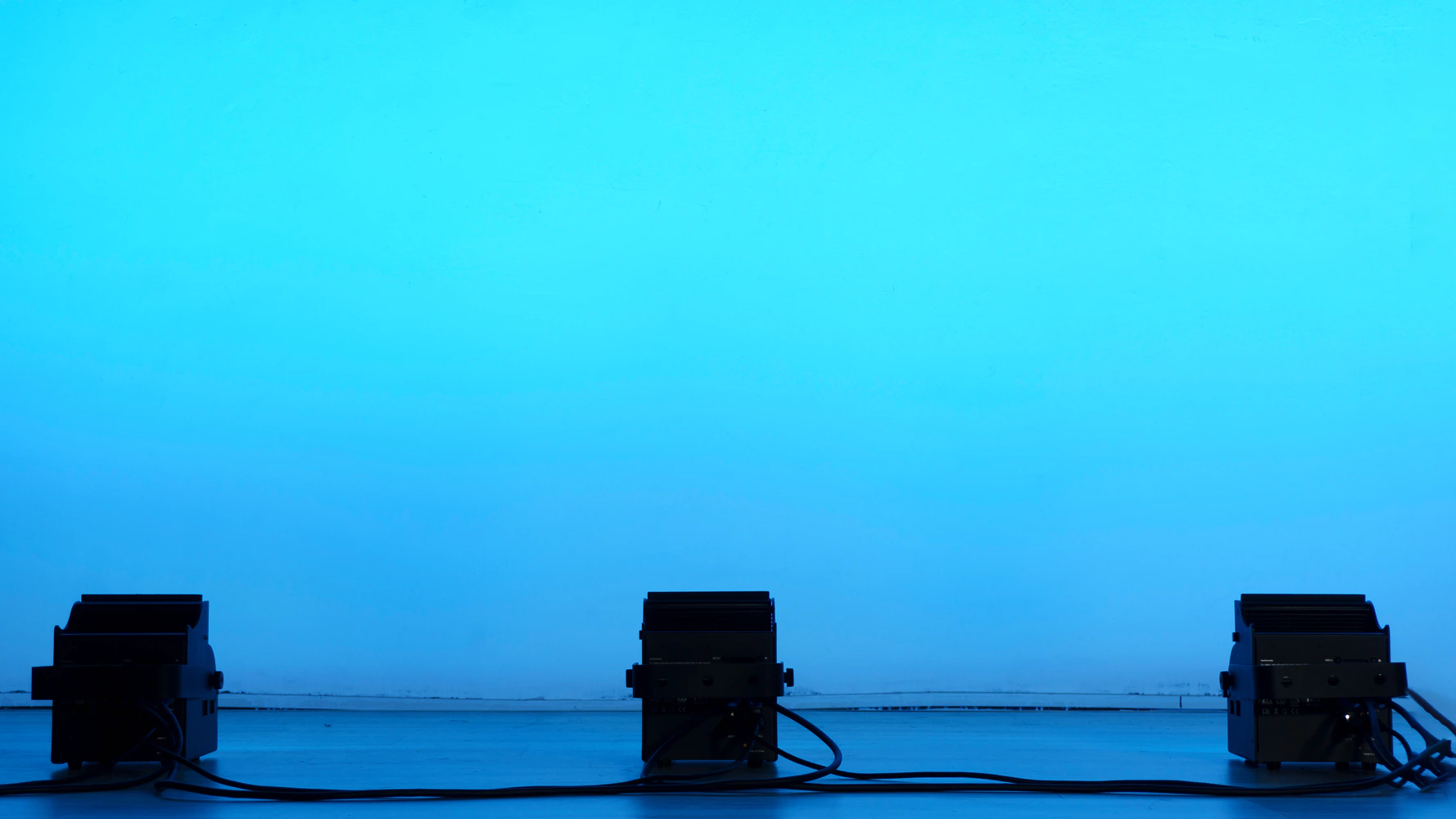

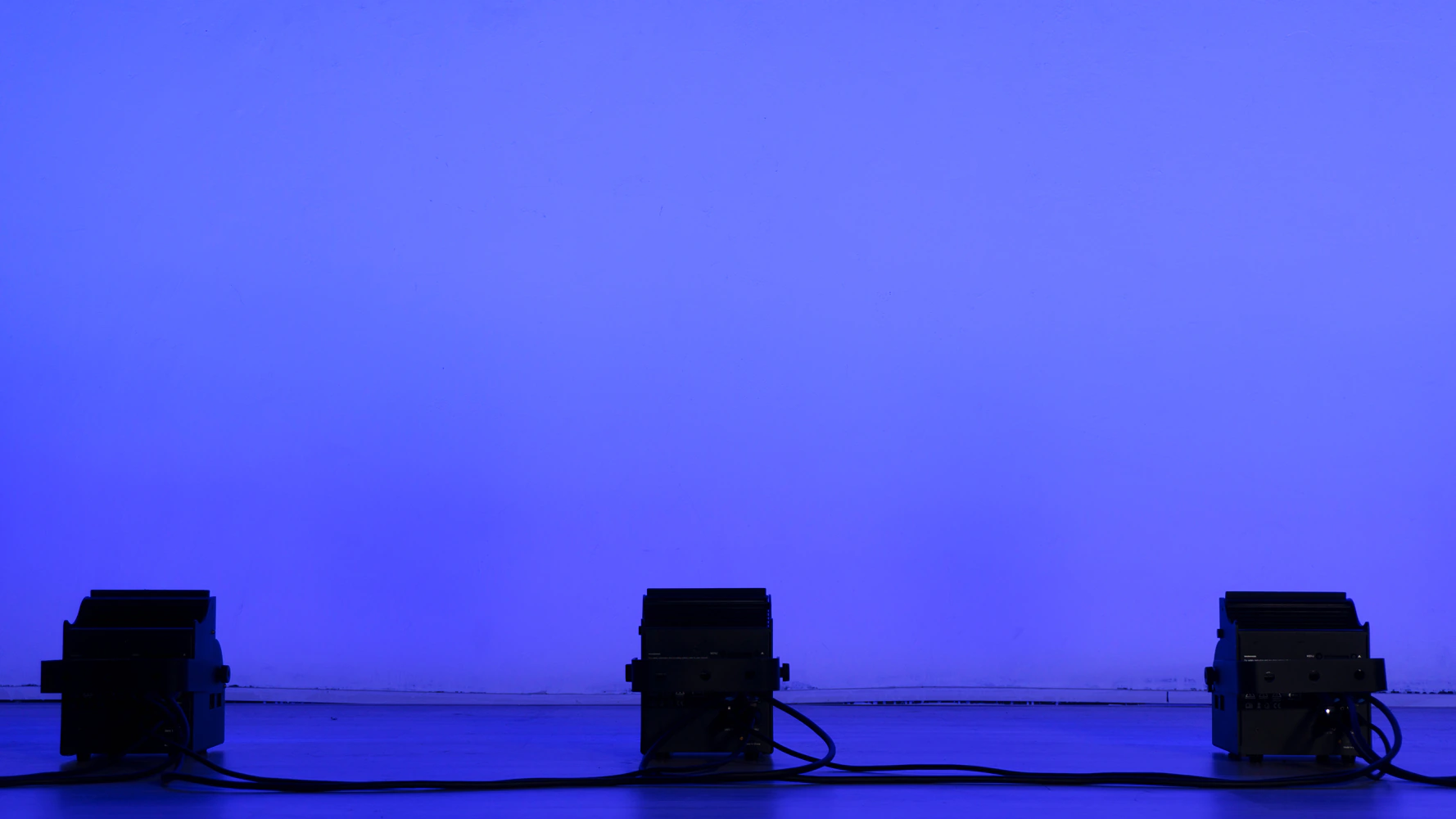

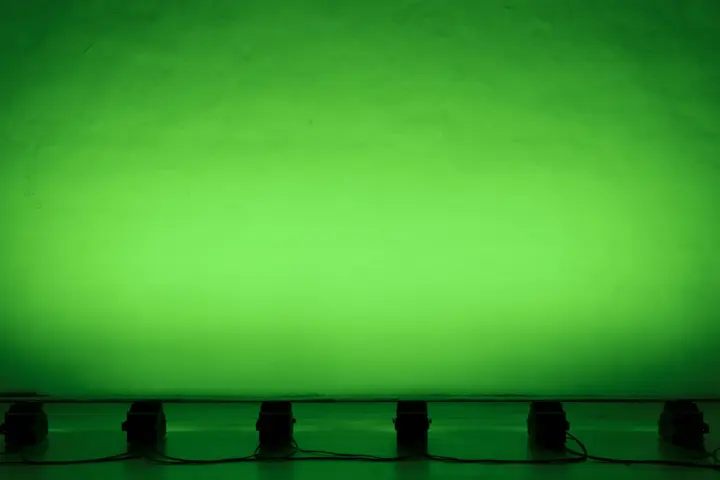

Equiped with high power RGBW LEDs, the CYC RGBW is a cyclorama fixture with even and wide wash of wall, cyclorama or curtains. Various built-in programs, small size body makes it easy to install and use.

Key Features
  • 175Watt LEDs
  • RGBW color mixing
  • Super bright, uniform coverage and even lighting
  • Compatible with DMX and RDM protocols
  • Various preset programs
  • Dimmer curves selectable
  • Flicker free operation
  • LCD display
  • Easy to install and setup
  • PWM 1.2 - 20 KHz selectable
Share to:

RGBW mixing

Video flicker free

Silent operation

PowerCon connection

Video

SPECIFICATIONS

PHYSICAL
Length: 193 mm (7.6 in.)
Width: 190 mm (7.5 in.)
Height: 266.5 mm (10.5 in.)
Net Weight: 2.7 kg (5.9 lb.)

DYNAMIC EFFECTS
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and action, random strobe

CONTROL AND PROGRAMMING
Control options: DMX, RDM, stand-alone
DMX channels: 2/4/6/8
Dimmer frequency: 1.2 – 20.0 KHz
Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
DMX address setting: Control panel with LCD display or via RDM
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
RDM function available for addressing and settings

OPTICS
Light source: 175W LED
LED color: RGBW
Color temperature: 3200K / 5600K
Minimum LED lifetime: 50,000 hours

CONSTRUCTION
Housing: Stretch aluminum
Color: Black

INSTALLATION
Mounting: Adjustable bracket
Enviroment:: IP20 indoor use
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

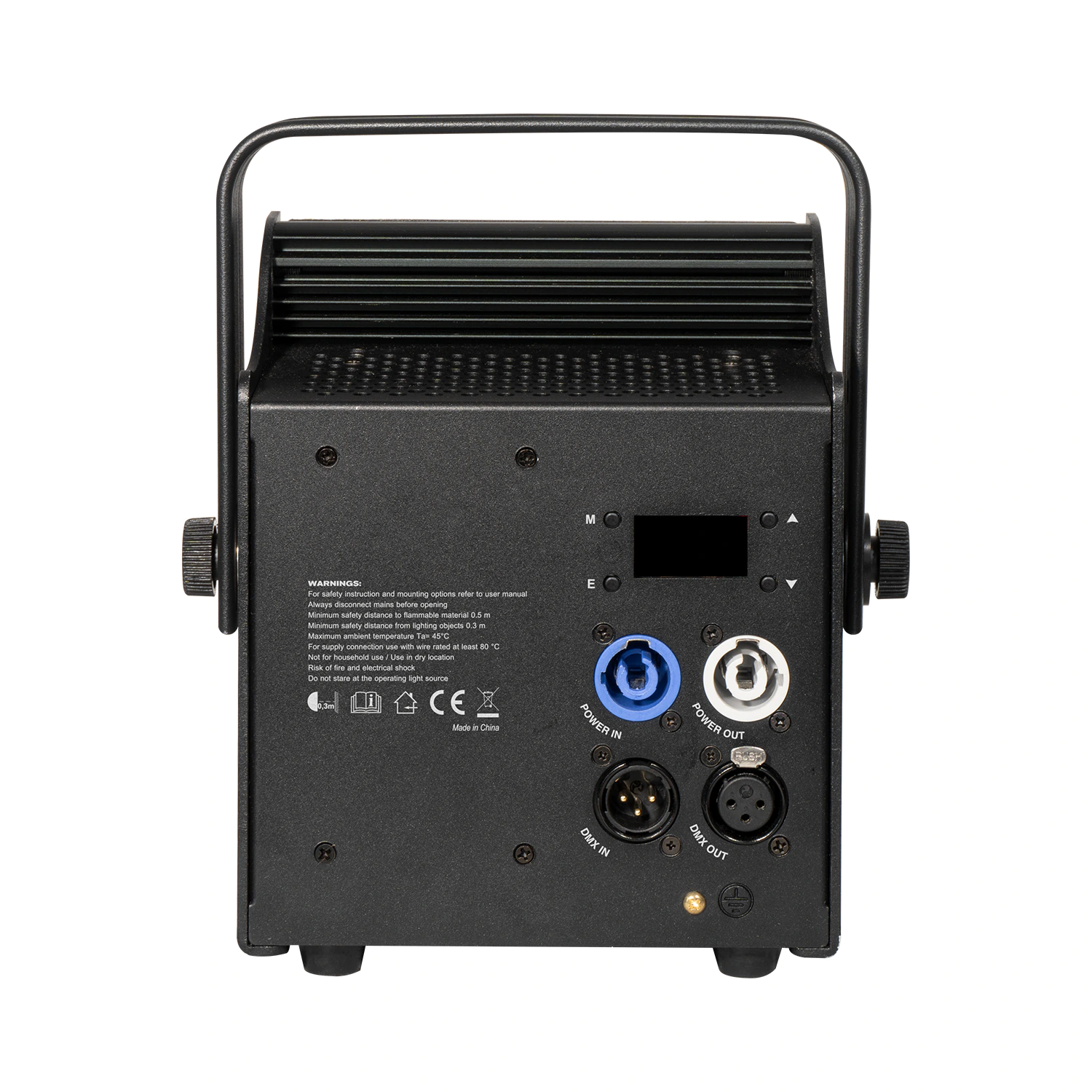

CONNECTIONS
AC power in, thru: PowerCon in & thru
DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz, 175 W, PF 0.96
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)

APPROVALS
EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

INCLUDED PARTS
Safety cable
User manual

OPTIONAL PARTS
Mounting bracket

*Specifications subject to change without notice.*

ACCESSORIES

DOWNLOAD

ItemTypeFileLanguageDownloadVersionUpdated
Leaflet - CYC RGBWDatasheetpdfENDownload1.0Feb 27, 2021
2D Dimensions - CYC RGBWIllustrationspdfENDownload1.0Feb 27, 2021
