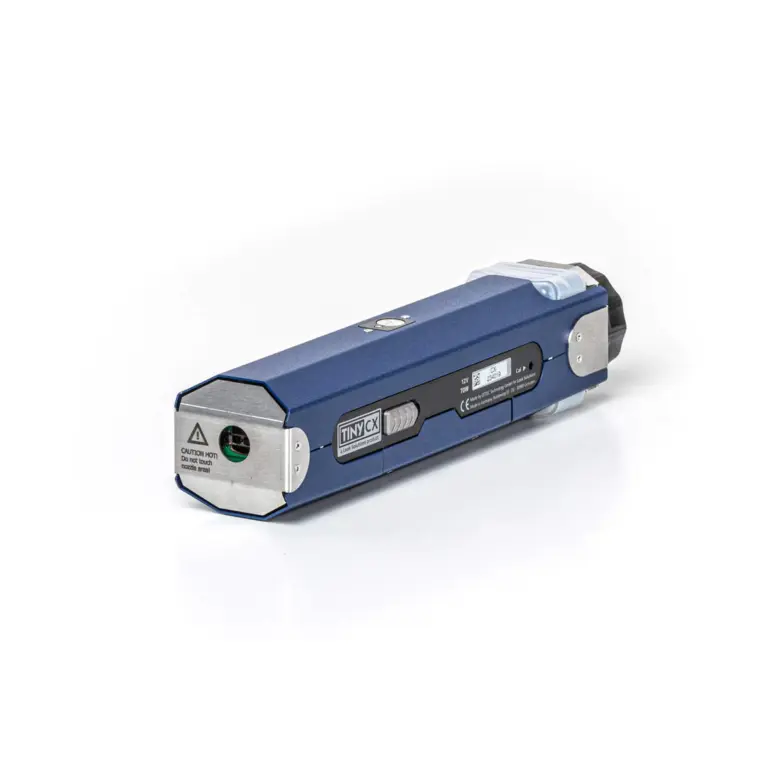

Tiny CX

Based on the current digital control technology we have designed the Tiny CX. Its easy handling and quick start-up is outstanding.

  • Small dimensions, light weight
  • Battery supplies energy only when necessary
  • Warm up time less than 1 second
  • Continuous output
  • Lowest fluid consumption
  • Changeable battery
  • Triggered with the start button or the optional radio remote, DMX-converter and timer
  • Manufactured in Germany
Technical data
Accessories And Fluids

Technical data

ProcedureVaporizing fog generator
Power requirement70 Watt
Voltage12 V with battery
Warm up time1 sec.
Fluid consumption2.3 ml/min. at continuous output
Fluid tank capacity50 ml
Fogging timeprogrammable (with cable remote), approx.15min. continuous output or 200 x 5 second bursts
Temperature controlMicroprocessor controlled
Control3.5 mm mini stereo jack socket
Dimensions (L x W x H)25 x 5.3 x 5.5 cm
Weight630 g inkl. Battery
Delivery includesinternal fluid tank 50 ml, Battery pack 11.1 V, Charger, 250 ml Tiny-Fluid, Carrying case


  • Radio remote
  • Duct adaptor
  • Y-Splitter
  • DMX-Converter
  • Timer


  • Tiny-Fluid
