Space Mini Profile 20

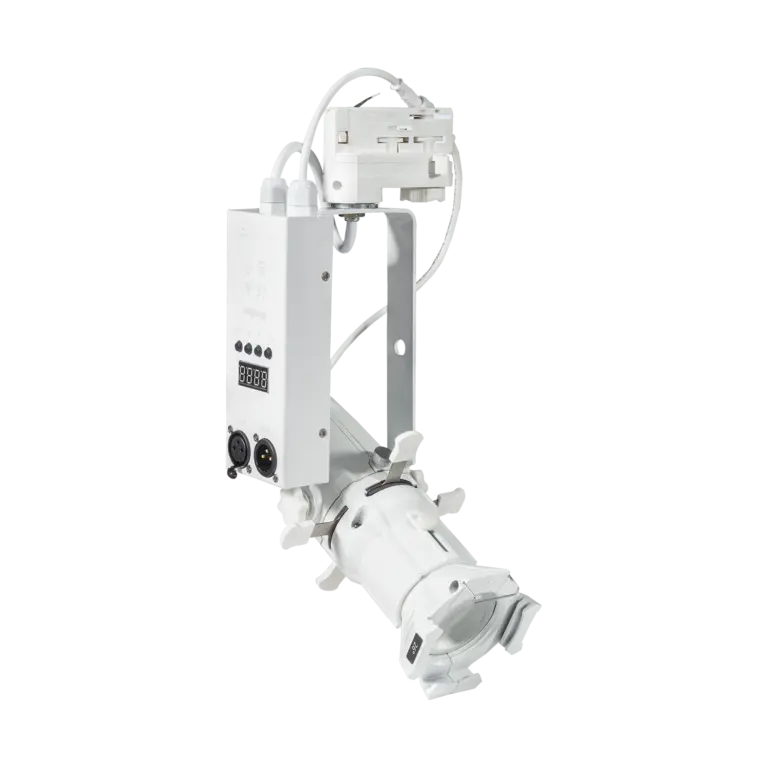

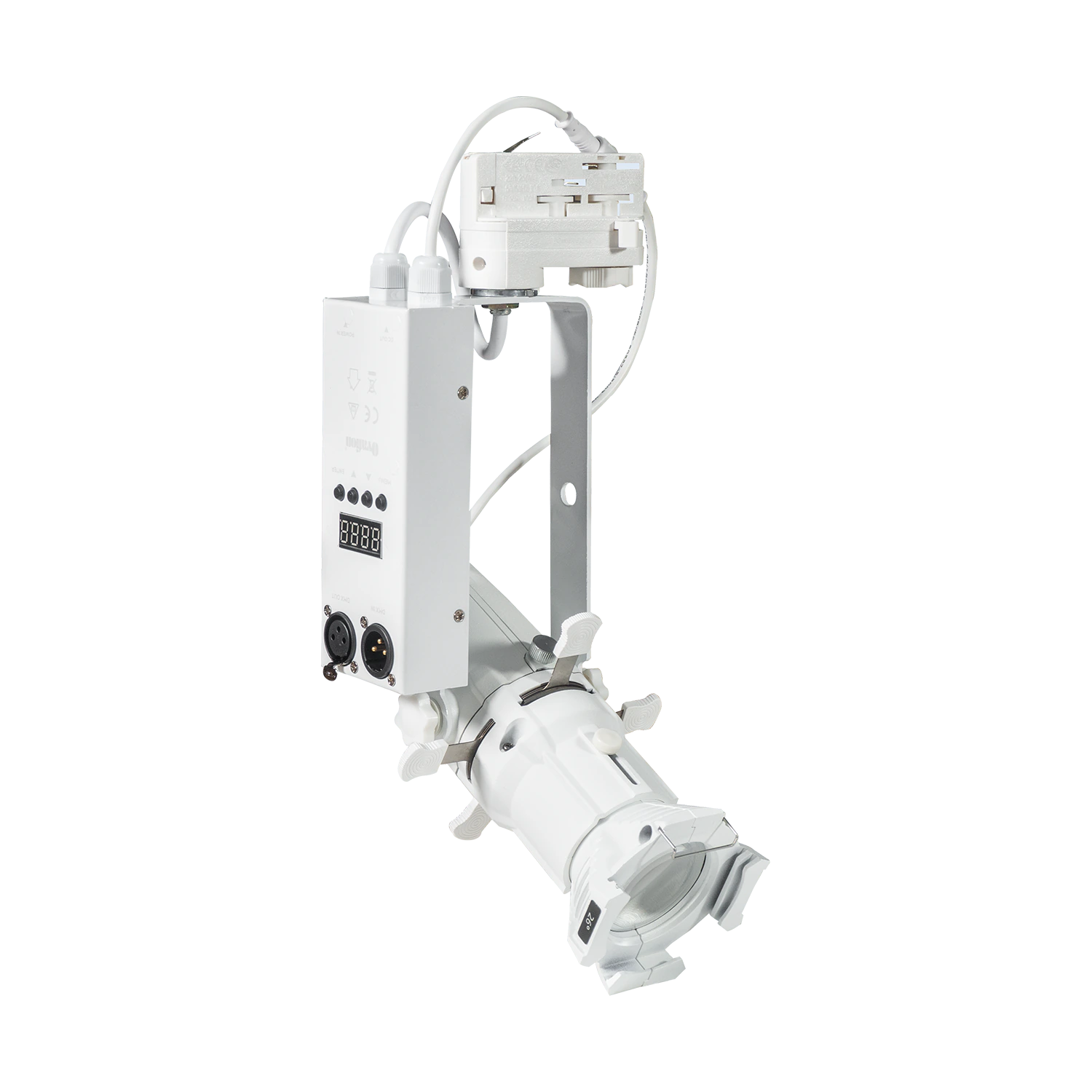

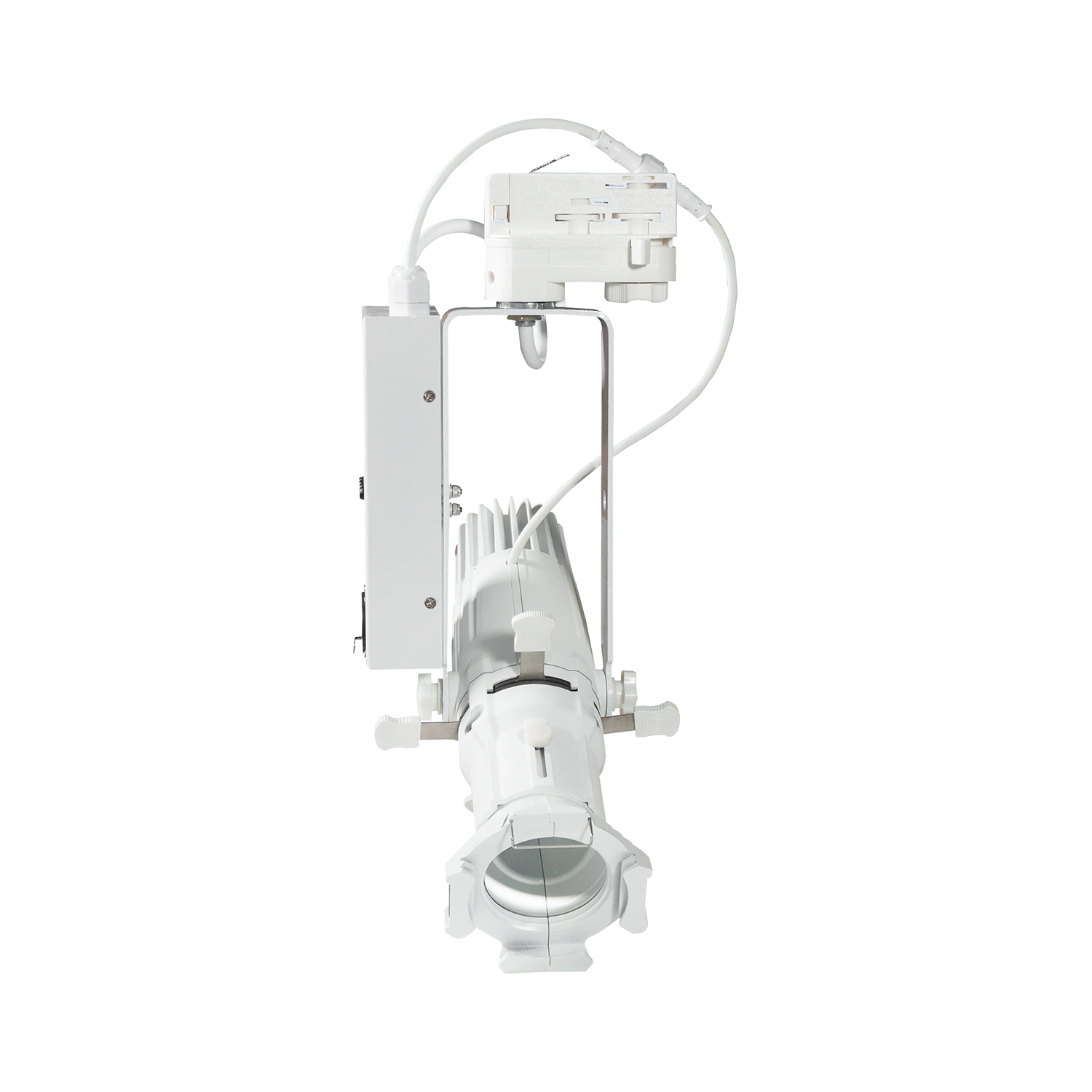

20Watt track mount LED gallery light

Equipped with 4 wire track adapter. The Space Mini Profile 20 is a 20W COB LED gallery light(framing projector), features high CRI of 92, 19°, 26°,36°, 50° lens optional, compatible with E sized gobo. The four shutters make it convenient to control the shape of light.

Key features

Datasheet
Categories: Track lightsTags: Gallery light

Product performance

Specifications

Physical

  • Length: 330 mm (12.9 in.)
  • Width: 200 mm (7.9 in.)
  • Height: 90 mm (3.5 in.)
  • Net Weight: 1 kg (2.2 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 20W COB LED
  • Color temperature: 3,200K 4,000K or 5,600K optional
  • Minimum LED lifetime: 50,000 hours
  • Fixed lens tube option: 19°, 26°, 36°, 50°

Photometric data

  • 3,200K 276lux @5m 15°
  • CRI (Color Rendering Index) : >92
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >94
  • TM-30 Rg (IES TM-30-15 Gamut Index): >102
  • TLCI (Television Lighting Consistency Index): >97
  • For more information, please refer to the datasheet

Construction

  • Housing: Die-casting aluminum

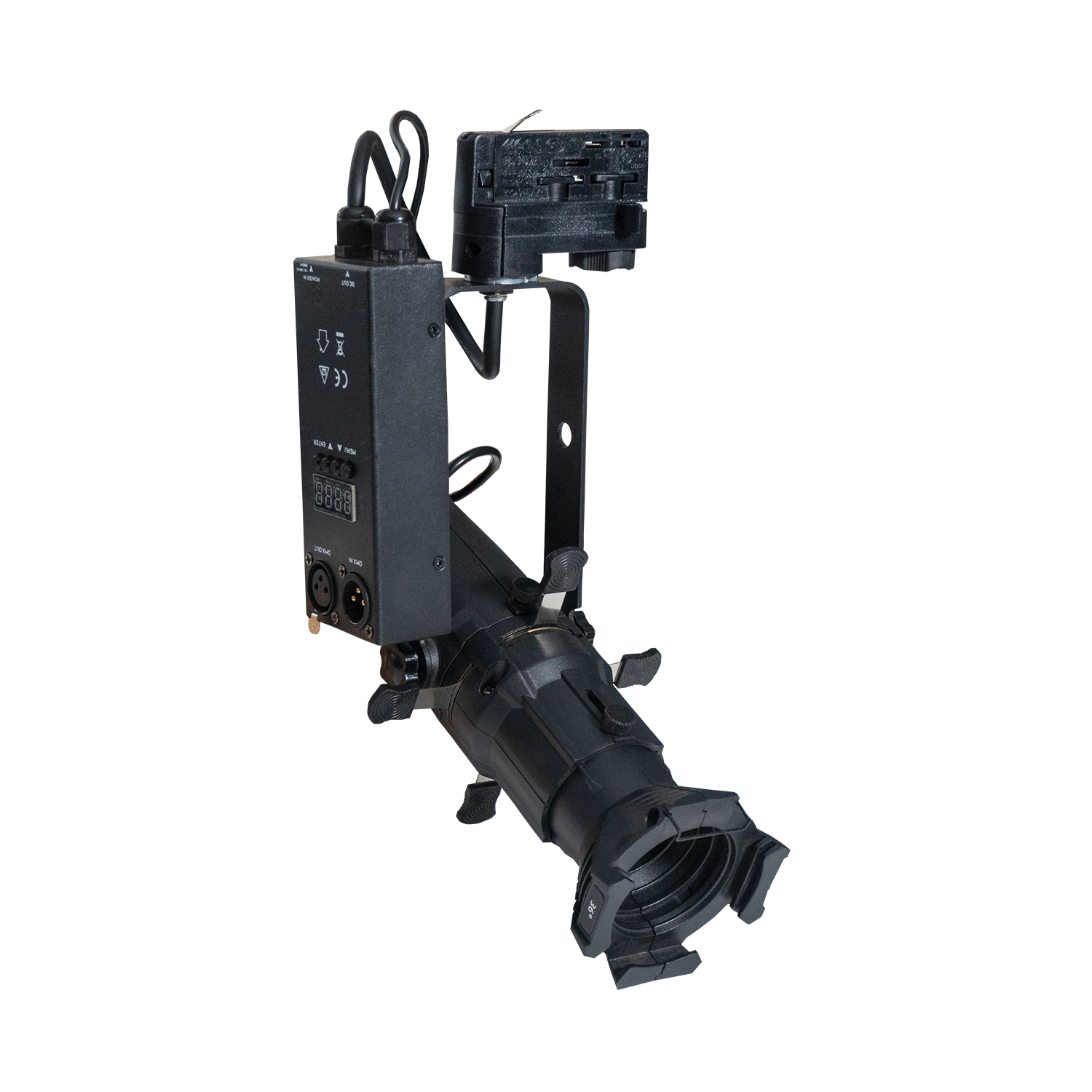

  • Color: Black or white variant

Gobos & color frame

  • Gobo size: E-sized, OD 37.5mm, image area 25.4mm, thickness 1.4mm max.
  • Color frame size: 60 x 60mm (2.3 in. x 2.3 in.)

Installation

  • Mounting: track adapter
  • Environment: IP20 indoor use
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • Power connection: track adapter (Global, Eutrac, Staff, Ivela, Nuco and other main stream adapter compatible)
  • DMX & RDM data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 110V or 240V AC

Typical power and current

  • 230 V, 50 Hz: 20Watt max
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Convection
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Color frame
  • User manual

Optional parts

  • Gobo holder

*Specifications subject to change without notice.*

Accessories

  • Gel frame for Mini Profile 20 series

    Color frame mini profile 20
  • Gobo Holder for Mini Profile 20

    E sized gobo holder
