Space Mini Fresnel 50T

50Watt track mount LED fresnel tunable white

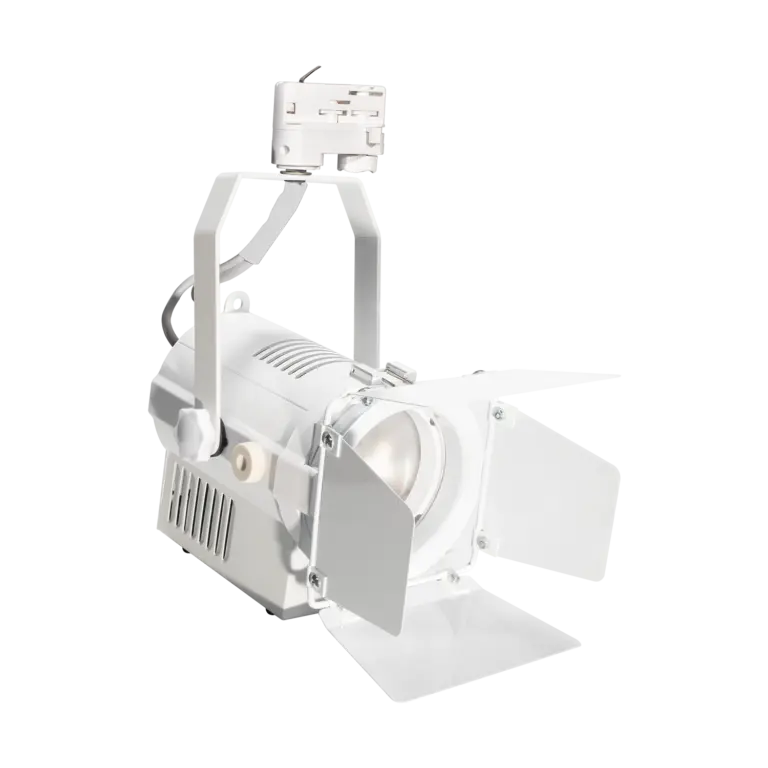

The Space Mini Fresnel 50TZ is a compact LED fresnel track light. It equipped with 4 wire track adapter and powered by 50W warm white and 50W cold white tunable LED. 25° – 80° zoom range, 95CRI, 90 R9, rotary control of dimmer and color temperature. It deliver a smooth, soft flat field of light. Barn door included for the shape of the light.

Key features

  • 50W warm white + 50W cool white
  • 2700K ~ 6500K tunable
  • CRI 95, R9≥90, TLCI 98, CQS 96
  • 25° - 80° manual zoom
  • Super compact, easy for set up
  • 4-leaf rotatable barndoor included
  • DMX control available(DMX cable linked separately)
  • Available in black or white housing
  • Universal compatible, work with Global, Eutrac and other main stream four wire track
Datasheet
Categories: Track lights

Product performance

Specifications

Physical

  • Length: 230 mm (9.1 in.)
  • Width: 156 mm (6.1 in.)
  • Height: 279 mm (10.9 in.)
  • Net Weight: 2.2 kg (4.8 lb.) barndoor included

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1/2/3/5
  • Dimmer frequency: 1.2 – 24.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings
  • Stand-alone programming: Control panel with LED display, preset, color marco available

Optics

  • Light source: 50W WW + 50W CW COB LED
  • Color temperature: 2,700K – 6,500K optional
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 25°- 80° mnual

Photometric data

  • 2700K 946lux @3m 25°
  • 6500K 1312lux @3m 25°
  • Full on 1069lux @3m 25°
  • CRI (Color Rendering Index) : >95, R9>90
  • CQS (Color Quality Scale): >96
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >92
  • TM-30 Rg (IES TM-30-15 Gamut Index): >98
  • TLCI (Television Lighting Consistency Index): >98
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black or white variant

Installation

  • Mounting: track adapter
  • Environment: IP20 indoor use
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • Power connection: track adapter (Global, Eutrac, Staff, Ivela, Nuco and other main stream adapter compatible)
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 110V or 240V AC

Typical power and current

  • 230 V, 50 Hz: 1.2 A, 38 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Rotating barndoor
  • Color frame
  • User manual

Optional parts

  • Safety cable

*Specifications subject to change without notice.*

Accessories

  • 4-leaf rotating barndoor

    Barndoor Mini Fresnel Series

  • Color frame

    Color Frame Mini Fresnels

  • Safety cable

    Safety Cable silver

Documents

Get a quote

Frequently asked questions

  • We use 4 wire 3 circuits track adapter or 4 wire 2 circuits adapter.

  • Yes, barndoor is included in delivery.

  • Yes, color frame is standard part, included in every delivery.

  • Yes, our fixture support wide range voltage which is 100 – 240V.
