Solar CYC

White LED cyclorama light

Solar CYC is a cyclorama fixture with even and wide wash of wall, cyclorama or curtains. Equiped with solar spectrum LEDs, 98 CRI, 93 R9 and 98 TLCI, it is perfectly designed for TV studio, video shooting. First time in the industry, we bring healthy LED illumination concept into theatre and studio lighting field.

  • 200Watt white LEDs
  • 3200K or 5600K version optional
  • CRI 98, R9≥93, TLCI 98
  • Compatible with DMX and RDM protocols
  • Dimmer curves selectable
  • Flicker free operation
  • LCD display
  • Easy to setup
  • PWM 1.2 – 24.0 KHz selectable
Instand quote
Solar CYC main view

Product Gallery

Specifications

Physical

  • Length: 193 mm (7.6 in.)
  • Width: 190 mm (7.5 in.)
  • Height: 266.5 mm (10.5 in.)
  • Net Weight: 2.7 kg (5.9 lb.)

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 1
  • Dimmer frequency: 1.2 – 24.0 KHz
  • Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
  • DMX address setting: Control panel with LCD display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 200W LED
  • Color temperature: 3200K or 5600K optional
  • Minimum LED lifetime: 50,000 hours

Construction

  • Housing: Stretch aluminum
  • Color: Black

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

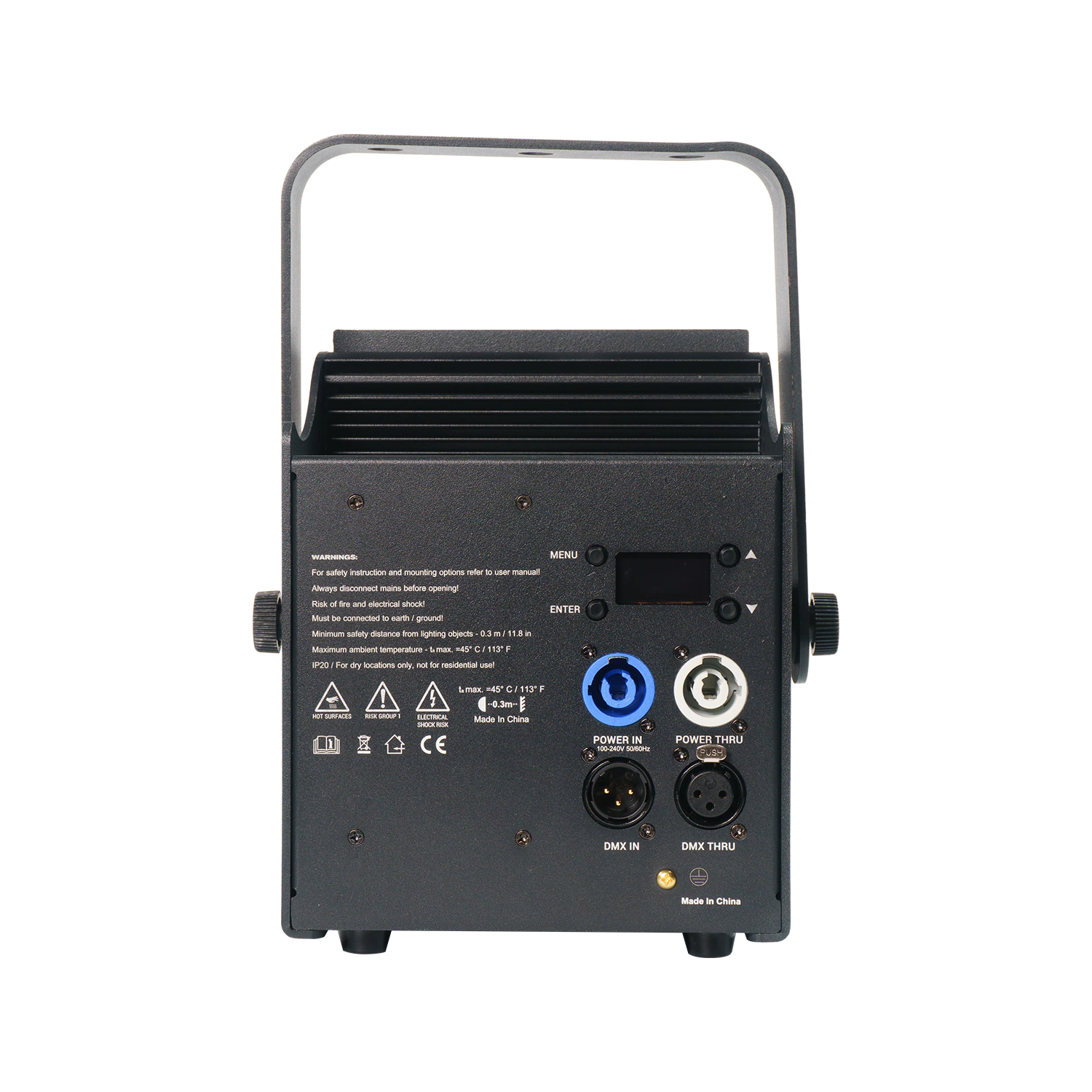

Connections

  • AC power in, thru: PowerCon in & thru
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz, 200 W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

Included parts

  • Safety cable
  • User manual

Optional parts

  • Mounting bracket
Download PDF datasheet*Specifications subject to change without notice.*

Accessories

Get a Quote

Frequently asked questions

  • Can you change the powercon to true 1 connector?

    Yes, we can install Seetronic IP rated connector. The cost will be little bit more.

  • Does it work in 110V?

    Yes, our fixture support wide range voltage which is 100 – 240V.

  • Does the power cable have plug?

    Yes, every unit have plug, and we’ll prepare according which type of plug you need.
