Reborn 200

LED retrofit for Source Four and Source Four Jr ellipsoidal

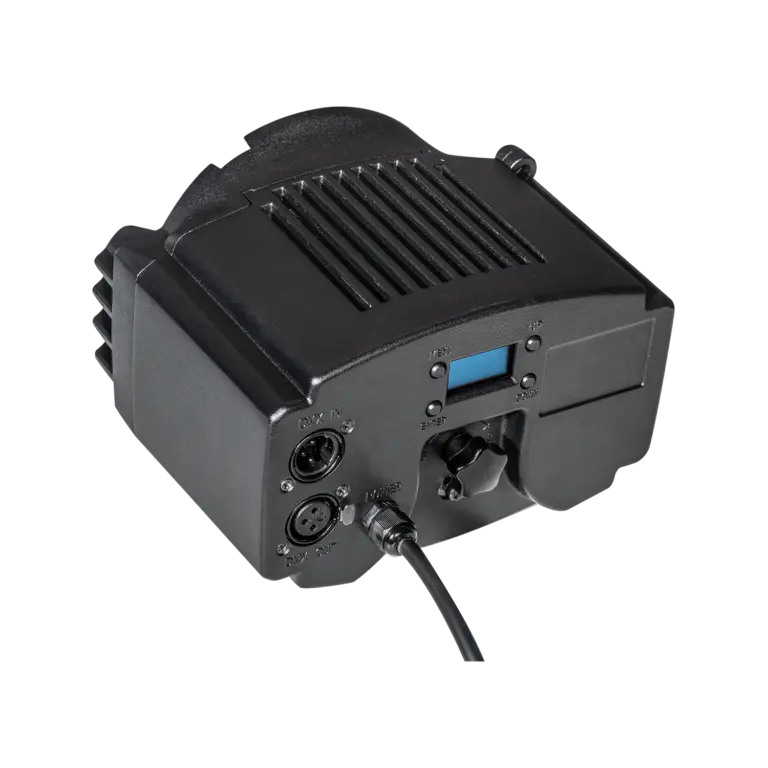

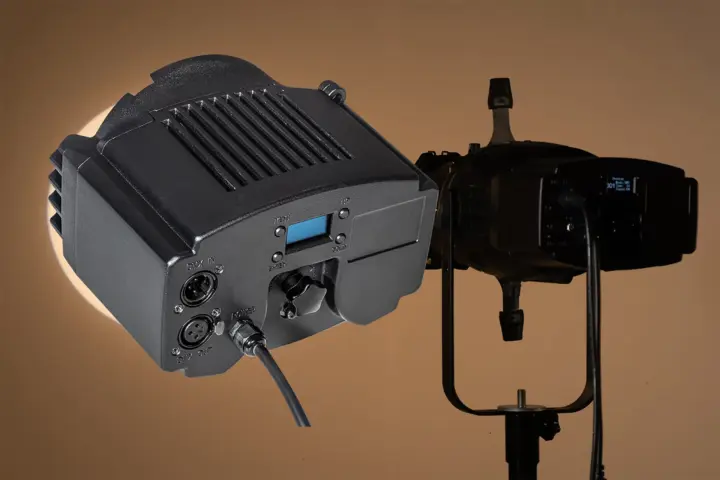

Reborn 200 is a LED retrofit for Source Four profile. Upgrade your source 4 profile in just seconds. Features high CRI, bright output and low heat, energy save, clean and even light field, RDM function, long life LED, LCD display, XLR in & out, 100-240V wordwide voltage.

Upgrade in seconds – It is so easy to have your source four upgraded to Reborn 200 – the LED source. Remove the HPL lamp socket, install the fix bolt, and then install the LED retrofit.

HPL 575 equivalent – The Reborn 200 is equipped with 175Watt COB LED. Compare to the HPL lamp, it has low power consumption but powerful output. The brightness is equivalent to the HPL 575.

Color temperature – Reborn 200 has color temperature of 3200K, 4000K and 5600K selectable.

Color rendition – Great color rendering for the fixture. CRI and TLCI up to 98(3200K version, in 4000K and 5600K version, CRI over 92, TLCI over 92).

DMX & RDM support – DMX 512 and RDM support for the fixture. 3-pin DMX in & out(5-pin on request), RDM function is a great help to work with your fixtures which is in the air while people are on the ground.

Dimmer frequency – PWM selectable, dimmer frequency 1.2 KHz – 20.0 KHz selectable to make sure flicker free in all conditions.

Dimmer curves – Built-in dimmer curves include standard, Stage, TV, Architecture, Theatre.

Source 4 jr LED conversion kit – The Reborn 200 can compatible with Source 4 junior, which means you can upgrage your source 4 junior to LED source now(Notice: the version for source 4 junior will be a bit different in appearance, please do let us know if you need version for source 4 jr).

Key features

  • 200Watt LED light source, equivalent of 575W lamp
  • Color temperature 3200K, 4000K, 5600K optional

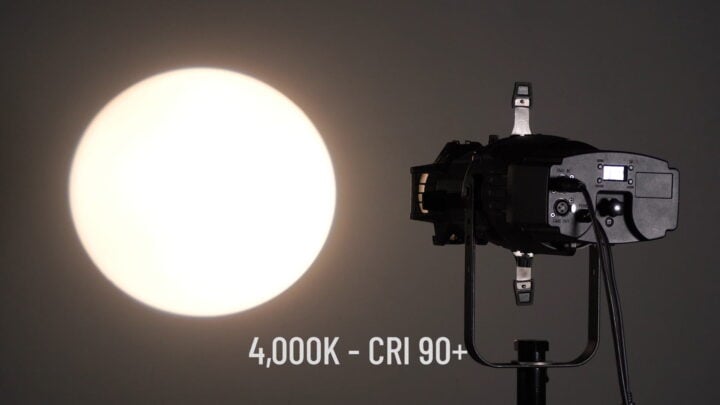

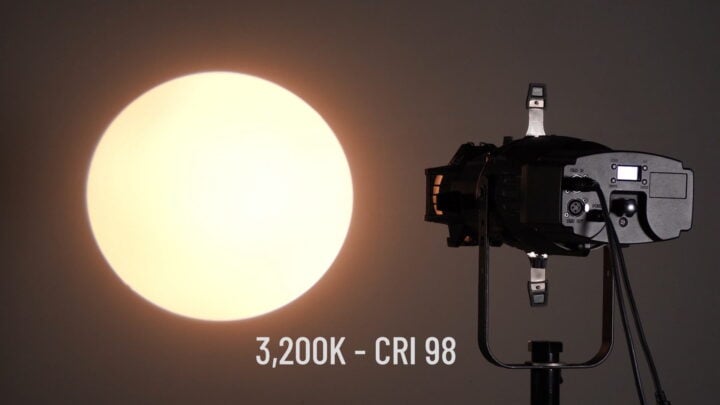

  • CRI≥98, R9≥93, TLCI 98 (3200K), CRI 90+ (4000K, 5600K)
  • 3-pin XLR in & out signal connection(5-pin optional)
  • Dimmer curves selectable
  • Studio mode for super silent operation
  • Wide voltage range 100-240V
  • Dimmer frequency 1.2 - 20.0KHz
  • Smooth dimming, video flicker free
  • LCD display, user friendly interface
  • Easy to setup, seconds to upgrade
  • Intelligent temperature control, silent operation
  • Tunable white version selectable - Reborn 200T
Datasheet
Categories: LED ellipsoidal, Theatre lights

Product performance

Specifications

Physical

  • Length: 195 mm (7.7 in.)
  • Width: 141 mm (5.6 in.)
  • Height: 186 mm (7.3 in.)
  • Net Weight: 3 kg (6.6 lb.)

Dynamic effects

  • Electronic dimming: 0 – 100%

Control and programming

  • Control options: DMX, RDM
  • DMX channels: 1
  • Dimmer frequency: 1.2 KHz, 1.6 KHz, 2.4 KHz, 4.0 KHz, 6.0 KHz, 20.0 KHz
  • DMX address setting: Control panel with LED display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 200W COB LED
  • Color temperature: 3,200K, 4,000K or 5,600K optional
  • Minimum LED lifetime: 50,000 hours

Photometric data

  • 3,200K 1180lux @5m 26°
  • 4,000K 1490lux @5m 26°
  • 5,600K 1390lux @5m 26°

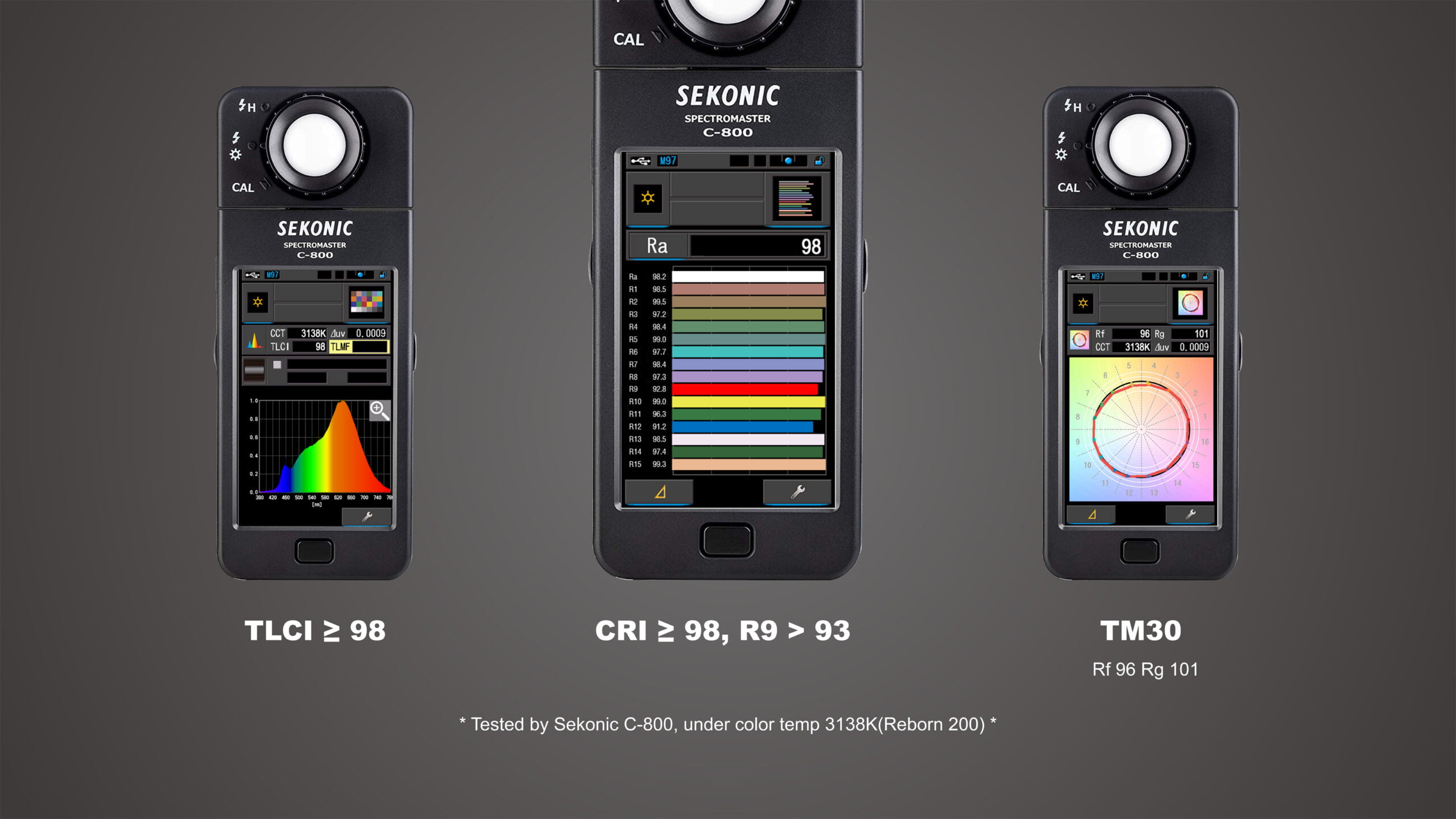

  • CRI (Color Rendering Index) : >98(3,200K), >92(4,000K, 5,600K)
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >96(3,200K), >91(4,000K, 5,600K)
  • TM-30 Rg (IES TM-30-15 Gamut Index): >101(3,200K), >98(4,000K, 5,600K)
  • TLCI (Television Lighting Consistency Index): >98(3,200K), >92(4,000K), >95(5,600K)
  • For more information, please refer to the datasheet

Construction

  • Housing: Die-cast aluminum
  • Color: Black

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in/thru: Dedicated power in
  • DMX & RDM data in/thru: 3-Pin XLR in & out

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 200W max.
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • CE

Included parts

  • Power cable
  • Fix bolt
  • Safety cable(optional)

Patent

  • ZL 2019 3 0166337.3

*Specifications subject to change without notice.*

Accessories

  • Fix bolt

    Fix bolt for reborn 200

  • Power cable for Reborn 200

    Power cable reborn 200

  • Safety cable

    Safety Cable silver

Documents

Get a quote

Frequently asked questions

  • No, it is not compatible with Source 4 jnr.

    Yes, our Reborn 200T do have a version that can support Source 4 jr. Note it will be a little bit different in appearance since the Source 4 jr is a bit different in install.

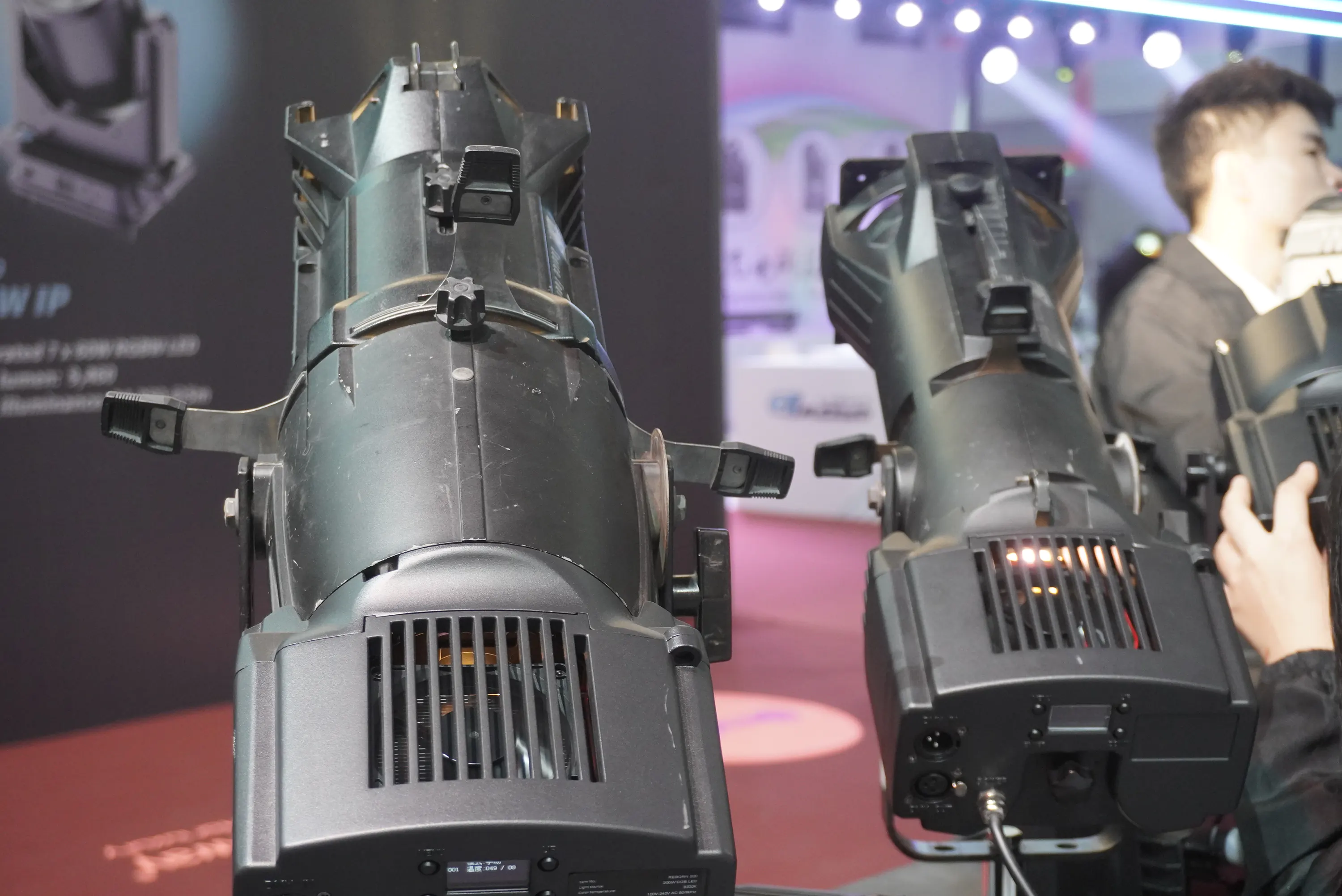

    Reborn 200 On Source 4 And Source 4 Junior

  • Unfortunately no, because of the size limit, there is no space anymore inside to mout powerCon in & out socket, not even powerCon in or ture 1.

  • It does have fan inside to make sure the cooling. It is also silent, the fan is intelligent controlled. And we also provide a “studio mode” for user. In the studio mode, the power is less and it is even more silent.

  • Yes, it works. The retrofit works in universal voltage from 100 – 240V AC.

  • Yes, we do offer tunable white version. See Reborn 200T.

  • Not at this moment.

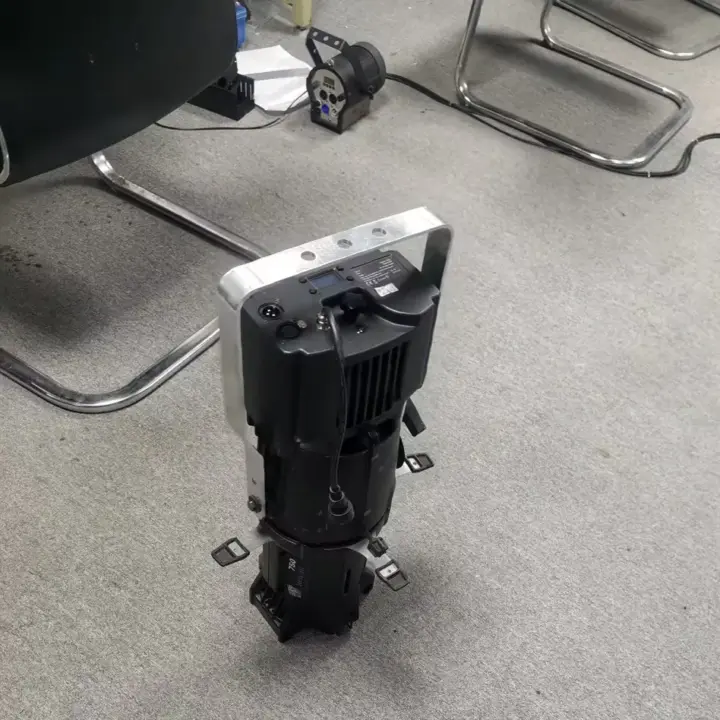

  • Unfortunately not, you can not tilt the S4 yoke through the LED retrofit. We do can offer a new designed yoke for your S4 if needed.

  • Yes, our fixture support wide range voltage which is 100 – 240V.

  • Yes, every unit have plug, and we’ll prepare according which type of plug you need.
