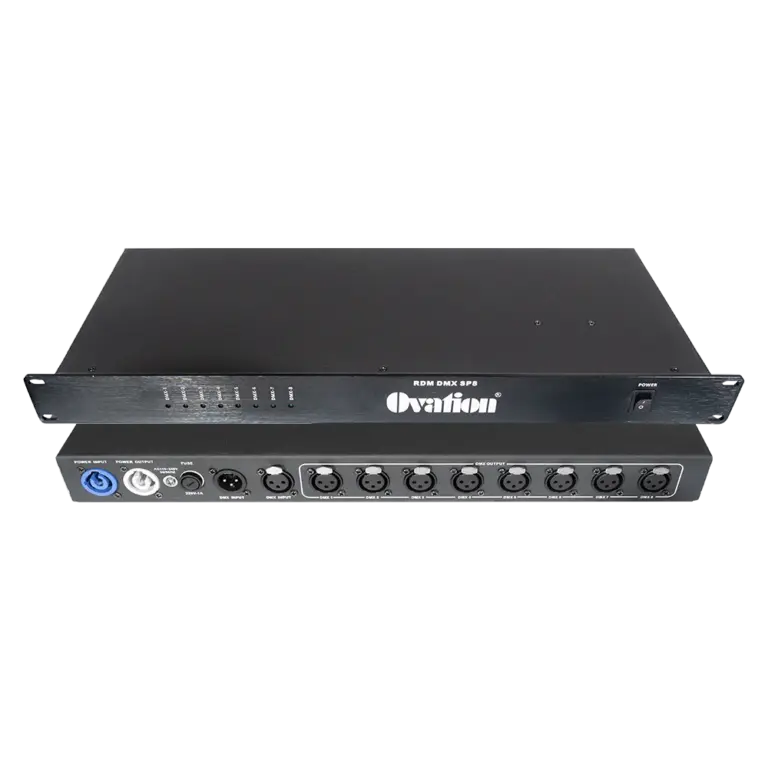

RDM DMX SP8

8 way DMX/RDM splitter

RDM DMX SP8 is abidirectional signal amplifier, specially designed for amplifying the control signal of the DMX512 control system, and distributing the output of the 8 channels. With two-way protocol function, the lamp information can be transmitted to the large lighting console with RDM function such as Tiger and MA.

Key features

  • 8 optically isolated XLR plugs (3-pin) for DMX output
  • 2 XLR (3-pin) for DMX input
  • Variable data routing capabilities for all DMX outputs
  • Serial connection possible
  • LED indication for functions
  • DMX Splitter / DMX booster operation possible
Datasheet
Order code: Categories: Light control

Specifications

Electrical

  • Power supply: Electronic auto-ranging
  • Input voltage range: AC100-240V, 50/60Hz
  • Power consumption: 15W @230V

Control

  • Control protocol: DMX 512, RDM

Connection

  • Power connection: PowerCon in &out
  • DMX512 inputs: 2 x 3-pinXLR female
  • DMX512 outputs: 8 x 3-pin XLR male

Construction

  • Housing: aluminium
  • Colour: Black
  • Environment: IP20

Physical

  • Size: 483 x 169 x 44.4mm(19 x 6.7 x 1.7in)
  • Package size: 565 x 215 x 85mm(22.2 x 8.5 x 3.3in)
  • N.W.: 2.4 kg(5.3lb)
  • G.W.: 2.9 kg(6.4lb)

Accessories

  • Included: Power cable, Manual
  • Optional: Safety cable, Clamp

*Specifications subject to change without notice.*
