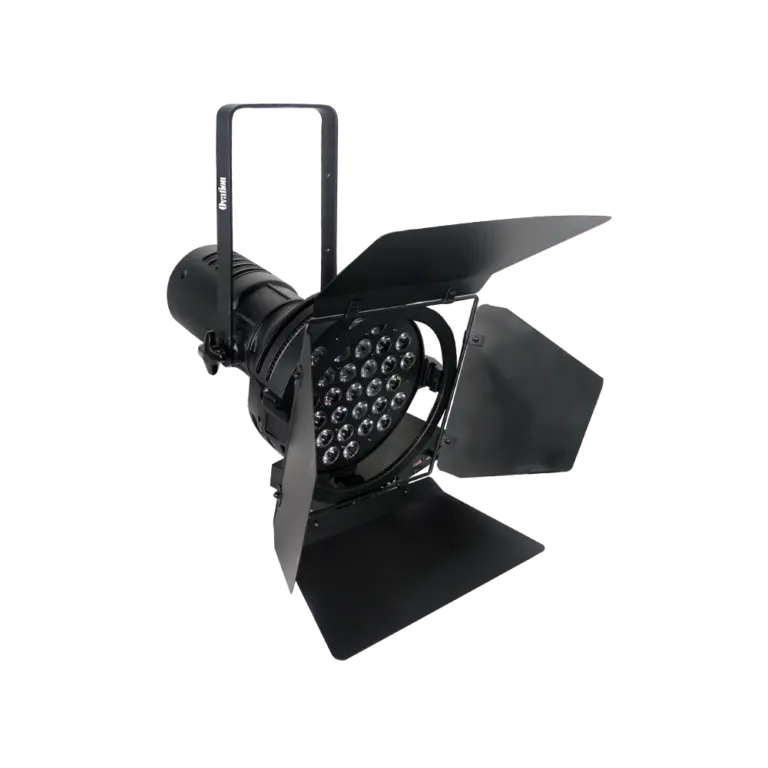

Power Par 350

31 x 10W LED power par for auto show

The Power par 350 is powered by 31x10W LED. With warm white, pure white LEDs selectable. Features extremely high brightness and comact body. It’s high power light output,even wash effect make this fixture a perfect replacement of the traditional 575W power par.

Key features

Datasheet

Specifications

Electrical

  • Power supply: Electronic auto-ranging
  • Input voltage range: AC100-240V, 50/60Hz

Typical power and current

  • 230 V, 50 Hz: 240W
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Source

  • Light source: 31 x 10W LEDs
  • Color temperature: 7000K (*also available in 2700K, tunable white, RGBW version)
  • LED lifetime: 50,000 hours avg.*
  • *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Effects

  • Dimming: 0 – 100% continuous dimming
  • Electronic Strobe
  • Beam angle: 25°

Control and Programming

  • Control mode: DMX512, Master-slave
  • DMX channels: 2 (single white), 4(tunable white)
  • Addressing and setting: Control panel with digital display and control buttons

Connection

  • Power connection: Power cable in & out
  • Signal connection: 3-pin XLR in & out

Construction

  • Housing: die-cast aluminium
  • Colour: Black
  • Environment: IP20

Thermal

  • Cooling: Forced ventilation with fans
  • Maximum ambient temperature: 40° C (104° F)
  • Minimum ambient temperature: 5° C (41° F)

Physical

  • Size: 507 x 269 x 269mm(19.9 x 10.6 x 10.6in)
  • Package size: 320 x 320 x 570mm(12.6 x 12.6 x 22.4in)
  • N.W.: 7.4kg(16.3lb), barndoor included

Accessories

  • Included: Power cable, Manual, Barndoor, Safety cable
  • Optional: Diffuser lens, Clamp

*Specifications subject to change without notice.*
