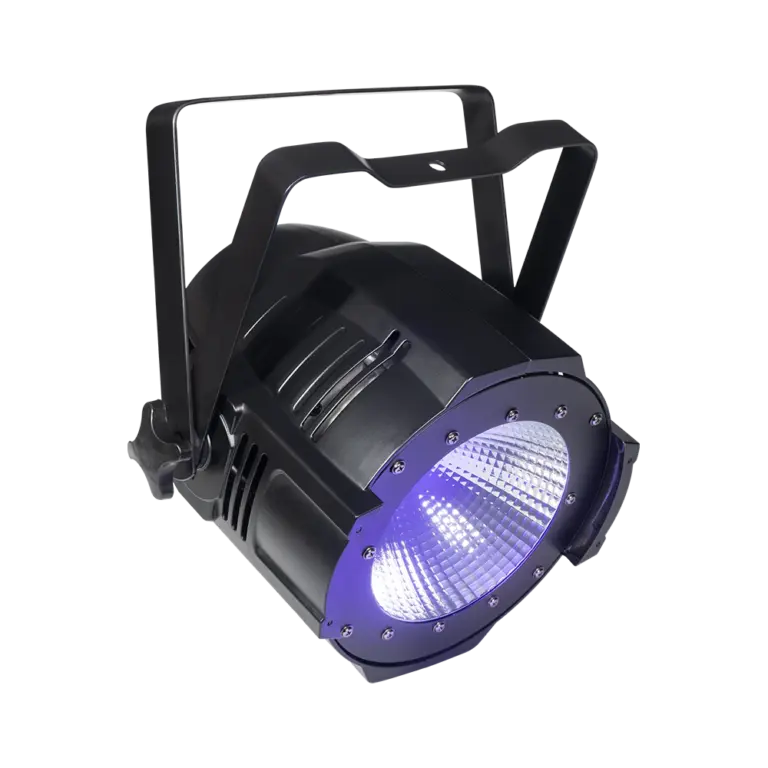

Pop Par 100 UV

100Watt UV black light

The PopPar 100 UV is a UV par light(black light), specially designed for parties, dances, theme parks. Wide range beam angle and compact design.

Key features

Datasheet

Product performance

Specifications

Electrical

  • Power supply: Electronic auto-ranging
  • Input voltage range: AC100-240V, 50/60Hz

Source

  • Light source: 100Watt UV LED
  • LED color: UV
  • LED lifetime: 50,000 hours avg.*
  • *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Effects

  • Dimming: 0 – 100% continuous dimming
  • Electronic Strobe
  • Beam angle: 100°

Control and Programming

  • Control mode: DMX512, Master-slave
  • DMX channels: 1/2/3/4
  • Addressing and setting: Control panel with digital display and control buttons

Connection

  • Power connection: Power cable in &out
  • Signal connection: 3-pin XLR in & out

Construction

  • Housing: die-cast aluminium
  • Colour: Black
  • Environment: IP20

Thermal

  • Cooling: Forced ventilation with fans
  • Maximum ambient temperature: 40° C (104° F)
  • Minimum ambient temperature: 5° C (41° F)

Physical

  • Size: 320 x 315 x 220mm(12.6 x 12.4 x 8.7in)
  • Package size: 250 x 250 x 360mm(9.8 x 9.8 x 14.2in)
  • N.W.: 3kg(6.6lb)

Accessories

  • Included: Power cable, Manual
  • Optional: Safety cable, Clamp

*Specifications subject to change without notice.*

Accessories

  • 4 leaf barndoor(none-rotatable))

    Pop Par 100uv 04
  • Safety cable

    Safety Cable silver
