Pioneer 200T Pro

200Watt tunable LED fresnel auto zoom

The Pioneer 200T PRO is a tunable white LED fresnel with zoom function. Color temperature 2700K – 6500K. The RDM-DMX compliant, degree motorized zoom along with it’s superior CRI make this fixture a good replacement for the traditional fresnels. Pioneer 200T Pro is both smaller and brighter than Pioneer 200 Zoom.

Key features

  • 175Watt WW + 175Watt CW constant output
  • 25+% brighter than the former Pioneer 200
  • 2700K to 6500K tunable white LED
  • Average CRI 98, R9≥90, TLCI up to 98
  • Soft and even wash effect

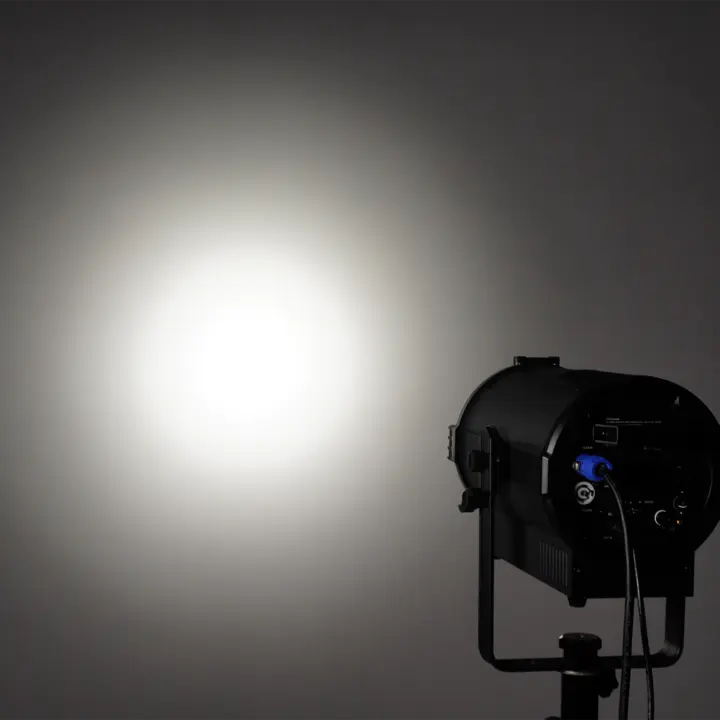

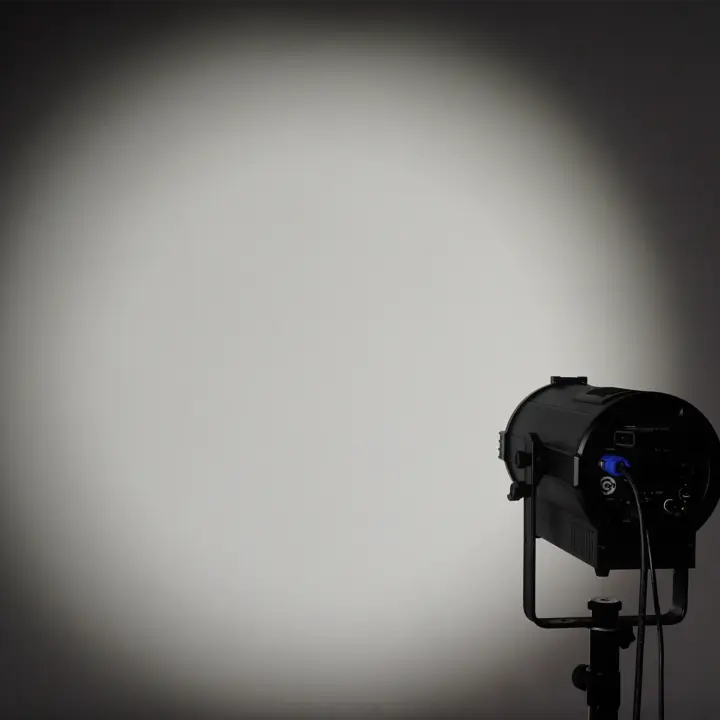

  • 10 - 55° motorized zoom
  • Smooth dimming
  • Dimmer frequency 1.2 - 20.0KHz
  • DMX, RDM control
  • Dimmer modes selectable
  • Intelligent fan, silent operation
Datasheet
Datasheet
Categories: LED fresnels, Theatre lights

Specifications

Physical

  • Length: 377 mm (14.8 in.)
  • Width: 282 mm (11.1 in.)
  • Height: 373 mm (14.7 in.)
  • Net Weight: 8 kg (17.6 lb.) barndoor included

Dynamic effects

  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 – 100%
  • Strobe and pulse effects: Variable speed and action, random strobe

Control and programming

  • Control options: DMX, RDM, stand-alone
  • DMX channels: 3/6
  • Dimmer frequency: 1.2 – 20.0 KHz
  • Dimmer curves: Standard/ Stage/ TV/ Architecture/ Theatre
  • DMX address setting: Control panel with LCD display or via RDM
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • RDM function available for addressing and settings

Optics

  • Light source: 175W warm white + 175W cool white LED
  • Color temperature: 2,700K – 6,500K tunable
  • Minimum LED lifetime: 50,000 hours
  • Zoom Range: 10° – 55° motorized zoom

Photometric data

  • 5600K 20160lux @5m 10°
  • CRI (Color Rendering Index) : Avg. >98 R9>90
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >92
  • TM-30 Rg (IES TM-30-15 Gamut Index): >98
  • TLCI (Television Lighting Consistency Index): >98
  • For more information, please refer to the datasheet

Construction

  • Housing: Stretch aluminum, engineering grade flame-retardant plastic
  • Color: Black

Installation

  • Mounting: Adjustable bracket
  • Environment: IP20 indoor use
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (0.7 ft.)
  • Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections

  • AC power in, thru: PowerCon in & out
  • DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

Electrical

  • AC power: 100–240 V nominal, 50/60 Hz
  • Power supply unit: Auto ranging power unit

Typical power and current

  • 230 V, 50 Hz: 1.2 A, 175W, PF 0.96
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a
  • deviation of +/- 10%.

Thermal

  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): -10° C (14° F)

Approvals

  • EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
  • EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC
  • 61000-4-2:2008

Included parts

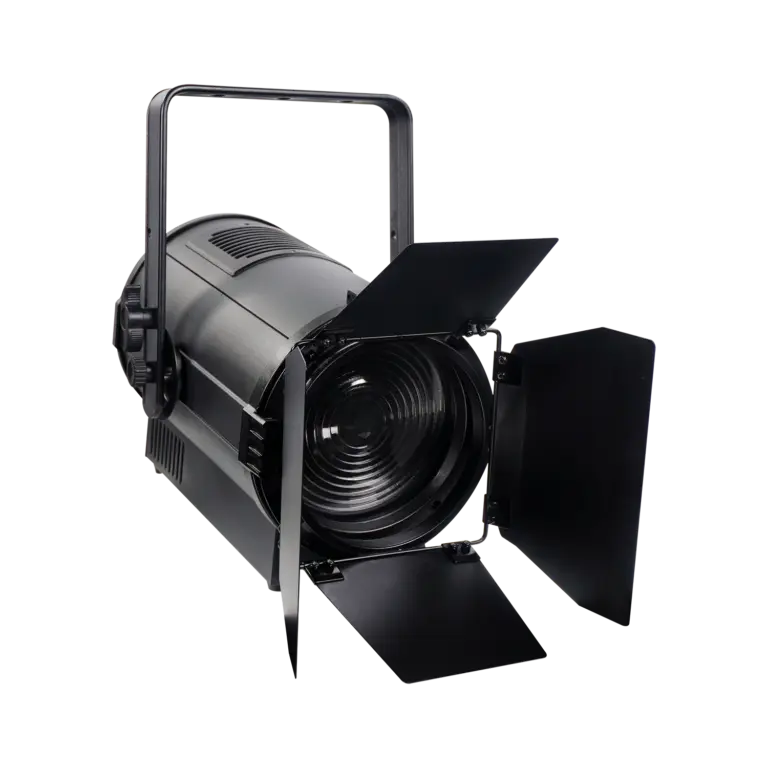

  • Rotating barndoor
  • Color frame
  • User manual

Optional parts

  • Mounting bracket
  • Safety cable

*Specifications subject to change without notice.*

Documents

Get a quote

Frequently asked questions

  • The Pioneer 200T Pro is both smaller and brighter than Pioneer 200 Zoom.

  • Yes, the single white version is called Pioneer 200 Pro, also we have Pioneer 200 Zoom.

  • Yes, we have RGBALC version – Pioneer 200C Pro.

  • Yes, barndoor is included in delivery.

  • Yes, color frame is standard part, included in every delivery.

  • Yes, our fixture support wide range voltage which is 100 – 240V.
