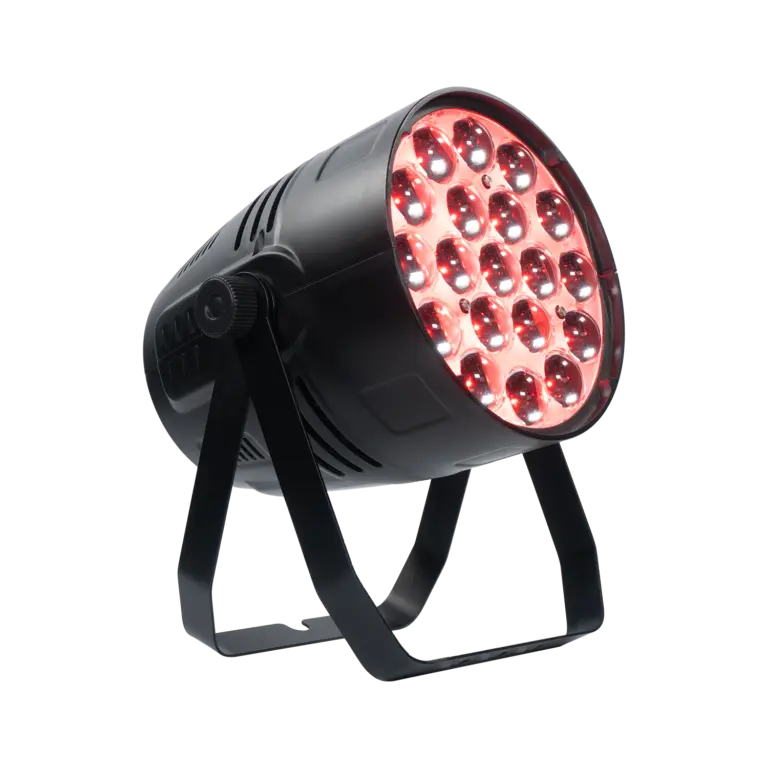

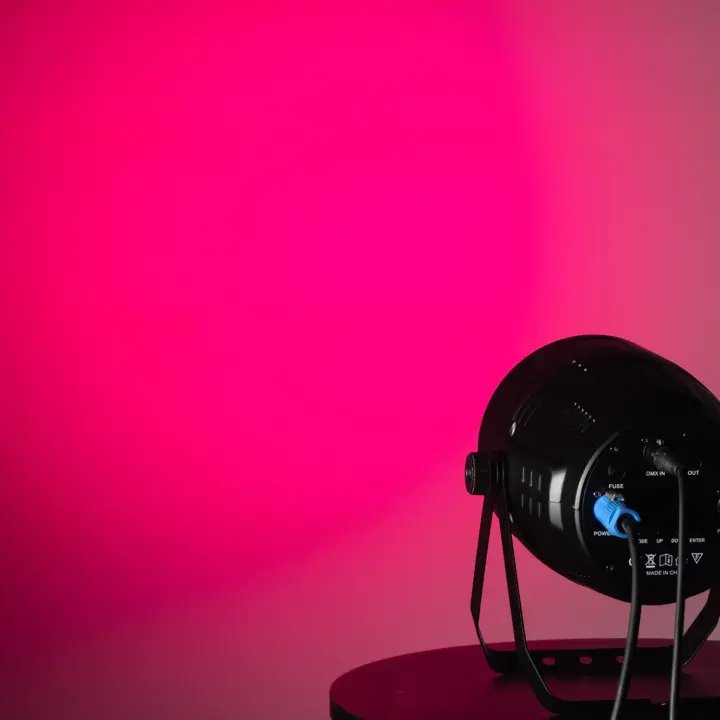

P19

19 x 15W RGBW LED zoom par

P19 is a 19pcs x 15Watt RGBW 4in1 LED par light with motorized zoom. The LEDs can be controlled in 3 separate zones. It’s full aluminum housing, 15° – 60° zoom range, high brightness output, light weight body makes it easy to handle and install. The fixture also come with powercon in & out connection and LCD display.

Key features

  • 19 x 15W 4in1 LEDs
  • RGBW LED color mixing
  • Motorized zoom from 15° - 60°
  • 3 separate LED zones controllable
  • Auto, master-slave, sound activate operation
  • Full aluminum housing
  • 5/10/16/32 DMX channels
  • Powercon in & out connection, fixtures linkable
  • Various built-in color marcos
  • Flicker free for TV and Film
  • Double bracket design
  • Control panel with LCD display
Datasheet
Datasheet
Categories: Par lights, Professional stage light

Product performance

Specifications

Electrical

  • Power supply: Electronic auto-ranging
  • Input voltage range: AC100-240V, 50/60Hz

Source

  • Light source: 19 x 15W 4-in-1 LEDs
  • LED color: RGBW
  • LED lifetime: 50,000 hours avg.*
  • *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Effects

  • Dimming: 0 – 100% continuous dimming
  • Strobe and pulse effects: Variable speed and action, random strobe
  • Color and Chase Macros
  • Color mixing: RGBW 4in1 LEDs
  • Three separate LED zones controllable
  • Zoom: 15° – 60° motorized

Control and programming

  • Control options: DMX 512, auto program, sound, master-slave
  • DMX channels: 5/10/16/32
  • DMX address setting: Control panel with LCD display
  • DMX compliance: USITT DMX512-A

Connection

  • AC power in, thru: PowerCon in & out
    DMX data in/thru: 3-Pin XLR in & out(5-Pin optional)

Construction

  • Housing: die-cast aluminium
  • Colour: Black
  • Environment: IP20

Typical power and current

  • 230 V, 50 Hz: 230Watt max.
  • Allow for a deviation of +/- 10%.

Thermal

  • Cooling: Forced ventilation with fans
  • Maximum ambient temperature: 40° C (104° F)
  • Minimum ambient temperature: 5° C (41° F)

Physical

  • Size: 280 x 215 x 330mm(11 x 8.5 x 13in)
  • Package size: 280 x 280 x 390mm(11 x 11 x 15.4in)
  • N.W.: 5kg(10lbs)

Accessories

  • Included: Power cable, Manual, Safety cable
  • Optional: Clamp

*Specifications subject to change without notice.*

Documents

Get a quote

Frequently asked questions

  • No, it is not individual controlled leds. But it can be controlled by 3 led zones.

  • No, it is indoor use only. For outdoor version, please check our EXT 740.

  • Sorry, we do not have white body version of P19 at this moment.

  • No, it have a fan with regular speed. Not super silent.
