Theatrical & Studio

Order Code:
63311

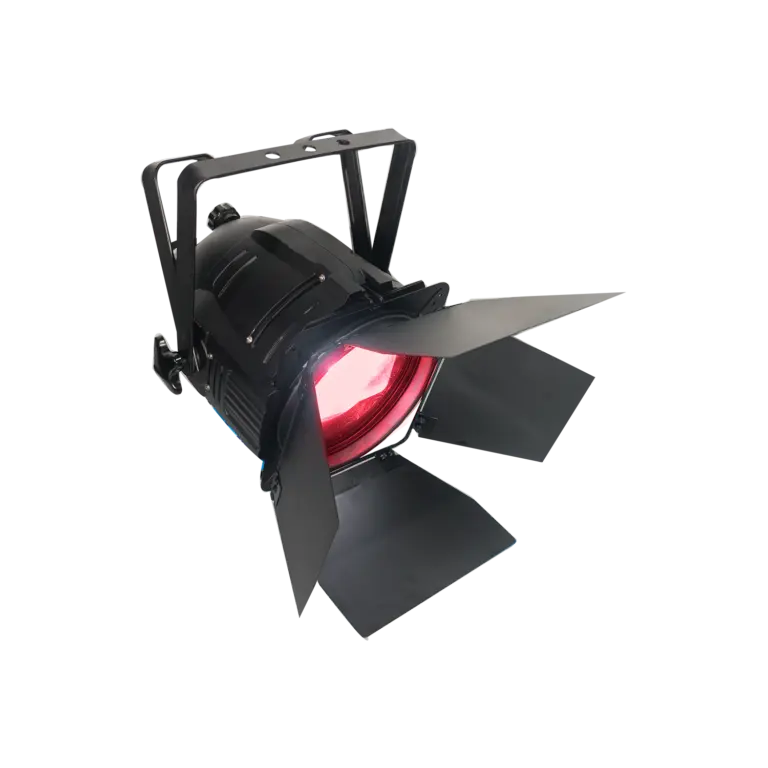

Par Master C1

Theatre par 150W RGBW with manual zoom

Powered by 150W RGBW LED, the Par Master C1 is designed to replace the traditional lamp par. Featuring manual zoom range from 25°-80°, durable LED life, compact design, flat and even field of light.

Key Features
  • 150W LED source
  • RGBW color mixing
  • Flat and even color mixing
  • Manually zoom, range from 25°-80°
  • DMX-RDM compliant
  • Video flicker free
  • Four leaf rotatable barndoor
Share to:

Video

* Can't watch the video? Please enable JavaScript in your browser.
Or CLICK HERE to watch on youtube

SPECIFICATIONS

PHYSICAL
Length: 290 mm (11.4 in.)
Width: 260 mm (10.2 in.)
Height: 305 mm (12 in.)
Net Weight: 4 kg (8.8 lb.)

DYNAMIC EFFECTS
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 – 100%
Strobe and pulse effects: Variable speed and action, random strobe

CONTROL AND PROGRAMMING
Control options: DMX, RDM, stand-alone
DMX channels: ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG(11CH)
Dimmer frequency: 1.2 – 24.0 KHz
Dimmer speed: 4 grade
DMX address setting: Control panel with LED display or via RDM
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
RDM function available for addressing and settings

OPTICS
Light source: 150W LED
LED color: RGBW
Color temperature: 3,000K - 8,000K optional
Minimum LED lifetime: 50,000 hours
Zoom Range: 25° - 80° manual zoom

PHOTOMETRIC DATA
Red 189lux @5m 25°
Green 331lux @5m 25°
Blue 87lux @5m 25°
White 473lux @5m 25°
Full on1050lux @5m 25°
For more information, please refer to the datasheet

CONSTRUCTION
Housing: Stretch aluminum, , engineering grade flame-retardant plastic
Color: Black

INSTALLATION
Mounting: Adjustable bracket
Enviroment: IP20 indoor use
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

CONNECTIONS
AC power in, thru: Dedicated power in
DMX & RDM data in/thru: 3-Pin XLR in & out(5-pin optional)

ELECTRICAL
AC power: 100–240 V nominal, 50/60 Hz
Power supply unit: Auto ranging power unit

TYPICAL POWER AND CURRENT
230 V, 50 Hz: 1.2 A, 135 W, PF 0.96
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)

APPROVALS
EU safety: EN IEC 60598-2-17:2018, EN 60598-1:2015+A1:2018,
EU EMC: EN 55015:2013+A1:2015, CISPR 15:2013+A1:2015, EN 61547:2009, IEC 61000-4-2:2008

INCLUDED PARTS
Rotating barndoor
Color frame
Safety cable
User manual

OPTIONAL PARTS
Clamp

*Specifications subject to change without notice.*

ACCESSORIES

DOWNLOAD

ItemTypeFileLanguageDownloadVersionUpdated
Leaflet - Par Master C1DatasheetpdfENDownload1.0June 8, 2020
Manual - Par Master C1ManualpdfENDownload1.1June 8, 2020
