In addition to the fluid reservoir also the battery can be screwed directly into the machine.

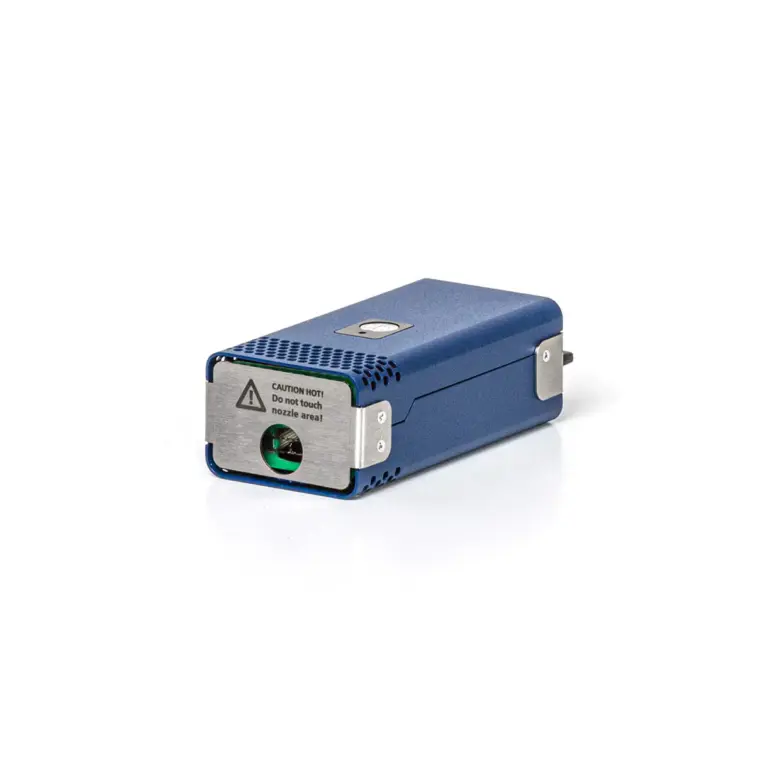

Thus, any external cable or fluid tube is not longer needed and the Tiny S consists of only one component.
|Procedure||Haze generator without compressor|
|Power requirement||1500 Watt|
|Voltage||available for: 230 V / 50 Hz, 120 V / 60 Hz, 90 V / 50 Hz|
|Warm up time||approx. 60 sec.|
|Fluid tank capacity||2 l for up to 50 hrs cont. output|
|Integrierter Lüfter||> 6000 l / min.|
|Haze density||adjustable in 99 steps|
|Temperature control||Microprocessor controlled|
|Overheating protection||Heater block with thermostat, pump with temperature switch|
|Control||DMX 512, 0 - 10 V analog|
